Quick Details
-
OS:
-
ANDROID & IOS
-
Screen Type:
-
None
-
Warranty:
-
24 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sirius, Sirius
-
Model Number:
-
SR-C005-4G
-
Product Name:
-
4G OBD GPS Tracking Device
-
Model Name:
-
SR-C005-4G
-
Network:
-
2G/3G/4G
-
Material:
-
ABS
-
Interface:
-
OBD Diagnosis
-
Vehicle Information:
-
Available
-
SIM Card:
-
Micro SIM Card
-
Size:
-
58*45*22mm
-
Weight:
-
54g
Quick Details
-
Resolution:
-
None
-
Function:
-
Remote Control, Positioning & Tracking & Telematics
-
Placement:
-
OBD
-
OS:
-
ANDROID & IOS
-
Screen Type:
-
None
-
Warranty:
-
24 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sirius, Sirius
-
Model Number:
-
SR-C005-4G
-
Product Name:
-
4G OBD GPS Tracking Device
-
Model Name:
-
SR-C005-4G
-
Network:
-
2G/3G/4G
-
Material:
-
ABS
-
Interface:
-
OBD Diagnosis
-
Vehicle Information:
-
Available
-
SIM Card:
-
Micro SIM Card
-
Size:
-
58*45*22mm
-
Weight:
-
54g

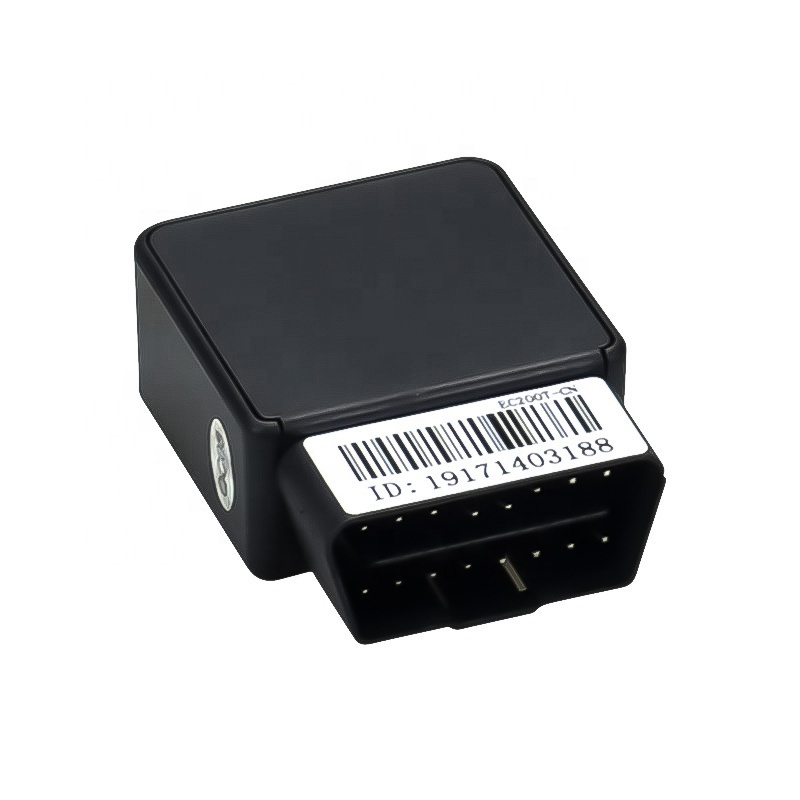

Customized Telematics GPS Tracker Real Time Diagnosis OBD2 Car GSM/GPRS/GPS Tracking Device
Product Description
Positioning Module
|
> Position
|
GPS | Beidou | LBS
|
|
> Module
|
ZK Micro AT6558D
|
|
> Cold Start
|
32s On Averg.
|
|
> Hot Start
|
1s On Averg.
|
|
> Tracking Sensitivity
|
-165dBm
|
|
> Capture Sensitivity
|
-160dBm
|
|
> Antenna
|
Built-in Ceramic
|
|
> GPS Freq.
|
L1,1575.42MHz C/A Code
|
|
> GPS Accuracy
|
Within 5m
|
|
> LED Indicator
|
Blue
|
|
> Sensor
|
Three-Axis
|
Communication Module
|
> Network
|
4G | LTE/WCDMA/GSM
|
|
> Module
|
QUECTEL EC20
|
|
> Band
|
| LTE/4G: FDD-LTE:B1/B3
TDD-LTE: B38/ B39/ B40/ B41 | 3G: WCDMA: B1 TD-SCDMA: B34/B39 EVDO/CDMA2000 1x: BC0 | GSM/EDGE/2G: B3/B8 |
|
> Antenna
|
Built-in
|
|
> SIM Card Slot
|
Support
|
|
> SIM Card Type
|
Micro SIM Card
|
|
> SIM Card Size
|
15*12*0.76mm
|
|
> LED Indicator
|
Yellow
|
Packaging & Packing
|
> Packaging Size
|
140*80*30mm
|
|
> Packing Method
|
50pcs/CTN
|
|
> Carton Size
|
33*33*28cm
|
|
> NW Per Carton
|
7.60kg
|
|
> GW Per Carton
|
7.95kg
|
|
> Volume Per Carton
|
0.0305m³
|
|
> Packing Contents
|
- Standard
| SR-C005-4G Device * 1 | Retail Packaging * 1 | User Manual * 1 |
Specification
|
> Material
|
ABS
|
|
> Power Supply
|
Vehicle Battery
|
|
> Working Voltage
|
DC 9V - 35V
|
|
> Working Current
|
12V / 73.6mA
|
|
> Sleep Current
|
12V / 38.2mA
|
|
> Working Temp
|
-20℃ - 75℃
|
|
> Storage Temp
|
-30℃ - 80℃
|
|
> Working Humidity
|
5% - 95%
|
|
> Backup Built-in Battery
|
3.7V/ 120mAh
|
|
> Color
|
Black Only
|
|
> Net Weight
|
54g
|
|
> Product Size
|
58*45*22mm
|
