Equipped with folding mast, simple, durable, cost saving and easy to repair.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
7297x3200x1763mm
-
Weight:
-
38500 KG
-
Marketing Type:
-
New Product
-
Drilling Diameter:
-
600-1600mm
-
Drilling Depth:
-
50/40m
-
Mobility:
-
yes
-
Product Name:
-
rotary drilling rig
-
Quality:
-
High-Quality
-
Brand:
-
Early Bird
-
OEM:
-
yes
-
hydraulic system pressure:
-
300bar
-
Rotary Drive Torque:
-
160kn-m
-
Rotary Drive Rotation speed:
-
5/30rpm
-
Keyword:
-
folding mast structure
-
Main windlass:
-
original imported hydraulic pressure motor from Italy
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Early Bird
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
7297x3200x1763mm
-
Weight:
-
38500 KG
-
Marketing Type:
-
New Product
-
Drilling Diameter:
-
600-1600mm
-
Drilling Depth:
-
50/40m
-
Mobility:
-
yes
-
Product Name:
-
rotary drilling rig
-
Quality:
-
High-Quality
-
Brand:
-
Early Bird
-
OEM:
-
yes
-
hydraulic system pressure:
-
300bar
-
Rotary Drive Torque:
-
160kn-m
-
Rotary Drive Rotation speed:
-
5/30rpm
-
Keyword:
-
folding mast structure
-
Main windlass:
-
original imported hydraulic pressure motor from Italy

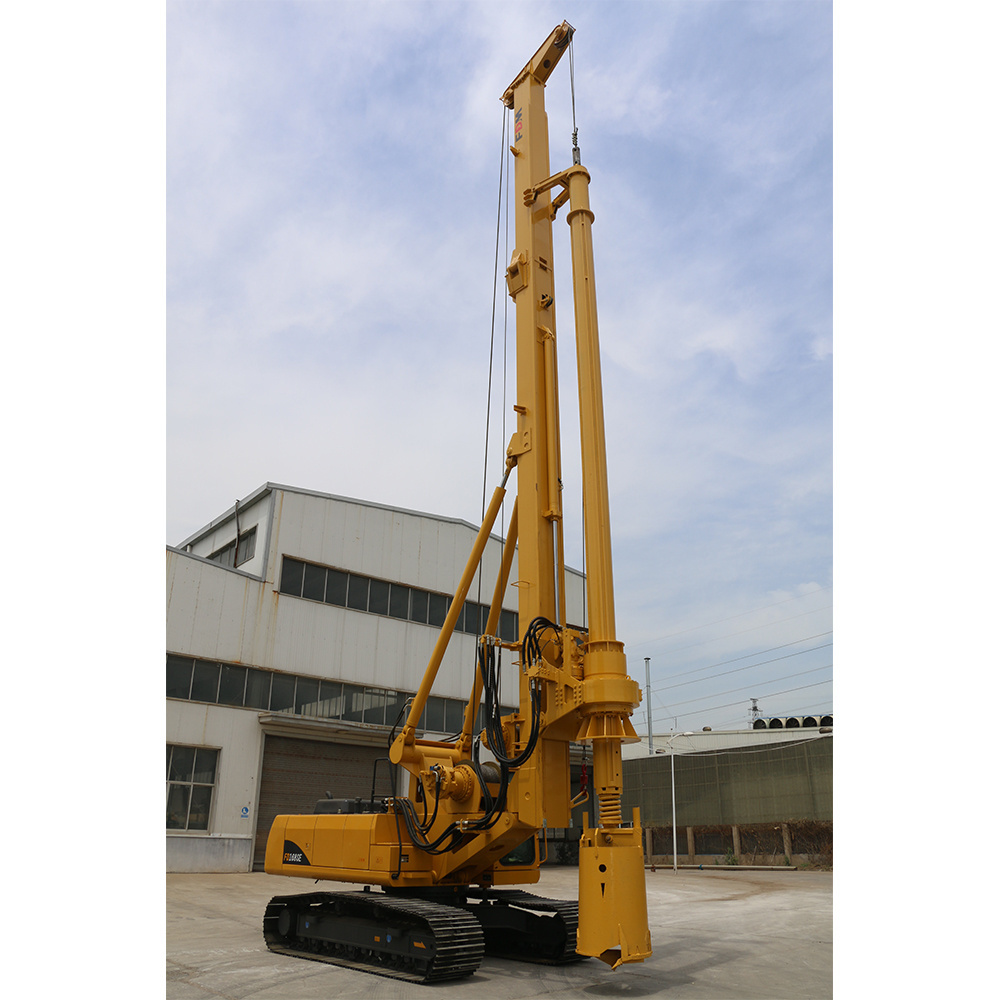

50m 40m Construction Mine mini equipment machine rotary boring drilling rig percussive drill rig
|
Type
|
|
EB168SE
|
|
|
Drilling diameter
|
|
600-1600mm
|
|
|
Max drilling depth
|
|
50/40m
|
|
|
Overall measurement
|
Working dimensions
|
17630mmX3200mmX7297mm
|
|
|
|
Transport dimensions
|
14727mmX3200mmX3325mm
|
|
|
Rotary drive
|
Torque
|
160kn.m
|
|
|
|
Rotation speed
|
5/30rpm
|
|
|
Crowd cylinder
|
Max.push
|
120kn
|
|
|
|
Max.pull
|
100kn
|
|
|
|
Max.stroke
|
3000mm
|
|
|
Main winch
|
Max.line pull
|
140kn
|
|
|
|
Max.line speed
|
70m/min
|
|
|
Auxiliary winch
|
Max.line pull
|
60kn
|
|
|
|
Max.line speed
|
50m/min
|
|
|
Engine
|
Rated power
|
133KW
|
|
|
|
Type
|
ISUZU
|
|
|
Electronic Managerment System
|
Long distance montitor system
|
Available
|
|
|
|
Drilling record system
|
Available
|
|
|
|
On car printer
|
Available
|
|
|
Hydraulic system pressure
|
|
300bar
|
|
|
Chassis
|
Chassis modality
|
Customized
|
|
|
|
Max.traveling speed
|
3km/h
|
|
|
|
Min.ground clearance
|
460mm
|
|
|
|
Windth of track shoes
|
800mm
|
|
|
Leveling around
|
Free adjustment forward/backward
|
0-100℃
|
|
|
|
Free adjustment left/right
|
±3℃
|
|
|
|
Machine Weight
|
38500kg
|
|
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll send you photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q: How about your delivery time?
A: Generally it takes 7-10 workdays after we received your advance payment. The specific delivery time depends on the items and the quantity.
Q: What is the warranty?
A: We provide a 1-year warranty (except for the hammer) for the machines, during this period all broken accessories can be changed for a new one. And we provide instructions for machine install and operation.
Q: What is your terms of packing?
A: Generally we use standard wooden case for LCL goods, and fixed well for FCL goods.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. And we will send you the inspection report for every machine.
Q: Do you provide wear parts?
A: Yes, all kind of wear parts are available.
