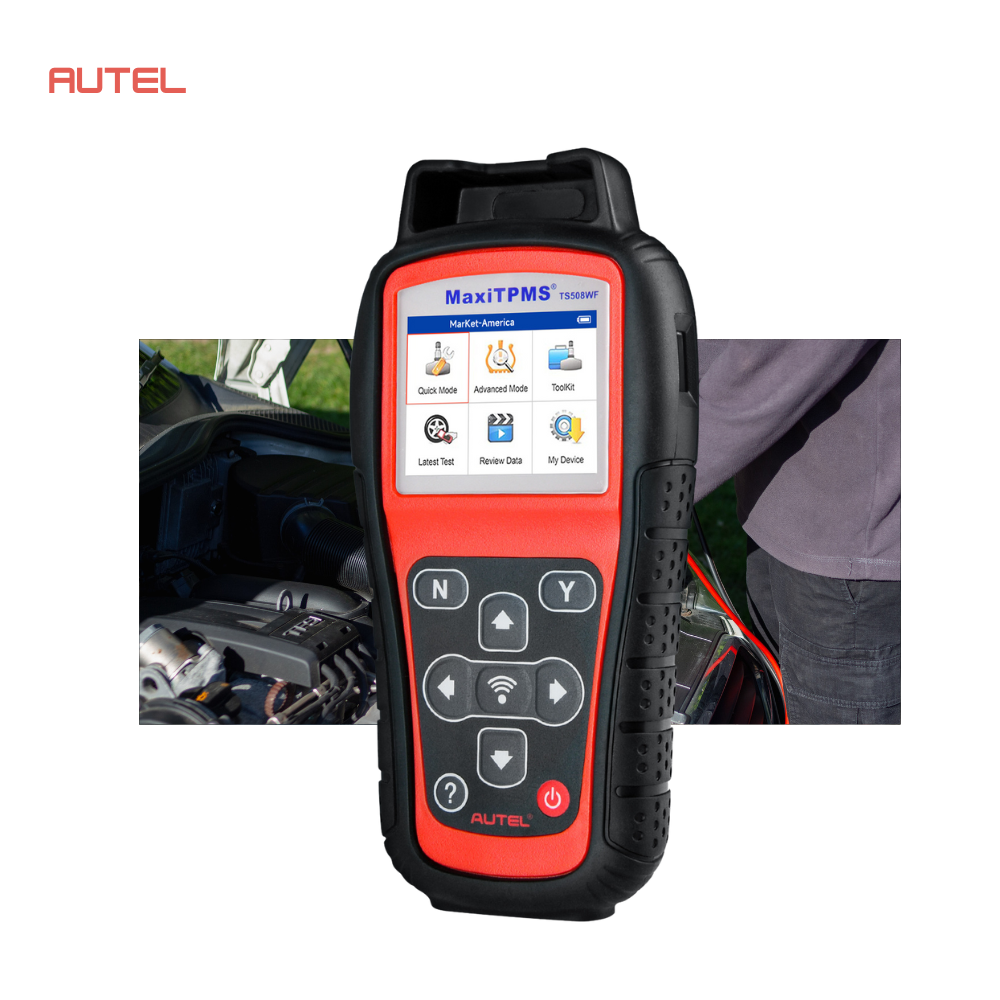

Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF
Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF
Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF
Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF
Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF
Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF
Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF
Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF

Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF

FOB Reference Price: Get Latest Price
≥1 Sets
US $259
≥2 Sets
US $249
≥5 Sets
US $239
≥10 Sets
US $229
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Applicable Models:
OBD2, Universal
Place of Origin:
Guangdong, China
Brand Name:
AUTEL, Autel
Model Number:
TS508WF, MaxiTPMS TS508WF
Warranty:
12 Months, 1 year
Tire Sensor DTCs:
315MHz/433MHz
Language:
Support Multi-language
Application:
12V Gasoline Vehicles
Quality:
100% Original Brand
Screen:
2.3" Color Display 320x240
Battery:
3200mAh Lithium-polymer Battery

Quick Details

Car Fitment:
Ford, Volkswagen, Mercedes Benz, bmw, Audi
Voltage:
12V
Power:
9W
Applicable Models:
OBD2, Universal
Place of Origin:
Guangdong, China
Brand Name:
AUTEL, Autel
Model Number:
TS508WF, MaxiTPMS TS508WF
Warranty:
12 Months, 1 year
Tire Sensor DTCs:
315MHz/433MHz
Language:
Support Multi-language
Application:
12V Gasoline Vehicles
Quality:
100% Original Brand
Screen:
2.3" Color Display 320x240
Battery:
3200mAh Lithium-polymer Battery
Autel tpms programmer ts508 wifi tire pressure monitoring system tire sensor maxi tpms TS508WF obdii
Product Description
Autel MaxiTPMS TS508WF Kit is the upgraded version of the old model TS508K/ TS508/ TS501/ TS408. TPMS Relearn Tool TS508WF Kit can be updated to newest firmware via both WIFI connection and USB. It can possesses powerful functions such as activating sensors, programming sensors, reading/clearing DTCs, relearning sensors, etc. “Quick Mode” and “Advanced Mode” can finish the TPMS work efficiently and save your time.
Wi-Fi Update :

The TS508WF provides two methods for updating: Update by Wi-Fi or by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment. Autel TS508 Tire Sensor Programmer comes with LIFETIME FREE software updates for continuously fast-growing vehicle coverage.

Two TPMS Service Modes:

Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

Quick Mode/ Advanced Mode Comparison:

Quick Mode:
➣ Activate All Known TPMS Sensors
➣ Read Sensor ID, Temperature, Pressure
➣ Read Sensor Battery Condition
➣ On-Tool OE Sensor Information
➣ Program MX-Sensor With 3 Programming Options
➣ Batch Program 1-16 MX-Sensors

Advanced Mode:
➣ Same TPMS Features as Quick Mode
➣ TPMS Status Screen - View System Faults
➣ Read & Clear TPMS DTCs
➣ On-Tool DTCs Description
➣ Program MX-Sensors by Copying ECU Sensor IDs
➣ On-Tool Relearn Procedure Guide
➣ Widest Vehicle Coverage For OBD Relearn
➣ Tire Pressure Placard Value Reset

Program Autel MX-Sensors:

Autel TS508 TPMS programming tool support both DIYers and auto technicians to program sensor data to Autel MX-sensors(315/433MHz) in no time.

It comes with 4 TPMS sensor programming options:
➣ Copy By Activation: Requires activate the original sensors first.
➣ Copy By Manual Input: You can manually input the original ID.
➣ Auto Create 1-16: The sensors makes it possible to program up to 16 sensors simultaneously.
➣ Copy By OBD: You should connect OBD cable to retrieve the sensor ID from the ECU.

NOTE: TS508WF can program Autel MX-sensors only. It can NOT program other brand sensors.
3 Ways of TPMS Sensors Relearn:

Autel TS508WF TPMS Relearn Tool can relearn all known sensors (both OEM and aftermarket) on TPMS enabled vehicles(American, European and Asian) to the vehicle’s ECU.

It can perform 3 ways of TPMS sensors relearning:
➣ Stationary Relearn: Requires the vehicle be placed in the “Learn Mode”.
➣ Automatic Relearn: For some vehicles, can be completed by driving.
➣ OBD Relearn: Directly writes TPMS sensor IDs to the TPMS module via the OBD connector.
(Note: TS401& TS408 not available with OBD Relearn)
Activate/ Reset All Known TPMS Sensors & Read/Clear TPMS DTCs:

➣ Activate/Reset All Known TPMS Sensors: Autel TS508WF has TPMS diagnose function. It is used to find out TPMS related problems. You can check sensor-related problems, deflation in the tires and the rotation of wheels.

➣ TPMS Status Screen is Also Excellent, main Feature also Reflects 4 points:Read ECU sensor ID; Check sensor ID and ECU ID matching condition; Read DTCs from ECU and erase DTCs; View DTCs detail description.

➣ Read/Clear TPMS DTCs: TS508WF can read or clear TPMS DTCs, on-screen DTC description to perform DTC Lookup. It can help you find out problems with TPMS system faster.
Print Data Function:
Autel TS508WF TPMS diagnose Tool has Print Data function allows printing of TPMS DTC recorded data. Connect the tool and the computer with the supplied USB cable. Saved and view TPMS DTCs, tire type and pressure information and print it out via PC for further analysis. This function can help users analyze and save data more conveniently.

Check Key Fob:
When your remote key starts to fail or stop working, you can directly use the TS508WF in the tool library to test the signal strength of the remote key through WIIF or USB link, which is simple to use but quickly obtains results. Save your time by not having to go to the auto repair shop.
Supports 13+ languages, without IP restrictions.
Specification
AUTEL TS508WF
Display
TFT color display (320 x 240 dpi)
Power
3.7 V Li-polymer battery; 3200 mAh
Operating Temp.
0°C to 50°C (32°F to 122°F)
Storage Temp.
-20°C to 70°C (-4°F to 158°F)
Dimensions
215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight
0.39 kg (0.86 lb.)
Connectivity
Mini USB 2.0 x 1
Software Update
Free
Weight
35g (0.07 lb.)
Packing List
TS508WF Package List:
1pc x TS508WF
1pc x User manual
1pc x OBD II cable
1pc x USB cable
1pc x Carry case
1pc x AC Adapter
