Smart and portable fuel nozzle RFID reader for Fuel Dispenser

Smart and portable fuel nozzle RFID reader for Fuel Dispenser

FOB Reference Price: Get Latest Price

≥2 Pieces

US $297

≥101 Pieces

US $270

≥201 Pieces

US $255

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Mingte

Product Name:: Wireless Nozzle Reader MT130

Reading Distance:: 150mm

Working frequency:: 433MHz

Power Supply:: DC4.2V

Weight:: 350g

Remark:: With low power indication

Quick Details

Frequency:: 433 MHz

Protocol:: other

Place of Origin:: Guangdong, China

Brand Name:: Mingte

Product Name:: Wireless Nozzle Reader MT130

Reading Distance:: 150mm

Working frequency:: 433MHz

Power Supply:: DC4.2V

Weight:: 350g

Remark:: With low power indication

What Mingte Focused on and Supply

Overview

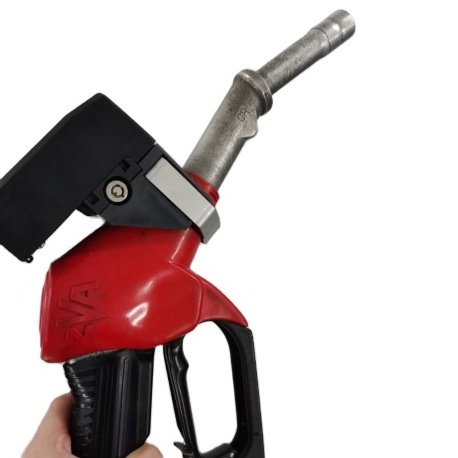

The Wireless Nozzle Reader MT130

The wireless nozzle reader MT130 is applied to Automatic vehicle refueling identification systems based on RFID .

The Automatic Vehicle Identification System(AVI System), includes wireless nozzle reader MT130, wireless receiver MT124 and vehicle tag MT125 , which is

widely used in oil company, fleets, fuel/CNG station and service provider, ect.

Products Description

Features

* Reliable, secure and robust, easy to install, service & upgrade

* Shock-proof, water-proof and explosion-proof(certified)
* Supports RFID/Contactless tag identification
* Supports wireless communication
* With low power indication
* With built-in and removable battery
* Designed for Fuel & CNG stations

Specifications
Reading Distance	≤150mm(Working power 4.2V)
Working Temperature	-20-+55℃
Impact Resistance Standard&Grade	Standard: GB/T1579 5.20.4 Grade: IK10
Wireless Communication Frequency	433MHz
Power Supply	DC4.2V±5%
Weight	Approx 350g
Remarks	With low power indication for battery

Applications

Accessories

Charger*1

Key*2

Skidproof rubber*2

Packaging

Single package size: 14.5*10.5*9cm

Single item gross weight: 0.5kg
Carton package, 60 units in one carton

Matching Products

The wireless nozzle reader MT130 works with wireless receiver MT124(2 types) and customized vehicle tag MT125, click the picture to the corresponding links.

MT124-100

Can be connected with 16 nozzle readers

Mingte Customized Vehicle Tag:

MT124-200(smaller one)

Can be connected with 4 nozzle readers

Application sites

* Fuel Dispensers
* CNG Dispensers
* Fuel & CNG Station

* Fuel & CNG Company

* Fleets
* Service Provider

Our Services

1.MINGTE provide high-quality products to customers (Every product will pass three times strict test before delivery)
2.MINGTE provide communication Protocol,SDK for customers to develop
3.MINGTE provide technical support to customers when they met problems in develop processing
4.MINGTE provide OEM products to customers
5.MINGTE provide a high efficiency team and pleasure purchase process to customers
