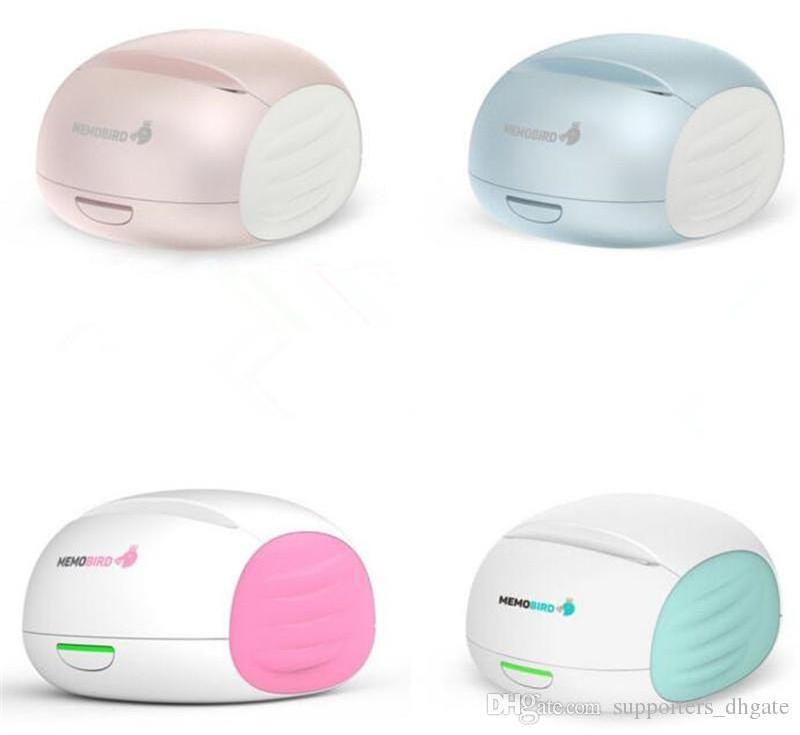

JEPOD Memobird G2 Internet-Enabled Paper Messenger and Note Printer Wifi Portable Printing Wireless Pocket Mini Thermal Printer

Instruction Manual
There are two print modes of MEMOBIRD G2 Printer: Cloud Mode and Local Mode.
Cloud mode should be connect with WIFI
Local mode doesn't need extra WIFI connect, you can use it with the WIFI of this printer, but need to setup in cloud mode when you use it at the first time.

About Cloud Print Mode:
Step 1: Connect with the power, then the printer will show green light.
Step 2: Open the WIFI of your mobile phone.
Step 3: Scanning the QR code (on the bottom of this manual) to download the APP, then create a new account.
Step 4: Check the switch on the bottom whether has cloud icon like
Step 5: Follow the APP prompts, double click the keypad and scanning the QR code to binding the new equipment.
Step 6: Follow the APP prompts, press the keypad 6 seconds to configure WIFI.

About Local Mode:
Step 1: Turn off the bottom switch of MEMOBIRD Printer, make sure there is no cloud icon shown on the device.
Step 2: Follow the prompts of the paper note, then connect with the WIFI of this printer.

Please note
. Please use original charger.
. This printer doesn't support 5G network and authenticate network.
. Please don't touch the print head and the blade of this printer by your hands.
. Suggests you to turn off the date traffic when you use Local Mode.
. Double click the key: Print diagnostic report.
. Press the key about 6 seconds: Configure WIFI.
. Bottom switch: Convert cloud mode or local mode.
. Orange Light: Important information (Press the key to resume).
. Red Light: Overheating or out of paper.
. Blue Light: Local mode.
. Green Light (constant): Normal working state.
. Green Light (shining): Printing mode/Network connect

Data:
Power consumption: ≤ 10w
Weight: 250g
Operating temperature: 0-50℃
Printing speed: 70mm/s
Working power supply: DC5V/2A
Communication method: Internet connection and local connection
Consumables: thermal printing paper(width - 57mm)

Print parameters: Support Download Logo trademark Print
Chinese characters: GB Store a two-point support 18030 24x24 large font support Taiwan, Hong Kong Traditional
Spanish: ASC11 12 × 24 points
Extended Character Table:OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/East Europe/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/ Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai

Features

1.Suitable for all types of commercial retail POS systems
2.Light in weight and smart in shape
3.High-quality printing and low cost
4.Low noise and high-speed printing
5.Support cash drawer driver
6.Easy for paper installation, Easy maintenance and excellent structure
7.Low power consumption and low operating costs ( No Ribbons or Ink cartridges )
8.Support multi languages
9.12 months warranty
10.Easy set up, easy operating
11.Excellent after-sale service

Guangzhou JEPOD Electronic Technology Co., Ltd is a high-tech enterprise which specializes in R&D, manufacturing,marketing of thermal printers and barcode scanners, Pos system.
Our company products have already been widely applied in a lot of fields including commercial retails, caterings, hotels, industrials, logistics, etc.
Here we have advanced development laboratories and production facilities,highly professional manufacturing team ,and a number of senior R&D engineers.

-OEM & ODM: We have professional design team(OEM & ODM available)
-Quality Inspection: Each product passed strict QC 100% high quality guaranteed.-
-Professional R & D Team: We are professional thermal printer and bar code equipment research and development, production, sales service in one of the high-tech company.
-Excellent Customer Service: We have excellent team to offer quick and considerate services.
-Certification: CE/ CCC/ FCC / CB / ISO9001:2008 Certification
-Export packing: Standard cartoon package, safe packing
-Warranty: 12-18 months of warranty
