Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BKTECH
-
Dimension(L*W*H):
-
592*592*600
-
Weight:
-
2 KG
-
R.H.:
-
100%
-
Flammability:
-
UL900-CLASS2
-
Frame:
-
Galvanized Steel or Aluminum Frame
-
Size:
-
Could be customized
-
Filtration class:
-
G4/F5/F6/F7/F8/F9
-
Number of Pocket:
-
6 pockets
-
Application:
-
Air Conditioning
-
Payment Term:
-
T/T,L/C, Western Union
-
Function:
-
Collect dust
-
Certification:
-
ISO9001
Quick Details
-
Core Components:
-
Filter media
-
Efficiency:
-
85%-95%
-
Porosity:
-
1μm
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
BKTECH
-
Dimension(L*W*H):
-
592*592*600
-
Weight:
-
2 KG
-
R.H.:
-
100%
-
Flammability:
-
UL900-CLASS2
-
Frame:
-
Galvanized Steel or Aluminum Frame
-
Size:
-
Could be customized
-
Filtration class:
-
G4/F5/F6/F7/F8/F9
-
Number of Pocket:
-
6 pockets
-
Application:
-
Air Conditioning
-
Payment Term:
-
T/T,L/C, Western Union
-
Function:
-
Collect dust
-
Certification:
-
ISO9001

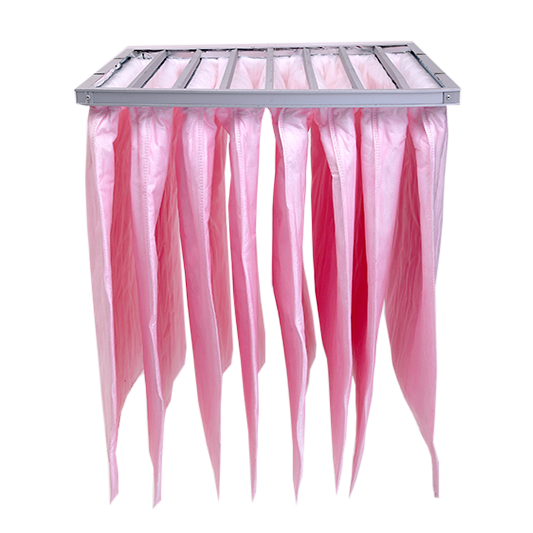

Multi pocket filter, bag filter for Air-Conditioning, air filter bag
Bag Filters is a cost-effective and economical solution for high efficiency filtration. The Quality Bag Filters features a non-carcinogenic, microfiber polypropylene media that resists moisture, microbial growth and abrasion. Because it is synthetic, the filter media will not shed glass particles into the filtration system.
Quality Pocket Bag Filters are best suited for offices, paint booths, refineries, computer rooms, hospitals, schools and general industrial applications.
Quality Bag Filter s feature :
- Microfiber polypropylene media
- Galvanized steel or Aluminum frame
- Adhesive seals around pockets and header
- Max. Temp.: 150 F continuous, 200 F peak
- Resistant to 100% R.H.
- Flammability: F-1(DIN53438); UL 900, Class 2
- High efficiency
- Low resistance
- Light weight
- Easy installation
Performance parameters:
|
Class |
Size (mm) H*W*D |
Bags |
Filtration area(m²) |
Rated air flow(m 3 /h) |
Initial resistance (Pa) |
Reconmend final resistance (Pa) |
|
35% ( G4 ) |
287*592*550 |
3 |
1.86 |
1700 |
15 |
350 |
|
592*592*550 |
5 |
3.12 |
3400 |
20 |
||
|
592*592*600 |
6 |
3.78 |
3400 |
20 |
||
|
45% ( F5 ) |
287*592*550 |
3 |
2.12 |
1700 |
20 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
30 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
30 |
||
|
65% ( F6)
|
287*592*550 |
3 |
2.12 |
1700 |
45 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
80 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
80 |
||
|
85% (F7) |
287*592*550 |
3 |
2.80 |
1700 |
100 |
400 |
|
592*592*550 |
5 |
4.78 |
3400 |
125 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
125 |
||
|
95% ( F8) |
287*592*550 |
3 |
2.80 |
1700 |
110 |
450 |
|
592*592*550 |
5 |
4.78 |
3400 |
130 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
130 |
Customized Sizes are available!
