- Product Details
- {{item.text}}
Quick Details
-
Span:
-
4.2*4.2m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ORIEMAC
-
Weight (KG):
-
32000 kg
-
Product name:
-
ORIEMAC Brand Best Price 2ton Mini Mobile Self Erecting Tower Crane
-
Color:
-
Yellow
-
Overall length:
-
14.5m
-
Overall width::
-
2.3M
-
Overall height:
-
3.7m
-
Power Supply:
-
380V/50HZ
-
Total Power:
-
23.1kw
-
Balance Weight:
-
movable, 7.5t
-
Transportation:
-
one 45HC container or bulk or roll-rol
-
Certification:
-
CCC CE ISO
Quick Details
-
Rated Loading Capacity:
-
1t
-
Max. Lifting Height:
-
25M
-
Application:
-
construction
-
Span:
-
4.2*4.2m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ORIEMAC
-
Weight (KG):
-
32000 kg
-
Product name:
-
ORIEMAC Brand Best Price 2ton Mini Mobile Self Erecting Tower Crane
-
Color:
-
Yellow
-
Overall length:
-
14.5m
-
Overall width::
-
2.3M
-
Overall height:
-
3.7m
-
Power Supply:
-
380V/50HZ
-
Total Power:
-
23.1kw
-
Balance Weight:
-
movable, 7.5t
-
Transportation:
-
one 45HC container or bulk or roll-rol
-
Certification:
-
CCC CE ISO

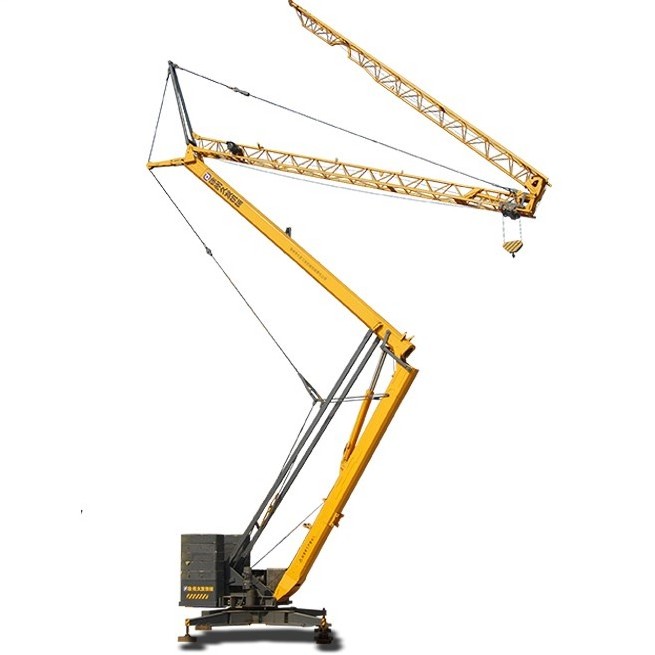

ORIEMAC Brand Best Price 2ton Mini Mobile Self Erecting Tower Crane
ms. Phylllis Wang
Sales Manager
Skype: wang.phyllis01
Mobile: +86-157-371-37170
Sales Manager
Skype: wang.phyllis01
Mobile: +86-157-371-37170
Product Description
Advantages of self erecting tower crane:
1.Without foundation, saving construction cost, low requirement for site conditions.
2.Erecting and starting rapidly.
3.None working on the high level during erecting and dismounting.
4.Mast locked automatically, jib sections connected automatically in the air.
5.No require professional operator,operating simply, mastering easily.
6.Wireless remote operating,reducing working labor strength,having wide operating view.
Transporting wholly.
Packaging & Shipping
| Category | Item | Unit | JFYT1720-10 | JFYT2527-20 | JFYT2527-30 | JFYT2528-40 |
| Hoisting parameters | Max.hoisting height | m | 17 | 25 | 25 | 25 |
| Max.working radius | m | 20 | 27 | 27 | 28 | |
| Max.hoisting weight | Kg | 1000 | 2000 | 3000 | 4000 | |
| Hoisting speed | m/min | 16/32 | 13/26 | 13/26 | 13/26 | |
| Trolleying speed | m/min | 19 | 20/40 | 20/40 | 20/40 | |
| Slewing speed | r/min | 0.8 | 0.25/0.8 | 0.25/0.8 | 0.25/0.8 | |
| Erecting time | min | 6 | 10 | 10 | 10 | |
| Outrigger span | m | 3.5x3.5 | 4.2x4.2 | 4.2x4.2 | 4.2x4.2 | |
| Dead weight | Kg | 14500 | 26000 | 32000 | 32000 | |
| Travel parameters | Max.towing speed | Km/h | 15 | 15 | 15 | 15 |
| Hydraulic system | Hydraulic system | Mpa | 28 | 28 | 28 | 28 |
| Power supply | Rated Power | Kw | 11.4 | 23.1 | 23.1 | 23.1 |
| Power supply | 380/50HZ | |||||
