Quick Details
-
Detecting Gas:
-
Flammable Gas, Toxic Gases
-
Signal output:
-
4~20 mA current output
-
Working Voltage:
-
24V DC ±15%
-
Protection class:
-
IP66
-
Transmission distance:
-
≤1000m
-
Sensor:
-
electrochemical sensor, catalytic combustion sensor
-
Installation:
-
wall-mounted
-
Display:
-
OLED Screen
-
Humidity:
-
<95% R.H.(no condensation)
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
INTE
-
Model Number:
-
KQ500D
-
Detecting Gas:
-
Flammable Gas, Toxic Gases
-
Signal output:
-
4~20 mA current output
-
Working Voltage:
-
24V DC ±15%
-
Protection class:
-
IP66
-
Transmission distance:
-
≤1000m
-
Sensor:
-
electrochemical sensor, catalytic combustion sensor
-
Installation:
-
wall-mounted
-
Display:
-
OLED Screen
-
Humidity:
-
<95% R.H.(no condensation)
Product Overview
KQ500D series Fixed gas detector (also called gas sensor or gas transmitter). It can detect various gases such as flammable gas, O2,H2S,CO,HCN,NO2,SO2,NH3,HCL,CL2,H2 etc. Detect the gas density and transform it into 4~20mA electric current signal. With two-core or three-core shield cable, it gives high fidelity when transmit the signal to the controller through a long distance.
The detector has high sensitivity, quick response, long lifetime, polarization time and many other characteristics; it is among the first class in similar products in China.
Applications
It can be widely used in metallurgy, petrol, petrifaction, chemistry, light industry, coking, municipal administration, gas, pharmacy, sewage dealing and many other special industries and fields.
Main Features:
- Various kinds of gases detectors, high precision
- Fixed explosion-proof shell, safe and reliable
- Detect gas density in long distance, and transmit it to total controller in 4~20 mA electric current output
- Two-core or three-core shield cable, high fidelity

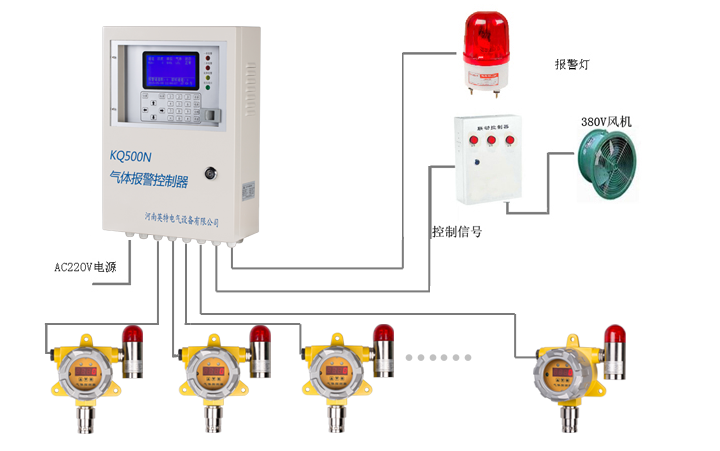

- Compatible with existing alarm unit or DCS ( distributed control system)
- Imported sensor, sensitive, high precision, quick response, stable performance
- Sipmple operation steps, easy to install and maintance
Technical Parameters
| Detecting gas | combustible gas, toxic gas, oxygen |
| Measuring Range | according to the gas detected |
| Deviation | ≤± 3% F.S |
| Respond Time | T90 < 30 s |
| Working Temperature | toxic gas: - 20 °C ~ + 50 °C |
| Combustible gas: - 40 °C ~ + 70 °C | |
| Working Humidity | < 95% R.H. no condensation |
| Sensor |
electrochemical sensor;
catalytic combustion type sensor for KQ500-EX |
| Sensor life | 2-5 year |
| Working Voltage | 24V DC±15% |
| Working Time | continuously as long as power input |
| Protection Class | IP66 |
| Weight | ≤900 g |
| Fixed parameter | Fixing type: wall-mounted type |
| Transition cable: two core shield cable | |
| (KQ500-EX uses three core shield cable), | |
| section 2×1.5mm2, external diameter 10mm | |
| Transmission distance ≤1000m | |
| Technical parameter | Working voltage: 16~30VDC |
| Working current: KQ500-EX is 120mA, others ≤50 mA | |
| Output signal: 4~20mA standard signal two wire type output | |
| (KQ500-EX three wire type) | |
| Explosion-proof Level | Exd IICT6(used for explosion proofing detector); |
| ExiaIICT4(used for intrinsic safety type detector) |
Product Information Chart
|
Product Model |
Detected Gas |
Measuring Range |
Resolution |
Respond Time (T90) |
Low Alarm |
High Alarm |
|
KQ500D-O 2 |
O 2 |
0-30%vol |
0.1%vol |
≤15s |
18.5%vol |
23%vol |
|
KQ500D-CO |
CO |
0-1000ppm |
1 ppm |
≤15s |
50ppm |
150ppm |
|
KQ500D-H 2 S |
H 2 S |
0-100ppm |
1 ppm |
≤15s |
10ppm |
15ppm |
|
KQ500D-HCN |
HCN |
0-20ppm |
0.1ppm |
≤30s |
5ppm |
10ppm |
|
KQ500D-CL 2 |
CL 2 |
0-20ppm |
0.1 ppm |
≤30s |
2ppm |
5ppm |
|
KQ500D-O 3 |
O 3 |
0-5ppm |
0.01 ppm |
≤25s |
0.1ppm |
0.5ppm |
|
KQ500D-NH 3 |
NH 3 |
0-200ppm |
1 ppm |
≤30s |
25ppm |
50ppm |
|
KQ500D-H 2 |
H 2 |
0-1000ppm |
1 ppm |
≤30s |
50ppm |
200ppm |
|
KQ500D-NO 2 |
NO 2 |
0-20ppm |
0.1 ppm |
≤25s |
2ppm |
5ppm |
|
KQ500D-PH 3 |
PH 3 |
0-20ppm |
0.1 ppm |
≤15s |
1ppm |
3ppm |
|
KQ500D-C 3 H 3 N |
C 3 H 3 N |
0-100ppm |
1ppm |
≤30s |
5ppm |
15ppm |
|
KQ500D-NO |
NO |
0-250ppm |
1ppm |
≤25s |
35ppm |
50ppm |
|
KQ500D-HCL |
HCL |
0-20ppm |
1ppm |
≤25s |
3ppm |
5ppm |
|
KQ500D-SO 2 |
SO 2 |
0-20ppm |
0.1ppm |
≤15s |
2ppm |
5ppm |
|
KQ500D-CO 2 |
CO 2 |
0-5000ppm |
1ppm |
≤30 s |
1000ppm |
2000ppm |
|
0-5.00%vol |
0.01%vol |
1.00%vol |
2.00%vol |
|||
|
KQ500D-EX |
combustible gas |
0-100%LEL |
1%LEL |
≤30s |
20%LEL |
50%LEL |
|
As for unlisted detected gas and measuring range, please contact with our company |
||||||
