Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XECOM
-
Model:
-
XA235B-A1-100
-
Product name:
-

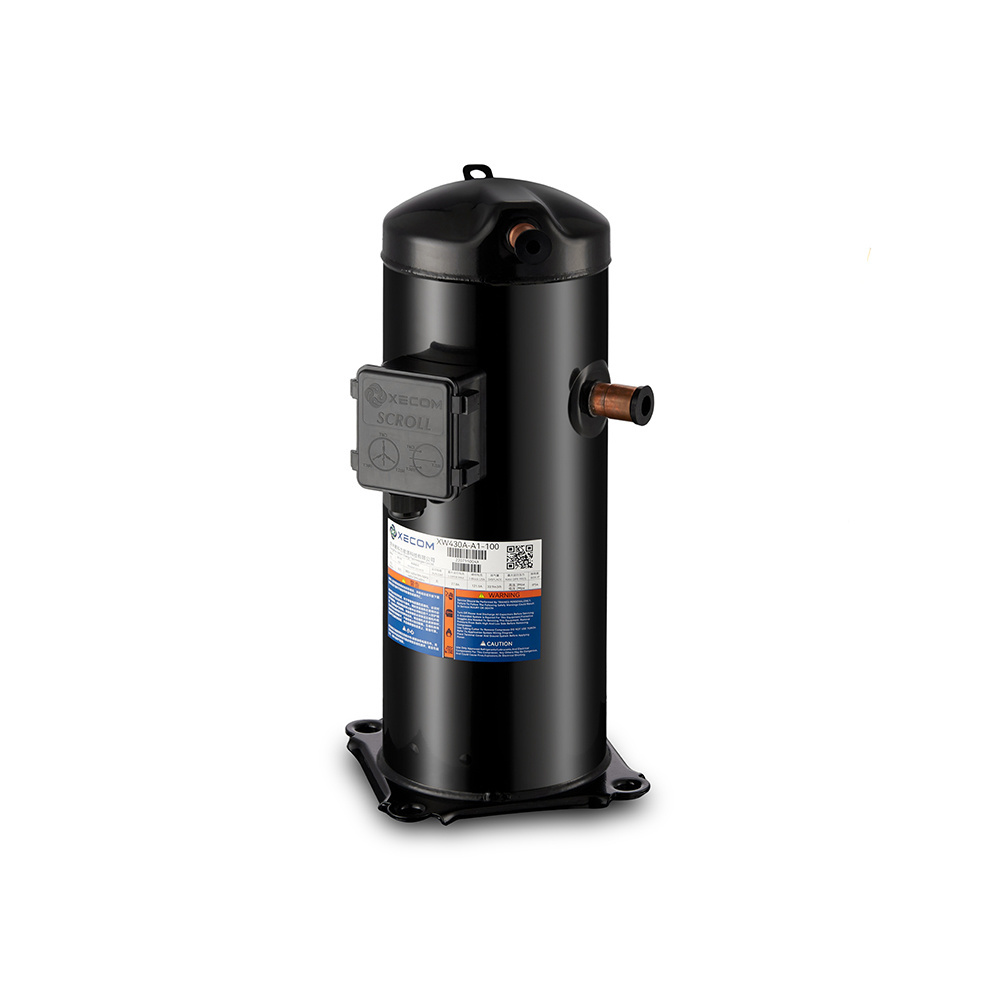

Air Conditioner Scroll Compressor
-
Nominal Capacity:
-
8HP
-
Refrigerant:
-
R407C
-
50Hz Displacement:
-
23m3/h
-
Cooling Capacity:
-
23885W
-
Input power:
-
7130W
-
COP:
-
3.35W/W
-
Max. Operating Current:
-
17.7A
-
Voltage:
-
380V-420V/3Ph/50Hz or 460V/3Ph/60Hz
Quick Details
-
Type:
-
Refrigeration Compressor
-
Application:
-
Refrigeration Parts
-
Weight (KG):
-
30.6
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XECOM
-
Model:
-
XA235B-A1-100
-
Product name:
-
Air Conditioner Scroll Compressor
-
Nominal Capacity:
-
8HP
-
Refrigerant:
-
R407C
-
50Hz Displacement:
-
23m3/h
-
Cooling Capacity:
-
23885W
-
Input power:
-
7130W
-
COP:
-
3.35W/W
-
Max. Operating Current:
-
17.7A
-
Voltage:
-
380V-420V/3Ph/50Hz or 460V/3Ph/60Hz
Product Description
Specification
|
Model
|
|
XA235B-A1-100
|
|
|
Power Supply (V/Ph/Hz)
|
|
380V-420V/3Ph/50Hz
or 460V/3Ph/60Hz |
|
|
Nominal Capacity(HP)
|
|
8
|
|
|
50Hz Displacement(m³/H)
|
|
23
|
|
|
50Hz Displacement(cc/Rev.)
|
|
132.2
|
|
|
Refrigerant
|
|
R407C
|
|
|
Cooling Capacity(W)
|
|
23885
|
|
|
Cooling Capacity(BTU/H)
|
|
81518
|
|
|
Power Input
|
|
7130
|
|
|
COP(W/W)
|
|
3.35
|
|
|
EER((BTU/H)/W)
|
|
11.4
|
|
|
Rated Load Amps(A)
|
|
13.1
|
|
|
Lock Rotor Amps(A)
|
|
117
|
|
|
Max. Operating Current(A)
|
|
17.7
|
|
|
Crankcase Heater Power(W)
|
|
90
|
|
|
Connection Tube(mm/inch)
|
Discharge Tube Inside Dia.
|
22(7/8")
|
|
|
|
Suction Tube Inside Dia.
|
28(1-1/8")
|
|
|
Dimensions (mm)
|
Length(L)
|
250
|
|
|
|
Width(W)
|
274
|
|
|
|
Height(H)
|
548
|
|
|
4 Foot Mounting Size (mm)
|
|
190.5×190.5(φ8.5)
|
|
|
Oil Type
|
|
POE
|
|
|
Initial Oil Charge Volume(L)
|
|
3.5
|
|
|
Refill Oil Charge Volume(L)
|
|
3
|
|
|
Max. Operating Pressure (MPa)
|
High Pressure Side
|
3
|
|
|
|
Low Pressure Side
|
2
|
|
|
Weight(kg)
|
|
54
|
|
Packing & Delivery
XA/XHseries scroll compressors:
