Quick Details
-
Dimension(L*W*H):
-
as per model
-
Weight:
-
30000 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
crawler mobile crushing screening station
-
Color:
-
Customerized
-
weight:
-
30000 kg
-
MOQ:
-
1 Set
-
The Machines classification:
-
Building Stone Production Line
-
Function:
-
Mining Crusher Equipment
-
Applicaton:
-
Rock Crusher Processing
-
Crusher type:
-
Quarry Machine Stone Crusher
-
Spare parts supply:
-
2 Years Spare Parts
Quick Details
-
Application:
-
Mining,Quarry,Chemical
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hongwan crawler mobile crushing screening station, Hongwan
-
Dimension(L*W*H):
-
as per model
-
Weight:
-
30000 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
crawler mobile crushing screening station
-
Color:
-
Customerized
-
weight:
-
30000 kg
-
MOQ:
-
1 Set
-
The Machines classification:
-
Building Stone Production Line
-
Function:
-
Mining Crusher Equipment
-
Applicaton:
-
Rock Crusher Processing
-
Crusher type:
-
Quarry Machine Stone Crusher
-
Spare parts supply:
-
2 Years Spare Parts
Products Description

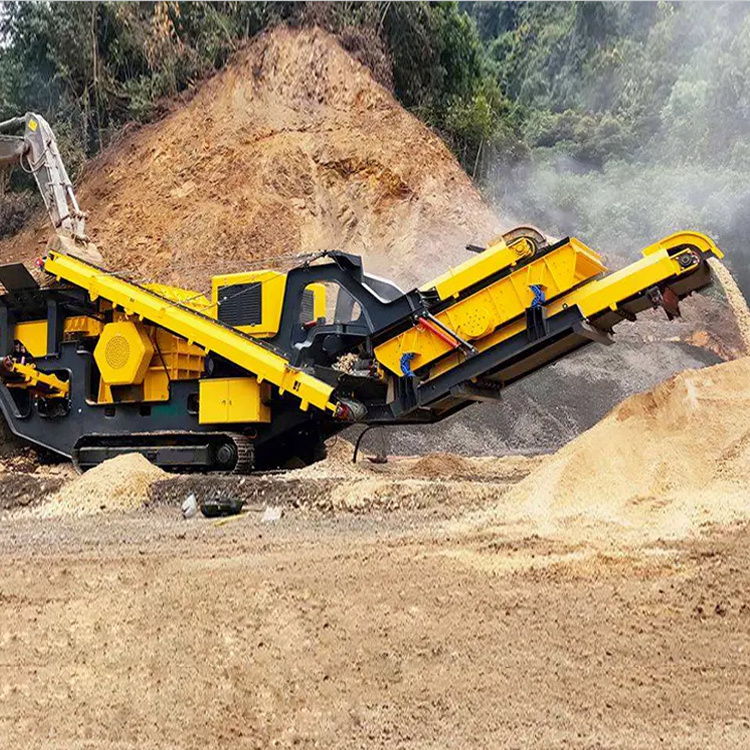

Crawl Crushing Plant
Product Paramenters
|
Model
|
HX938E69
|
HX1149E710
|
HX1349E912
|
HX1349EW86
|
HX1349EW110
|
|
Trandportation(without and with length(mm) diesel generator
|
12000
|
135000
|
146000
|
14600
|
15500
|
|
Transportation Width(mm)
|
2550
|
2550
|
2950
|
2550
|
2950
|
|
Transportation Height(mm)
|
3750
|
4500
|
4500
|
4500
|
4500
|
|
Max. Length(mm)
|
125000
|
14000
|
14600
|
14600
|
15500
|
|
Max. Width(mm)
|
2900
|
2950
|
3300
|
3300
|
3300
|
|
Max. Height(mm)
|
4100
|
4900
|
5300
|
5300
|
5700
|
|
Weight(t)
|
39
|
57
|
83
|
65
|
92
|
|
Tire Configuration
|
Dualaxial
|
Triaxial
|
Triaxial
|
Triaxial
|
Triaxial
|
|
Jaw Crusher
|
PE600*900
|
PE750*1060
|
PE900*1200
|
PEW860
|
PEW1100
|
|
Max. Feeding Size(mm)
|
480
|
630
|
750
|
730
|
940
|
|
Discharging Opening Size(mm)
|
65-160
|
80-140
|
100-200
|
75-225
|
150-275
|
|
Capacity(t/h)
|
90-180
|
110-320
|
220-450
|
150-500
|
300-650
|
|
Vibrating Feeder
|
ZSW380*95
|
ZSW490*110
|
ZSW490*130
|
ZSW490*130
|
ZSW490*130
|
|
Main Belt Conveyor
|
B800*8.5M
|
B1000*9M
|
B1200*9.5M
|
B1200*9.5M
|
B1200*9.5M
|
|
Side-opening Belt Conveyor(optional)
|
B450*3M
|
B500*3.5M
|
B650*4M
|
B650*4M
|
B650*4M
|
|
Genset(optional)(mm)
|
160
|
200
|
220
|
250
|
300
|
|
Iron Separator(optional)
|
RCYD(C)-8
|
RCYD(C)-10
|
RCYD(C)-12
|
RCYD(C)-12
|
RCYD(C)-12
|
