Automatic Amada tool grinder
I. Description of Automatic Amada tool grinder
Automatic Amada tool grinder is specially designed for grinding punching tools and dies used in CNC turret punch press.
Max. diameter of cylinderical punching tools by this automatic Amada tool grinder is 150mm.
Rotating worktable of this Amada tool grinder is inclinable to be 0-15 degree which is suitable for grinding rooftop tools.
New improved automatic tool setting function makes tool grinding much simpler. Similar to Japanese tool clamping method.
The dual-way water cooling system and high grade grinding wheel prevent tools from burning and so raise the life of tools.
Both punches and dies used in CNC turret punch press can be grinded by this automatic Amada tool grinder .

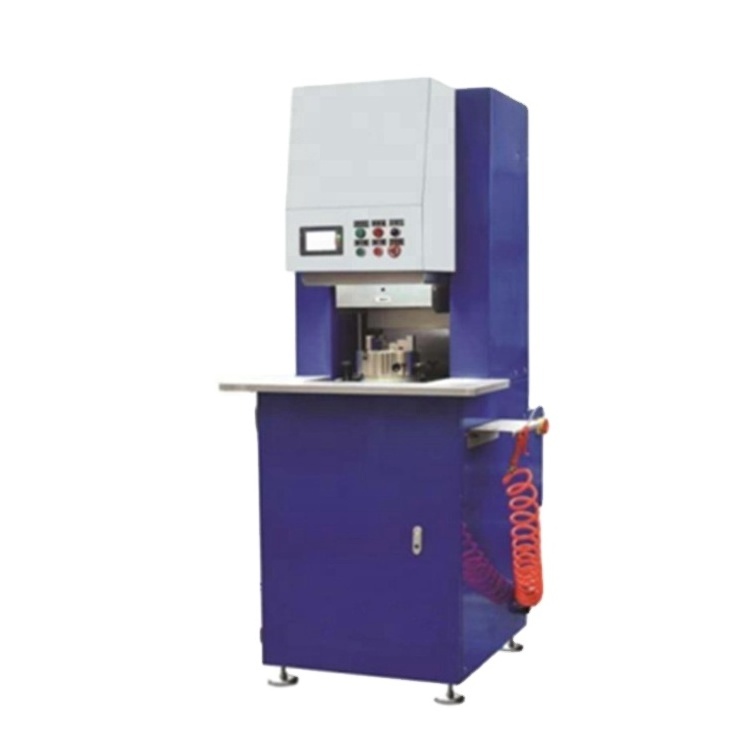

II. Clear photo of this automatic Amada tool grinder:
III. Features of this automatic Amada tool grinder comparing to traditional surface grinding machine:
-- Convenient and fast fixing cylindrical tools
-- Small occupying aread: can be closed to turret punch press. If you don't have spare tools, this is very important;
-- Super high grinding precision: axis of grinding wheel is designed to be in the same level as that of the working surface.
-- Simple and convenient operation: grinding measure can be preset and automatically PLC controlled.
-- Special boron carbide grinding wheel: long life and more smooth & clean grinding results (same to Japanese one).
IV. Main Features of new updated style automatic Amada tool grinder:
-- Automatic tool setting
-- Full welded frame
-- Double linear guides
-- Fine milled working surface
--Precious screw rod
-- Inner cooling system
-- Mitsubishi PLC control
-- Servo motor drive
-- Stainless steel cover
-- Touch screen operation
-- Rough grinding precision: 0.005mm; fine grinding precision 0.001mm.
V. Main technical parameters of automatic Amada tool grinder:
|
No. |
Item |
Parameter |
|
1 |
Grinding precision |
±0.05mm |
|
2 |
Grinding wheel |
boron carbide |
|
3 |
Max. tool diameter |
150mm |
|
4 |
Max. tool height |
250mm |
|
5 |
Min. grinding measure setting |
0.001mm |
|
6 |
Max. feeding speed |
900mm/min |
|
7 |
Min. feeding speed |
0.015mm/s |
|
8 |
PLC |
Mitsubishi from Japan |
|
9 |
Motor for main spindle |
2.2kW, 3600rpm |
|
10 |
Motor for rotary worktable |
0.375kW, 1800rpm |
|
11 |
Motor for cooling water |
0.125kW, 1800rpm |
|
12 |
Electric power source |
AC 380/400V, 50Hz/60Hz |
|
13 |
Dimension |
600 x 700 x 1650mm |
|
14 |
Weight |
600kg |
VI. Automatic Amada tool grinder is under working :
VII.Special optional tool frocks to be equipped with this Amada tool grinder:
