High speed 5T hydraulic full-automatic decoiler, uncoiler machine
High speed 5T hydraulic full-automatic decoiler, uncoiler machine
High speed 5T hydraulic full-automatic decoiler, uncoiler machine
High speed 5T hydraulic full-automatic decoiler, uncoiler machine
High speed 5T hydraulic full-automatic decoiler, uncoiler machine
High speed 5T hydraulic full-automatic decoiler, uncoiler machine
High speed 5T hydraulic full-automatic decoiler, uncoiler machine
High speed 5T hydraulic full-automatic decoiler, uncoiler machine

High speed 5T hydraulic full-automatic decoiler, uncoiler machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $16000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Power:
5.5KW
Dimension(L*W*H):
2800*1500*1600
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Color:
Blue
coil weight(kg):
10000
Function:
Feed Metal Sheet Strip Forth
Usage:
feeding
Control system:
PLC
Model:
BN-1200
Certification:
CE ISO

Quick Details

Place of Origin:
Jiangsu, China
Brand Name:
BN
Voltage:
380/415V
Power:
5.5KW
Dimension(L*W*H):
2800*1500*1600
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Color:
Blue
coil weight(kg):
10000
Function:
Feed Metal Sheet Strip Forth
Usage:
feeding
Control system:
PLC
Model:
BN-1200
Certification:
CE ISO
Product Description

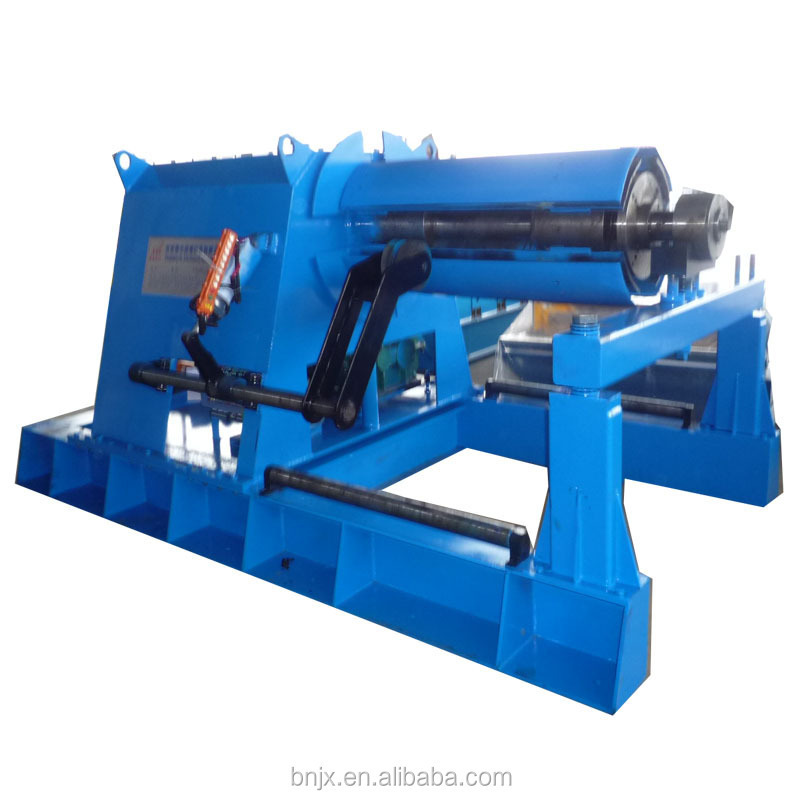

High speed 5T hydraulic full-automatic decoiler, uncoiler machine


1. 10Tons coil car

Coil weight (Max)
10000kg
Inter diameter of coil
480mm-560mm
Working by hydraulic pressure
8-12Mpa with connect with the decoiler hydraulic unit
Working lift journey
Maximal 250mm
Working function
forward and reverse movable
Move journey
maximal 3 meters
Quantity
1
Color
blue or base on customer request

2. 5T hydraulic decoiler


Coil weight (Max)
10000kg
Inter diameter
460mm-560mm
Maximal out diameter
1250mm
Oil cylinder dia
120mm
Coil width (Max)
1250mm
Working speed
0-15m/min adjustable
Main motor power
5.5KW AC motor
Hydraulic power
4kw
Frequency converter brand
Yaskawa
Quantity
1
Color
blue or base on customer request
Packing & Delivery

No paking, directly fix the machine to the container with belt and wood.

Our Service

1.1 year and life-long maintenance;
2.Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;
3.Installation Days:about 5-7 days
Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!

Certifications
Our Company

Our main products include roll forming machines, guardrail roll forming machines, steel deck forming machines, door & window frame roll forming equipment, steel metal door making lines, guide rail rollforming machines, upright post roll formers, pipe and tube roll formers, purlin cold roll forming machines, T-bar forming machines, grape trellis roll forming machines, roof tile forming machines, steel metal panel roll forming machines, stud and track forming machines, cable tray roll forming machines, shelf rack making machines, gutter roll forming machines, roller shutter manufacturing lines, car bumper forming machines, car door forming machines, distribution cabinet making machines, channel roll forming machines and so on.
