Quick Details
-
Product name:
-
cvbs encoder
-
Keyword:
-
cvbs analog video encoder module
-
Color:
-
Silver
-
Media Input Connectivity:
-
cvbs
-
OEM:
-
Support
-
Media Streaming:
-
Internet TV/Video
-
The usual time:
-
100,000 hours
-
Audio/Video Outputs:
-
RJ45
-
Rate Control:
-
CBR/VBR
-
Ethernet:
-
100Base-T Ethernet interface
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
wanwon
-
Model Number:
-
SX-HE-NH100CH
-
Product name:
-
cvbs encoder
-
Keyword:
-
cvbs analog video encoder module
-
Color:
-
Silver
-
Media Input Connectivity:
-
cvbs
-
OEM:
-
Support
-
Media Streaming:
-
Internet TV/Video
-
The usual time:
-
100,000 hours
-
Audio/Video Outputs:
-
RJ45
-
Rate Control:
-
CBR/VBR
-
Ethernet:
-
100Base-T Ethernet interface

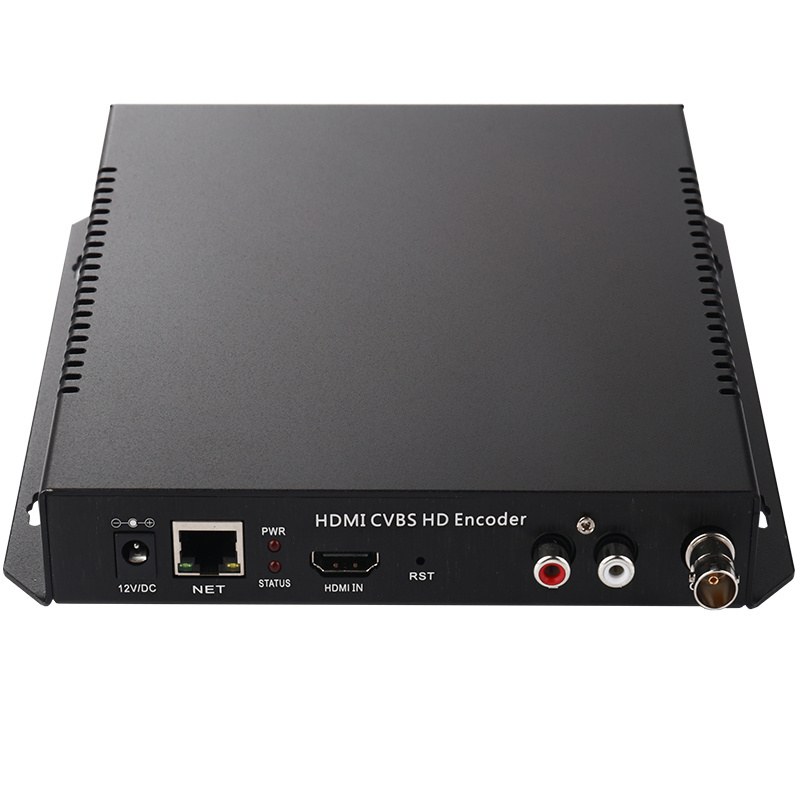

H.265.H.264 CVBS Video Encoder Audio IPTV IP Stream Live Transmitter RTMP HDMI Loop Video Encoder
1. Introduction
H.264 HDMI & CVBS Video Encoder - It is a HD audio & video encoding device with powerful functionality, which supports input HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps, at the same time, support CVBS encode & stream. works with RTMP / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.
2. Features
1. Support HDMI & CVBS (PAL & NTSC) input and Encode simultaneously.
2. Embedded HiLinux System, stable and effective.
2. Friendly Web Control UI, default IP is 192.168.0.31.
3. Support RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols.
4. Support output 2 RTMP (main stream & 2nd Stream) to different Media Server.
5. Main Stream Support output resolution - 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.
6. Support Text and BMP photo insert as Stream Logo for main stream & substream.
7. Output Stream bitrate adjustable.
8. Support Audio digital gain.
9. Support External Analog audio input.
10. Support Image quality Settings, Brightness, Contras, Hue, Saturation.
11. Support firmware upgrade.
12. Wifi version for option.
13. IP address can be set by yourself.
14. Support remote control via router port forward.
15. 3U chassis available, max supports 16Pcs Encoder Card installed.
3. Application
1. IPTV (Wowza, Xtream Codes, etc.,)
2. Online Live Broadcast
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
4. Specifications
|
Video |
|
|
Input |
1 * HDMI & 1* CVBS |
|
Supports input HDMI Resolution |
Max support 1920x1080P@60Hz |
|
Output Stream Resolution |
Max support 1920x1080P@60Hz and below |
|
Data Rate |
0.1Mbps~32Mbps |
|
Rate Control |
CBR / VBR |
|
GOP Structure |
IBBP |
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|
Audio |
|
|
Encoding |
AAC AAC+ AAC++ MP3 |
|
Sampling rate |
44.1K /48K |
|
Bit-rate |
12K ~ 320K |
|
Sampling precision |
24 bit |
|
System |
|
|
Ethernet |
100Base-T Ethernet interface |
|
Protocol |
RTMP, RTSP, UDP,HTTP,HLS, FLV ONVIF |
|
User Interface |
WEB default IP - 192.168.1.168 |
|
Others |
|
|
Dimension (W* L*H) |
1 8 5*1 65 *30mm |
|
Weight |
0.37kg |
|
Power |
12V/DC |
|
Consumption |
5W |
5. Connection Diagram
