Quick Details
-
Mold Height(mm):
-
280 - 790 mm
-
Ejector Stroke(mm):
-
195 mm
-
Ejector Force(kN):
-
113.4 kN
-
Theoretical Shot Volume(cm³):
-
1545 cm³
-
Injection Rate (g/s):
-
423 g/s
-
Injection Weight (g):
-
1406 g
-
Screw Speed (rpm):
-
0 - 150 rpm
-
Screw diameter (mm):
-
75 mm
-
Screw L/D Ratio:
-
21
-
Distance between Tie Bars:
-
760x760 mm
-
Weight (KG):
-
20000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
770 mm
-
Model Number:
-
SZ-4800A
-
Brand Name:
-
Pail Injection Molding Machine
-
Power (kW):
-
45 kW
-
Product name:
-

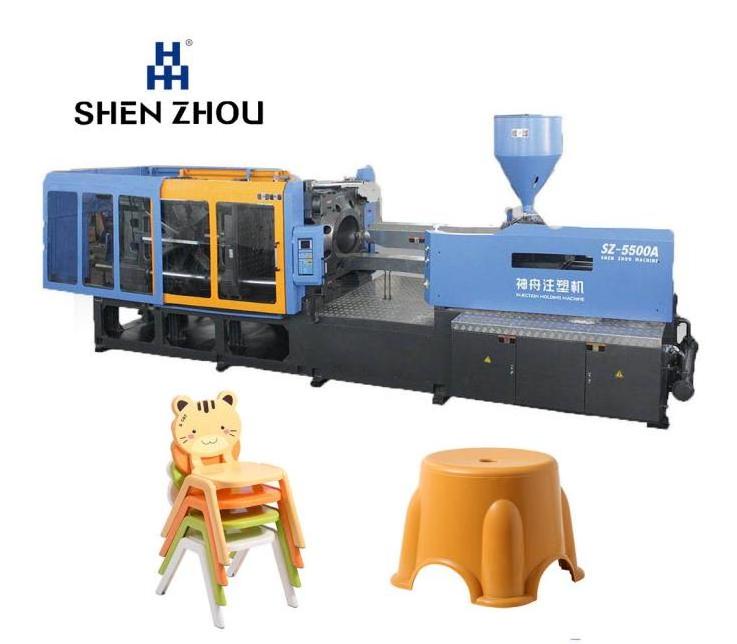

Mini Plastic Chair Bucket Making Injection Molding Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Plastic Type:
-
Thermoplastic
-
Function:
-
Plastic Pail Production
-
Advantages:
-
Energy saving and high efficiency
-
Oil Tank Capacity:
-
850L
-
Injection pressure:
-
175Mpa
-
Machine dimension(L*W*H):
-
7.5*2.1*2.45m
-
After Warranty Service:
-
Online support
-
Certification:
-
CE ISO TUV
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
760mm
-
Distance between Tie Bars(Height)(mm):
-
760mm
-
Plasticizing Capacity(g/s):
-
71.4
-
Mold Height(mm):
-
280 - 790 mm
-
Ejector Stroke(mm):
-
195 mm
-
Ejector Force(kN):
-
113.4 kN
-
Theoretical Shot Volume(cm³):
-
1545 cm³
-
Injection Rate (g/s):
-
423 g/s
-
Injection Weight (g):
-
1406 g
-
Screw Speed (rpm):
-
0 - 150 rpm
-
Screw diameter (mm):
-
75 mm
-
Screw L/D Ratio:
-
21
-
Distance between Tie Bars:
-
760x760 mm
-
Weight (KG):
-
20000 kg
-
Place of Origin:
-
Jiangsu, China
-
Open Stroke(mm):
-
770 mm
-
Model Number:
-
SZ-4800A
-
Brand Name:
-
Pail Injection Molding Machine
-
Power (kW):
-
45 kW
-
Product name:
-
Mini Plastic Chair Bucket Making Injection Molding Machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Plastic Type:
-
Thermoplastic
-
Function:
-
Plastic Pail Production
-
Advantages:
-
Energy saving and high efficiency
-
Oil Tank Capacity:
-
850L
-
Injection pressure:
-
175Mpa
-
Machine dimension(L*W*H):
-
7.5*2.1*2.45m
-
After Warranty Service:
-
Online support
-
Certification:
-
CE ISO TUV
3D SHOW ROOM
Certifications
Product Description
项目 ITEM
|
|
单位UNIT
|
SZ—4800A
|
|
|
||||
注射装置 INJECTION UNIT
|
|
|
|
|
|
||||
螺杆直径
|
SCREW DIAMETER
|
mm
|
70
|
75
|
80
|
||||
螺杆长径比
|
SCREW LID RATIO
|
L/D
|
22.6
|
21
|
19.7
|
||||
理论注射容积
|
THEORETICAL SHOT VOLUME
|
CM3
|
1346
|
1545
|
1758
|
||||
注射质量(PS料)
|
SHOT WEIGHT(PS)
|
g
|
1225
|
1406
|
1600
|
||||
注射压力
|
INJECTION PRESSURE
|
Mpa
|
201
|
175
|
154
|
||||
理论注射速率(PS料)
|
THEORETICAL INJECTION RATE(PS)
|
g/s
|
370
|
423
|
484
|
||||
塑化能力(PS料)
|
PLASTICISING CAPACITY
|
g/s
|
60.4
|
71.4
|
83.7
|
||||
螺杆驱动扭矩
|
SCREW TORQUE
|
N.m
|
3490
|
|
|
||||
螺杆最高转速
|
MAX.SCREW ROTATE SPEED
|
r/min
|
150
|
|
|
||||
洼射行程
|
INJECTION STROKE
|
mm
|
350
|
|
|
||||
合模装置 CLAMPING UNIT
|
|
|
|
|
|
||||
合模力
|
MAX.CLAMPING FORCE K
|
KN
|
4800
|
|
|
||||
移模行程
|
MAX.OPENING STROKE
|
mm
|
770
|
|
|
||||
拉杆有效间距(VxH)
|
SPACE BETWEEN TIE BARS
|
mm
|
760×760
|
|
|
||||
允许模厚(MIN-MAX)
|
MOULD HEIGHT
|
mm
|
280-790
|
|
|
||||
模板最大开距
|
MAX.DAYLIGHT
|
mm
|
1560
|
|
|
||||
液压顶出力
|
EJECTOR FORCE
|
KN
|
113.4
|
|
|
||||
液压顶出行程
|
EJECTOR STROKE
|
mm
|
195
|
|
|
||||
液压顶出杆总数
|
EJECTOR QUANTITY
|
|
13
|
|
|
||||
其它 OTHER
|
|
|
|
|
|
||||
油泵电动机功率
|
PUMP MOTOR POWER
|
KW
|
45
|
|
|
||||
油泵最高压力
|
PUMP PRESSURE
|
Mpa
|
16
|
|
|
||||
料简加热功率
|
HEATING POWER
|
KW
|
28
|
|
|
||||
加热区段
|
HEATING ZONE
|
|
5
|
|
|
||||
机器外形(LxWxH)
|
SIZE
|
m
|
7.5×2.1×2.45
|
|
|
||||
机器净重
|
NET WEIGHT
|
t
|
20
|
|
|
||||
油箱容积
|
OIL TANK CAPACITY
|
L
|
850
|
|
|
||||
国际公认型号
|
INTERNATIONAL DESIGNATION
|
|
4800—2710
|
|
|
