Quick Details
-
Place of Origin:
-
Yunnan, China
-
Filter Type:
-
Deep Sky Filter
-
Filter Size:
-
1.25in.2in,31mm,36mm
-
Materials:
-
Optical imaging glass
-
Surface Quality:
-
40/20,60/40,80/50
-
Thickness:
-
0.3-5.0 mm
-
Tolerance:
-
± 0.10mm
-
Transmittance:
-
> 95% of the common
-
Manufacture:
-
Double sided polishing
-
Special:
-
Laser Inscription LOGO
-
Customize service:
-
welcomed
-
Shipment:
-
Express delivery,Air,Sea
-
Certification:
-
ISO9001,RoHS,EPR
Quick Details
-
Caliber:
-
31-82mm
-
Brand Name:
-
Optolong
-
Model Number:
-
LRGB+SHO-7nm
-
Place of Origin:
-
Yunnan, China
-
Filter Type:
-
Deep Sky Filter
-
Filter Size:
-
1.25in.2in,31mm,36mm
-
Materials:
-
Optical imaging glass
-
Surface Quality:
-
40/20,60/40,80/50
-
Thickness:
-
0.3-5.0 mm
-
Tolerance:
-
± 0.10mm
-
Transmittance:
-
> 95% of the common
-
Manufacture:
-
Double sided polishing
-
Special:
-
Laser Inscription LOGO
-
Customize service:
-
welcomed
-
Shipment:
-
Express delivery,Air,Sea
-
Certification:
-
ISO9001,RoHS,EPR
Product Description

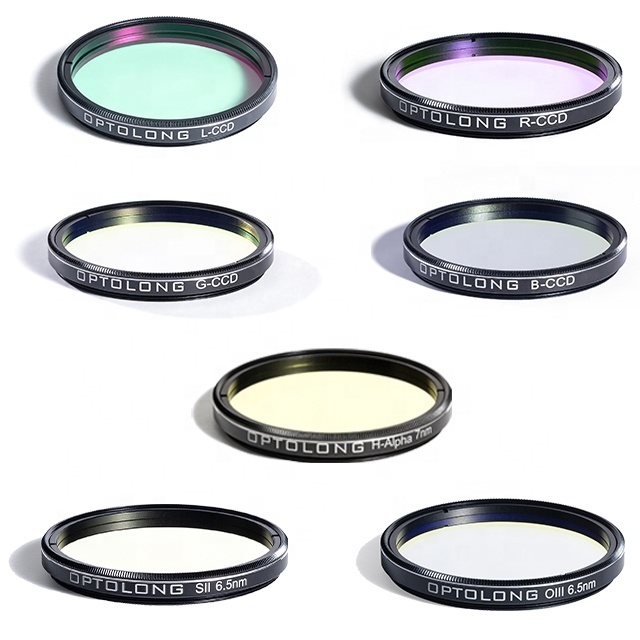

Brief Introcuction of
Astronomical Filter
LRGB + SHO 7nm
Optolong
LRGB filter set is designed for maximum contrast and with extremely high gradients for clear differentiation of colors. The LRGB filter set divides the spectrum into its components Red, Green, Blue and Luminance. OIII emission overlaps on blue and green filters with maximum transmission to allow high efficiency and natural color imaging. Gap between green and red filters serves to block out the primary Sodium light pollution line at 589nm and improves color balance and separation.
and the
SHO - 7nm filter kit includes SII6.5nm, H-Alpha7nm, and OIII6.5nm narrow-band filters, generally working with astronomical monochrome cooling CCD and modified DSLR imaging in each single-channel . Corresponding with RGB channel (Ha, OIII, SII), photographers can process Hubble images by astronomical post processing software .
LRGB + SHO Kit is not limited to photographing planets, it can also be used to photograph galaxies, star clusters and nebulae in the deep space.
Specification
|
Substrates
|
Optical imaging glass
|
|
Spectrum Range
|
300 - 1050nm
|
|
Surface Quality
|
40/20 , 60/40
|
|
LRGB Transmittance
|
Tave＞95% , Tmin＞90%
|
|
SHO 7nm Transmittance
|
T＞90%
|
|
Feature1
|
Multi-layers anti-reflection coating
|
|
Feature2
|
Adopts precision coating based on Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL(central wavelength) no deviation affected by temperature change.
|
|
Size
|
1.25", 2" , 31*2mm ,36*2mm
|
