- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
5%
-
Voltage:
-
none
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Honky
-
Dimension(L*W*H):
-
500*550*650 mm
-
Weight:
-
15 KG
-
Product name:
-
Cream and liquid filling machine
-
Filling speed:
-
0~40 bottles/min
-
Filling range:
-
1~12 Ml(optional)
-
Filling accuracy:
-
±0.5~1% error
-
Pump material:
-
Ceramic pluger pump
-
Filling material:
-
liquid ,paste and cream
-
Air pressure:
-
0.5-0.7MPa
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Field maintenance and repair service
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Other
-
Filling Accuracy:
-
5%
-
Voltage:
-
none
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Honky
-
Dimension(L*W*H):
-
500*550*650 mm
-
Weight:
-
15 KG
-
Product name:
-
Cream and liquid filling machine
-
Filling speed:
-
0~40 bottles/min
-
Filling range:
-
1~12 Ml(optional)
-
Filling accuracy:
-
±0.5~1% error
-
Pump material:
-
Ceramic pluger pump
-
Filling material:
-
liquid ,paste and cream
-
Air pressure:
-
0.5-0.7MPa
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Field maintenance and repair service

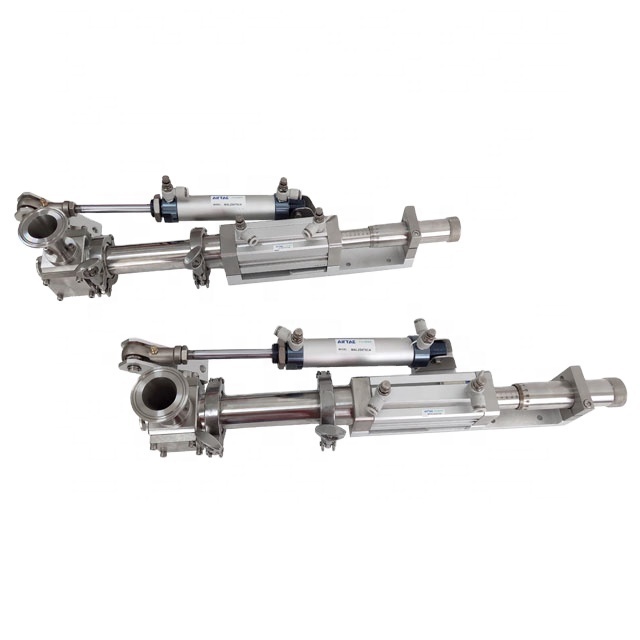

Cream and liquid filling machine 0.5% of precision
Characteristic
1. The air cylinder adjusts the filling volume, so that the pump has high metering accuracy and repeat consistency, and the accuracy is better than ±0.8%.
2. The metal part of the contact material is made of 316L stainless steel, which has better corrosion resistance.
3. The pump body is connected in a quick-disassembly mode, which is convenient for disassembly, assembly, and cleaning, and meets the cleaning requirements of food hygiene standards.
Industry applications
It can be used for matching and reforming the filling part of packaging machine. It is suitable for filling of electrolyte, medicinal liquid, biochemical reagent, chemical liquid, essential oil, essence liquid, emulsion, perfume, nail oil and other medium-low viscosity homogeneous liquid materials.
Technical parameters
|
Model |
QG-04 |
QG-12 |
QG-25 |
QG-50 |
QG-100 |
QG-300 |
|
Pump material |
Ceramic part: Alumina, Zirconia, Silicon carbide, etc.; |
|||||
|
Pump jacket and contact material part: 316L stainless steel; Others: 304 stainless steel |
||||||
|
Filling range |
0.4~4ml |
1~12ml |
2~25ml |
5~50ml |
10~100ml |
30~300ml |
|
Air range |
0.4~0.6Mpa |
|||||
|
Filling accuracy |
±0.5%~0.8% |
|||||
|
Tank volume |
5L |
10L |
10L |
10L |
20L |
20L |
Product display
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
