Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Shanghai, China, Shanghai, China
-
Brand Name:
-
Xiangbihe
-
Model Number:
-
XBH- DDPY
-
Product name:
-

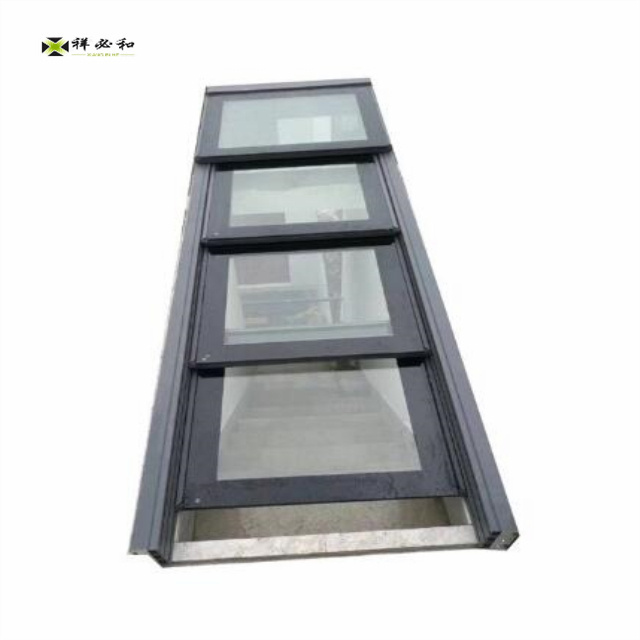

Electric sliding sunroof skylight
-
Advantage:
-
ventilation
-
Size:
-
Customized Size
-
Glass:
-
5+12A+5(can choose)+0.76PVB+5
-
Control mode:
-
Motorized
-
Quality Standard:
-
AS2047/CE/SONCAP/ISO9001:2008
-
Surface treatment:
-
Whole window electrostatic treatment powder(color optional)
-
Install angle:
-
0-5degree light ceiling or concrete roof
-
Skylight configure:
-
Built-in motor, remote control
Quick Details
-
Frame Material:
-
Aluminum Alloy
-
Feature:
-
Folding Screen
-
Function:
-
Heat Insulation
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Shanghai, China, Shanghai, China
-
Brand Name:
-
Xiangbihe
-
Model Number:
-
XBH- DDPY
-
Product name:
-
Electric sliding sunroof skylight
-
Advantage:
-
ventilation
-
Size:
-
Customized Size
-
Glass:
-
5+12A+5(can choose)+0.76PVB+5
-
Control mode:
-
Motorized
-
Quality Standard:
-
AS2047/CE/SONCAP/ISO9001:2008
-
Surface treatment:
-
Whole window electrostatic treatment powder(color optional)
-
Install angle:
-
0-5degree light ceiling or concrete roof
-
Skylight configure:
-
Built-in motor, remote control
|
OVERLAP
RETRACTABLE FLAT SKYLIGHT SPECIFICATION
|
|
|
|
MODEL NO:
|
XBH-O
|
|
|
BRAND:
|
XBH SKYLIGHT
|
|
|
PROCESS TECH:
|
Seamless Welding
|
|
|
APPLICATIONS:
|
Home: Residential house, villa, apartment and etc.
|
|
|
|
Commercial: Commercial building, school, restaurant, factory and etc.
|
|
|
TYPICAL INSTALLATIONS:
|
Roof, sun room , basement, atrium and etc.
|
|
|
MAIN FUNCTIONS:
|
Ventilation, daylighting, smoke extraction, night lighting, fire protection, access etc.
|
|
|
ADVANTAGES:
|
1. Excellent waterproof performance.
|
|
|
|
2. High strength aluminum frame for heavy duty and big size.
|
|
|
|
3. Durable motorized drive system and stable control system.
|
|
|
SIZE:
|
1. Customized according to the opening size.
|
|
|
|
2. Minimum size: Start to 4 ㎡
|
|
|
|
3. Maximum size: 8m*XXm, 1.4m =< span =< 8m, area has no limited.
|
|
|
OPEN WAY:
|
1. Brand motor driving with open area 50% to 100%.
|
|
|
|
2. Remote control.
|
|
|
|
3. Rain sensor control.
|
|
|
FRAME MATERIAL:
|
Top level extruded Aluminum alloy 6063 T6.
|
|
|
COLOR:
|
Customized according to requirements.
|
|
|
SURFACE TREATMENT:
|
Electrostatic powder coating.
|
|
|
GLASS:
|
Option 1 - 6+27A+6 with built-in blind.
|
|
|
|
Option 2 - 8mm or 6+1.14+6 or 5+1.14PVB+5+21A+6LOW-E or etc.
|
|
|
|
Option 3 - Customized according to requirements.
|
|
|
NET:
|
Option 1 - Plastic dust proof fly net , openable or fixed.
|
|
|
|
Option 2 - Stainless steel wire mesh, openable or fixed.
|
|
|
BLIND:
|
Hollow glass built-in sun shade system optional, remote control.
|
|
|
LIGHTING:
|
LED strip, 4000 K, remote control.
|
|
|
PACKAGING:
|
1. Standard packaging: Bubble bag wrapped then wooden case.
|
|
|
|
2. Customized according to customer requirements
|
|
|
DELIVERY TIME:
|
In 25 days
|
|
|
ELECTRIC SPECIFICATION
|
|
|
|
|||
|
Input Voltage:
|
90~260 VAC
|
Drive Motor:
|
110 V AC or 220 V AC
|
|||
|
Rated Current:
|
2.2 A or 1.1 A
|
Remote Control:
|
3 V CR2032
|
|||
|
Rated Power:
|
240 W
|
Rain Sensor:
|
24 VDC
|
|||
|
Operating Temp:
|
-30 ~ +70 degree
|
Power Plug:
|
According to country
|
|||
|
CONFIGURATIONS
|
|
|
|
|
|
|||||
|
VERSIONS
|
RAIN SENSOR
|
NET
|
LED
|
BLIND
|
GLASS
|
|||||
|
BASIC
|
Y
|
N
|
N
|
OPTIONAL
|
OPTIONAL
|
|||||
|
COMFORTABLE
|
Y
|
Y
|
N
|
OPTIONAL
|
||||||
|
DELUXE
|
Y
|
Y
|
Y
|
OPTIONAL
|
OPTIONAL
|
|||||
Q: Are you a Trading Company or a Factory?
Xingbihe is 100% real factory and has been verified by Alibaba.
Q: How about your production time?
About have 25-30 working days.It depends on the windows types and profile (like color requires).
Q: What about your MOQ?
For window , the minimum order quantity is 10 Square meters.
Q: Do you accept customized design and size?
Yes, sure, windows are highly customized goods. So the size and design are up to you.
Q: What’s your payment term?
T/T, L/C, Trade assurance and PayPal are available.
Q: What is your color available?
Standard Colors have Black, White, Dark grey, Nature, and Coffee. Other RAL Colors are also available but it will spend
more time and money.
Q: What kinds of hardware mostly?
China brand: HOPO, KIN LONG, PAGANI, YEAR, CHUANG
Germany brand: ROTO, SIEGENIA
Italy brand: SAVIO, GIESSE
Q: What is profile available in your factory?
Aluminum (Non-Thermal Break and Thermal Break), PVC(UPVC&VINYL), Aluminum Cladding wood.
Q: Do you provide Sample?
Sure, it is available. But we need charge for sample cost and freight fee.
Xingbihe is 100% real factory and has been verified by Alibaba.
Q: How about your production time?
About have 25-30 working days.It depends on the windows types and profile (like color requires).
Q: What about your MOQ?
For window , the minimum order quantity is 10 Square meters.
Q: Do you accept customized design and size?
Yes, sure, windows are highly customized goods. So the size and design are up to you.
Q: What’s your payment term?
T/T, L/C, Trade assurance and PayPal are available.
Q: What is your color available?
Standard Colors have Black, White, Dark grey, Nature, and Coffee. Other RAL Colors are also available but it will spend
more time and money.
Q: What kinds of hardware mostly?
China brand: HOPO, KIN LONG, PAGANI, YEAR, CHUANG
Germany brand: ROTO, SIEGENIA
Italy brand: SAVIO, GIESSE
Q: What is profile available in your factory?
Aluminum (Non-Thermal Break and Thermal Break), PVC(UPVC&VINYL), Aluminum Cladding wood.
Q: Do you provide Sample?
Sure, it is available. But we need charge for sample cost and freight fee.
