Quick Details
-
Dimension(L*W*H):
-
depends on models
-
Weight:
-
520 KG
-
Application:
-
Ore, coal, coke, mulch, organics, bark, MSW, building waste
-
Screen material:
-
steel bar, steel plate punch hole, steel wire woven, stainless steel
-
Installation:
-
Supply manual to guide user
-
Feeding size:
-
less than 300mm
-
Discharge size:
-
as request
-
Color:
-
yellow, white, red, blue, gray( or as client request)
-
Spare parts supplying:
-
Lifelong Provide
-
Cleaning system:
-
Rubber Ball
-
Dimension:
-
according to capacity
-
Product name:
-
Gold machine mining processing plant gold trommel wash equipment
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sinolion
-
Voltage:
-
380v/415v/440v
-
Dimension(L*W*H):
-
depends on models
-
Weight:
-
520 KG
-
Application:
-
Ore, coal, coke, mulch, organics, bark, MSW, building waste
-
Screen material:
-
steel bar, steel plate punch hole, steel wire woven, stainless steel
-
Installation:
-
Supply manual to guide user
-
Feeding size:
-
less than 300mm
-
Discharge size:
-
as request
-
Color:
-
yellow, white, red, blue, gray( or as client request)
-
Spare parts supplying:
-
Lifelong Provide
-
Cleaning system:
-
Rubber Ball
-
Dimension:
-
according to capacity
-
Product name:
-
Gold machine mining processing plant gold trommel wash equipment
Gold machine mining processing plant mobile gold trommel wash equipment
The mini gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein. it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.

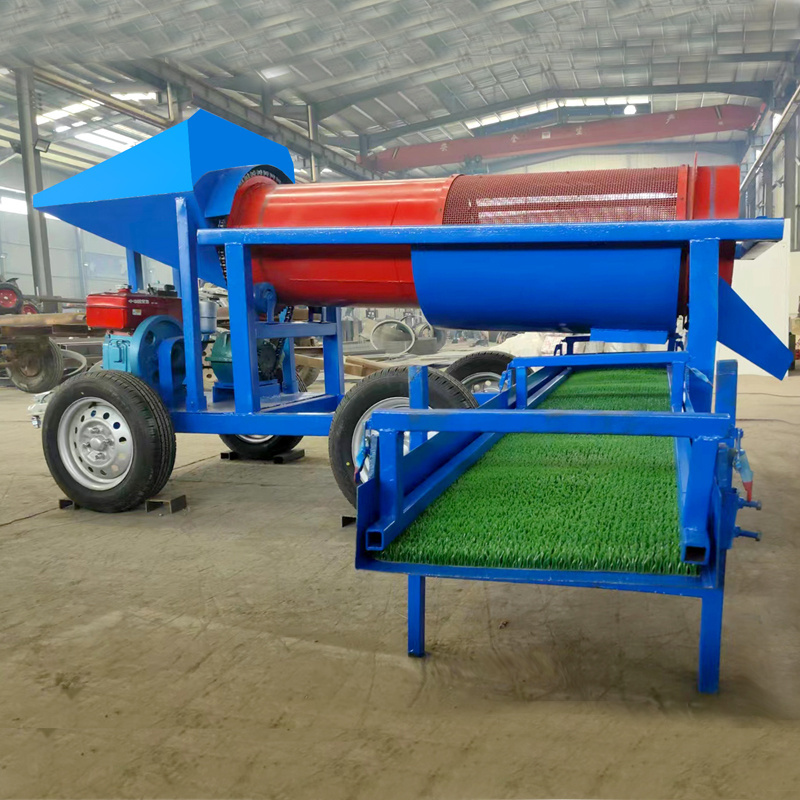

Placer gold trommel is composed of feeding hopper, screen drum, gold chute, wheels. It overcomes the problem of screen blocking of various vibrating screens when screening wet materials. Increased production and reliability of the screening system. The maximum product under the sieve is 100mm, the middle is 10-50mm, and the finest is up to 3mm. The product is well received by the vast majority of customers at home and abroad.
The first section of mini gold trommel is l 910mm steel drum, the second section is 840mm with manganese wire mesh, aperture 5mm,while the third section steel reel 160mm,Round steel diameter 10mm, small opening 50mm, tire diameter , four tires, one axle.
It is equipped with HONDA diesel engine, with reducer, chain, leg, roller. The width of the discharge tank is 400mm and the length 1500mm contains gold panning grass.
Characteristics:
1.Complete screen self cleaning function
2. The machine can effectively control the screening size function, can achieve high precision screening, to achieve the best screening effect.
3. The outlet of the machine can be adjusted arbitrarily. Sieve out of the material can be directly discharged, suitable for automated operations.
4. Simple structure, convenient installation, light weight; Reliable operation, long life; Low power consumption.
5. The screen mesh is not blocked, no flying powder, no leakage, fully sealed structure, environmental protection.
6. Fine powder, particle and liquid can pass through without blocking.
7. The cylinder is made of thick stainless steel, with long service life
| SPECIFICATIONS OF PORTABLE MOBILE GOLD WASH TROMMEL | |
| Model | GTS-500x1900 |
| Drum Diameter | 500mm |
| Drum Length | 1900 mm |
| Gearbox | WPS-100-20 |
| Towing Hook | Include |
| Tires Size | 165/70RB |
| Rubber Tires Quantity | 4 pieces |
| Spray Pipe Diameter | 42mm |
| Spray Pipe Material | Galvanized seamless pipe |
| Capacity | 5-10 tons/hour |
| HONDA Gasoline Engine |
Main Power:5.5HP
Start method: Manual pull Gasoline load: 0.58L |
| Gold Chute |
350*1500mm
Angle adjustable 2-8° |
| Grizzly |
Steel bard diameter 20mm
Bar spacing 50mm Input hopper: 0.5m³ |
