Quick Details
-
Model Number:
-
VD
-
Product name:
-
anti vibration isolator damper rubber absorber compressor mounts
-
Material:
-
Rubber
-
Name:
-
Rubber vibration isolator
-
Color:
-
Customer's Request
-
Application:
-
Industrial
-
Size:
-
Samples
-
Usage:
-
Industrial Shock Absorber
-
Feature:
-
Eco-friendly
-
Certification:
-
ISO9001
-
Hardness:
-
IRHD
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JIUFU
-
Model Number:
-
VD
-
Product name:
-
anti vibration isolator damper rubber absorber compressor mounts
-
Material:
-
Rubber
-
Name:
-
Rubber vibration isolator
-
Color:
-
Customer's Request
-
Application:
-
Industrial
-
Size:
-
Samples
-
Usage:
-
Industrial Shock Absorber
-
Feature:
-
Eco-friendly
-
Certification:
-
ISO9001
-
Hardness:
-
IRHD
Products Description

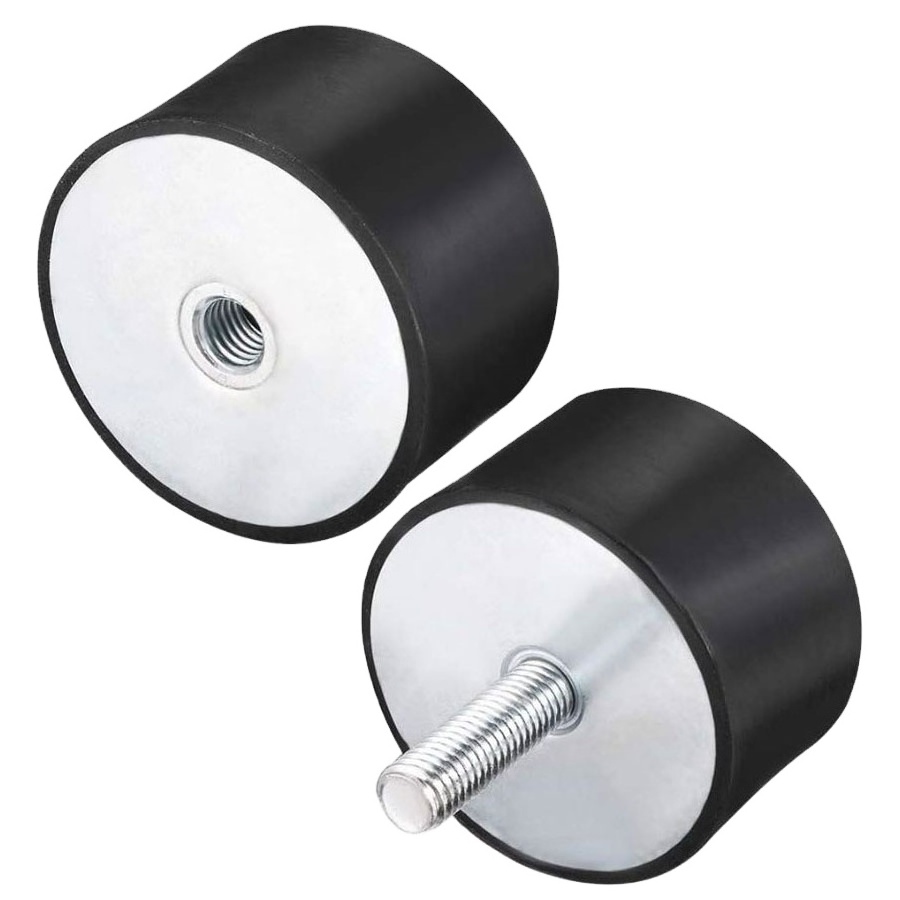

Description of generator anti vibration isolator damper rubber absorber compressor mounts
Generator vibration isolators, dampers, rubber absorbers, compressor brackets are suitable for shock absorption products, automotive industry, heavy machinery, fitness equipment, electronic devices, instruments and meters, air compressors, diesel power units, motor vibration bodies, and other power machinery to protect the normal operation of the machine and a good surrounding environment. The structure is simple and economical, with five types of fixed installation methods, easy to install, reliable performance, neat and complete, and strong selectivity. The vibration and noise reduction effect is significant.
Application of generator anti vibration isolator damper rubber absorber compressor mounts
generator anti vibration isolator damper rubber absorber compressor mounts
mainly used in air compressors, diesel engines, gasoline engines,
water pumps; electric welders and other machinery and equipment as shock absorption components to protect the body and the surrounding environment, reduce vibration and noise.
water pumps; electric welders and other machinery and equipment as shock absorption components to protect the body and the surrounding environment, reduce vibration and noise.
Technical parameters
Technical parameters of generator anti vibration isolator damper rubber absorber compressor mounts
|
Specification
|
|
D
(Diameter of Rubber )
|
H
（Height of Rubber ）
|
M
(Thickness of Thread）
|
L
（Length of Thread）
|
|
|
10*8
|
M4*10
|
10MM
|
8MM
|
M4
|
10
|
|
|
10*10
|
M4*10
|
10MM
|
10MM
|
M4
|
10
|
|
|
15*15
|
M4*10
|
15MM
|
15MM
|
M4
|
10
|
|
|
15*15
|
M5*15
|
15MM
|
15MM
|
M5
|
15
|
|
|
20*15
|
M6*18
|
20MM
|
15MM
|
M6
|
18
|
|
|
20*20
|
M6*18
|
20MM
|
20MM
|
M6
|
18
|
|
|
25*15
|
M6*18
|
25MM
|
15MM
|
M6
|
18
|
|
|
25*20
|
M6*18
|
25MM
|
20MM
|
M6
|
18
|
|
|
25*25
|
M6*18
|
25MM
|
25MM
|
M6
|
18
|
|
|
25*30
|
M6*18
|
25MM
|
30MM
|
M6
|
18
|
|
|
30*20
|
M8*23
|
30MM
|
20MM
|
M8
|
23
|
|
|
30*25
|
M8*23
|
30MM
|
25MM
|
M8
|
23
|
|
|
30*30
|
M8*23
|
30MM
|
30MM
|
M8
|
23
|
|
|
40*20
|
M8*23
|
40MM
|
20MM
|
M8
|
23
|
|
|
40*30
|
M8*23
|
40MM
|
30MM
|
M8
|
23
|
|
|
40*30
|
M10*27
|
40MM
|
30MM
|
M10
|
27
|
|
|
40*40
|
M8*23
|
40MM
|
40MM
|
M8
|
23
|
|
|
40*40
|
M10*27
|
40MM
|
40MM
|
M10
|
27
|
|
|
50*20
|
M10*27
|
50MM
|
20MM
|
M10
|
27
|
|
|
50*30
|
M10*27
|
50MM
|
30MM
|
M10
|
27
|
|
|
50*40
|
M10*27
|
50MM
|
40MM
|
M10
|
27
|
|
|
50*50
|
M10*27
|
50MM
|
50MM
|
M10
|
27
|
|
|
60*40
|
M12*37
|
60MM
|
40MM
|
M12
|
37
|
|
