Quick Details
-
Warranty:
-
12 Months
-
Loading Capacity:
-
500
-
Product name:
-

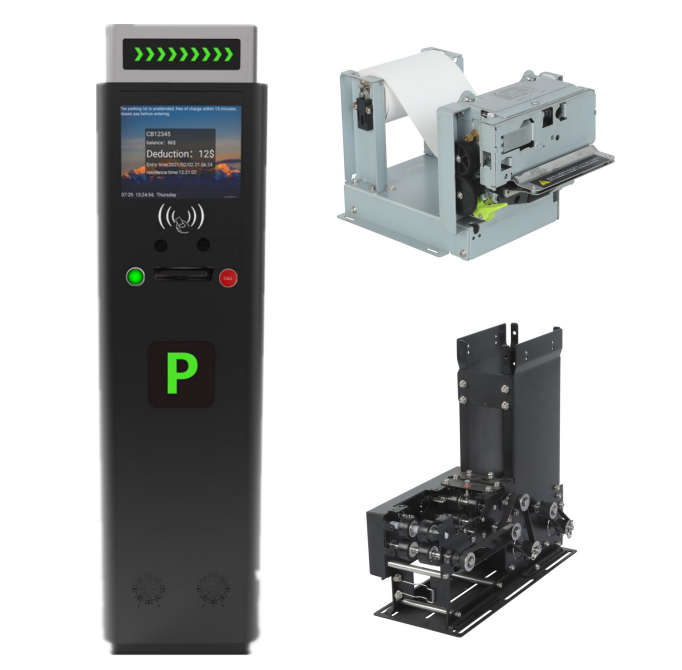

Ticket Parking System
-
Material:
-
Iron
-
Size:
-
H1070*L340*W280mm
-
Package:
-
Export wooden Carton
-
System Control:
-
PC control
-
Setting:
-
Hardware+Software
-
Weight:
-
60kg
-
Communication:
-
TCP IP
Quick Details
-
Place of Origin:
-
Other Country
-
Brand Name:
-
TGW, TGW
-
Model Number:
-
TTGWRFID-01
-
Warranty:
-
12 Months
-
Loading Capacity:
-
500
-
Product name:
-
Ticket Parking System
-
Material:
-
Iron
-
Size:
-
H1070*L340*W280mm
-
Package:
-
Export wooden Carton
-
System Control:
-
PC control
-
Setting:
-
Hardware+Software
-
Weight:
-
60kg
-
Communication:
-
TCP IP
Product Information
Features:
Can be used in conjunction with license plate recognition and UHF, Support voice broadcast.
10. 4 inch LCD screen: High-definition bright light perception outdoor screen, Support minor language display
Built-in radar, do not need coil loop
Enter to print the QR code, Exit to scan the QR code
10. 4 inch LCD screen: High-definition bright light perception outdoor screen, Support minor language display
Built-in radar, do not need coil loop
Enter to print the QR code, Exit to scan the QR code
|
Model No.
|
TGW-NTE
|
|
|
|
|||
|
Display Language
|
English,Spanish,Korean,Japanese,Arabic.,etc
|
|
|
|
|||
|
Applications
|
Parking lot,car washing.,etc
|
|
|
|
|||
|
Functions
|
Press button to print the QR code ticket
|
|
|
|
|||
|
Hardware configurations
|
10. 4 inch LCD screen
|
1pc
|
radar:1pc
|
1pc
|
|||
|
|
Android motherboard
|
1pc
|
Intercom (main + points)
|
1pc
|
|||
|
|
Cross flow fan
|
1pc
|
sensor
|
1pc
|
|||
|
|
speaker
|
1pc
|
fan
|
1pc
|
|||
|
|
IC reader
|
1pc
|
Relay
|
1pc
|
|||
|
|
Card withdrawal button
|
1pc
|
Heater
|
1pc
|
|||
|
|
Intercom button
|
1pc
|
case
|
1pc
|
|||
|
|
Ticket Dispenser
|
1pc
|
power supply: 1pc
|
1pc
|
|||
|
|
Wire accessories, etc.
|
|
|
|
|||
|
Technical Specification
|
Cabinet material
|
|
Iron plate metal 2.0
|
|
|||
|
|
Dimension
|
|
330mm*310mm*1245mm
|
|
|||
|
|
Weight(kgs)
|
|
35kg
|
|
|||
|
|
Card reader interface
|
|
Wiegand 26/34
|
|
|||
|
|
Network
|
|
RJ45,100M
|
|
|||
|
|
Communication Interface
|
|
TCP/IP
|
|
|||
|
|
Rated voltage
|
|
220v /110V±10%
|
|
|||
|
|
Working Temperature
|
|
-25℃~70℃
|
|
|||
|
|
Working Humidity
|
|
≤85%
|
|
|||
