Quick Details
-
Brand Name:
-
Teren
-
Model Number:
-
MC-7825G
-
Grains:
-
36 Species
-
Measuring Range:
-
6~30 %
-
Accuracy:
-
±(0.5n%+0.5)
-
Data Output:
-
USB, RS-232, Bluetooth
-
Calibration:
-
Automatic
-
Resolution:
-
0.1
-
Display:
-
4 Digits, 10 mm LCD, With Color Coded LED Indicator
-
Power Supply:
-
4x 1.5V AAA Size (UM-4) Battery
-
Operating Conditions:
-
Temperature: 0~50 %°C, Humidity: < 90 %RH
-
Battery Indicator:
-
Low Battery Indicator
Quick Details
-
Type:
-
split
-
Warranty:
-
1 year
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Teren
-
Model Number:
-
MC-7825G
-
Grains:
-
36 Species
-
Measuring Range:
-
6~30 %
-
Accuracy:
-
±(0.5n%+0.5)
-
Data Output:
-
USB, RS-232, Bluetooth
-
Calibration:
-
Automatic
-
Resolution:
-
0.1
-
Display:
-
4 Digits, 10 mm LCD, With Color Coded LED Indicator
-
Power Supply:
-
4x 1.5V AAA Size (UM-4) Battery
-
Operating Conditions:
-
Temperature: 0~50 %°C, Humidity: < 90 %RH
-
Battery Indicator:
-
Low Battery Indicator

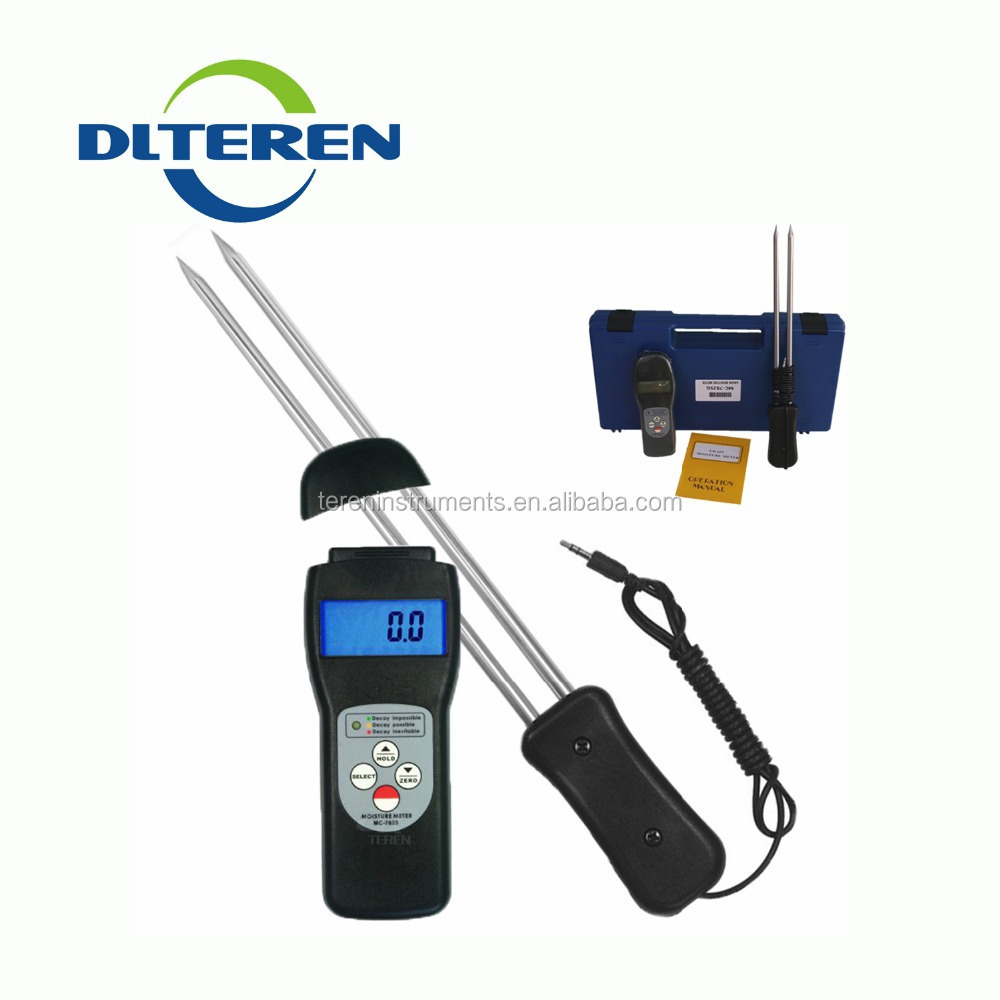

Low Cost MC-7825G Grain Moisture Meter
The grain moisture meter MC-7825G used for fast and accurate measurement of moisture in the process of
allotment, acquisition, storage, machining of packed grains, feedstuff, powder.
Product Features
* Able to measure grains up to 36 species.
* Two presentations, digital display and color coded LED indication.
* Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement.It can obtain automatically the temperature corrected moisture value.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
| Grains |
36 Species
|
| Measuring Range | 6~30 % |
|
Accuracy
|
±(0.5n%+0.5) |
|
Resolution
|
0.1
|
| Display | 4 Digits, 10 mm LCD, With Color Coded LED Indicator |
|
LED Indicator
|
Green LED represents a safe, air-dry state
|
|
Yellow LED represents a borderline state
|
|
|
Data Hold
|
Red LED represents a damp state
|
|
Calibration
|
Automatic
|
|
Battery Indicator
|
Low Battery Indicator
|
| Operating Conditions |
Temperature: 0~50 %°C, Humidity: < 90 %RH
|
|
Power Supply
|
4 x 1.5V AAA Size (UM-4) Battery
|
|
Data Output
|
USB, RS-232, Bluetooth
|
|
Dimensions
|
Uint: 165 x 62 x 26 mm Probe: 368 x 44 x 25 mm |
|
Weight
|
334 g (Not Including Batteries)
|
Standard Accessories
1. Main Unit ………………………… 1 piece
2. Probe ..........................................................1 pair
3. Carrying Casw………………………………………………….1 piece
4. Operation Manual…………………………………………………….1 piece
Optional Accessories
2. Bluetooth data out put with software
Probe: 368 x 44 x 25 mm
2.Weight : 334 g (Not Including Batteries)
MC-7825G grain moisture meter able to measure grains up to 36 species
| Code | Grain | Grain |
| Cd01 | wheat / Rye(whole) | 7~31 |
| Cd02 | Wheet / Rye (Ground) | 7~29 |
| Cd03 | Paddy(whole) | 7~29 |
| Cd04 | Paddy (Ground) | 7~26 |
| Cd05 | Rice (Milled) | 7~29 |
| Cd06 | Semolia | 7~25 |
| Cd07 | Maize / Corn (Whole) | 7~27 |
| Cd08 | Maize / Corn (Ground) | 7~26 |
| Cd09 | Soya Beans (Whole) | 6~28 |
| Cd010 | Soya Beans (Ground) | 5~22 |
| Cd011 | Barley Oats (Whole) | 7~34 |
| Cd012 | Barley Oats (Ground) | 7~29 |
| Cd013 | Coffee (Whole) | 7~31 |
| Cd014 | Coffee (Ground) | 7~26 |
| Cd015 | Coffee Green (Ground) | 7~27 |
| Cd016 | Coco beans (whole) | 4~13 |
| Cd017 | Linseed (Whole) | 6 ~21 |
| Cd018 | Lentils (Ground / Whole) | 7~21 |
| Cd019 | Oilseed Rape (Ground) | 5~26 |
| Cd020 | Mustard Seed (Whole) | 7~21 |
| Cd021 | Sorghum / Milo (Whole) | 7~31 |
| Cd022 | Sorghum / Milo (Ground) | 7~29 |
| Cd023 | Sunflower Seed (Whole) | 7~29 |
| Cd024 | Sugarbeet Seed (Whole) | 7~26 |
| Cd025 | Flax (Whole) | 7~29 |
| Cd026 | Peas (Progreta) (Ground) | 7~25 |
| Cd027 | Peas (Ground) | 7~27 |
| Cd028 | Ground Nuts Hulled (Whole) | 7~26 |
| Cd029 | Grass Seed / Rye Grass (Whole) | 6~28 |
| Cd030 | Grass Seed / Cocksfoot (Whole) | 5~22 |
| Cd031 | Four / Soft Wheat | 7~34 |
| Cd032 | Clover / White Seed (Whole) | 7~29 |
| Cd033 | Clover / Red lucerne Sees (Whole) | 7~31 |
| Cd034 | Buckwheat (Ground) | 7~26 |
| Cd035 | Brassicas /Brussels Sprout(Whole /Ground) |
7~27
|
| Cd036 | Beans / Tic / Winter (Ground) | 4~13 |
