Quick Details
-
Min height:
-
2700mm
-
Working stroke:
-
800mm
-
Working load:
-
200KN
-
Working hydraulic pressure:
-
25.5Mpa
-
Initial supporting power:
-
118-157KN
-
Pump station pressure:
-
15-20Mpa
-
Rise speed:
-
≥60mm/s
-
Fall speed:
-
≥40mm/s
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Weight (KG):
-
1000
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
China Coal Group
-
Min height:
-
2700mm
-
Working stroke:
-
800mm
-
Working load:
-
200KN
-
Working hydraulic pressure:
-
25.5Mpa
-
Initial supporting power:
-
118-157KN
-
Pump station pressure:
-
15-20Mpa
-
Rise speed:
-
≥60mm/s
-
Fall speed:
-
≥40mm/s
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Products Description
Introduction of DW Mining Supporting Acrow Prop Single Hydraulic Prop For Sale
1. The working fluid of Underground DN Inner Injection Single Hydraulic Prop is the 5th hydraulic oil, back to the column when the hydraulic oil flow back into the cylinder plunger cavity to form a closed loop;zmwm15
2. Does not require pumping and piping systems, auxiliary equipment, low cost; 3. Mains and pumping stations in the absence of local still use, flexibility, easy management and simple;
4. Since the working fluid is a closed loop, prop prop hydraulic oil flowing back when the plunger cavity pillar itself to achieve closed loop hydraulic oil, hydraulic oil consumes very little;
5. Prop hydraulic system for the closed system, hydraulic oil does not spill, do not pollute the environment, environmental protection, and face the production of small, well maintained face environment, better working conditions;
6. Prop valve is fully installed in the pillar cavity , the possibility of contamination by outside the small, high reliability.
Product Paramenters
Parameters of DW Mining Supporting Acrow Prop Single Hydraulic Prop For Sale
|
Model
|
DN06
|
DN08
|
DN10
|
DN12
|
DN14
|
DN16
|
DN18
|
DN20
|
DN22
|
|
Max Height mm
|
650
|
800
|
1000
|
1200
|
1400
|
1600
|
1800
|
2000
|
2240
|
|
Min Height mm
|
510
|
590
|
700
|
850
|
1000
|
1100
|
1200
|
1390
|
1540
|
|
Working Limit mm
|
140±10
|
210±10
|
300±10
|
350±20
|
400±20
|
500±20
|
600±20
|
610
|
700
|
|
Rated Working Resistance kN
|
250
|
|
|
|
|
|
|
300
|
|
|
Rated Working Pressure MPa
|
49
|
|
|
|
|
|
|
46.3
|
|
|
Cylinder Inner Dia mm
|
80
|
|
|
|
|
|
|
90
|
|
|
Initial Support kN
|
49
|
|
|
|
68.7-78.5
|
|
|
|
|
|
Base Area cm2
|
120
|
|
|
|
|
|
|
|
|
|
Max. Torque On Handle N.m
|
＜200
|
|
|
|
|
|
|
|
|
|
Increase Height per Handle Shake mm
|
≥12
|
|
|
|
≥20
|
|
|
|
|
|
Down Prop Seed mm/s
|
＞20
|
|
|
|
＞30
|
|
|
|
|
|
Working Medium
|
5# hydraulic oil
|
|
|
|
|
|
|
|
|
|
|
5#Hydraulic oil
|
|
|
|
|
|
|
|
|
|
Weight kg
|
23
|
26
|
29
|
34
|
38
|
41
|
45
|
55
|
60
|
Details Images

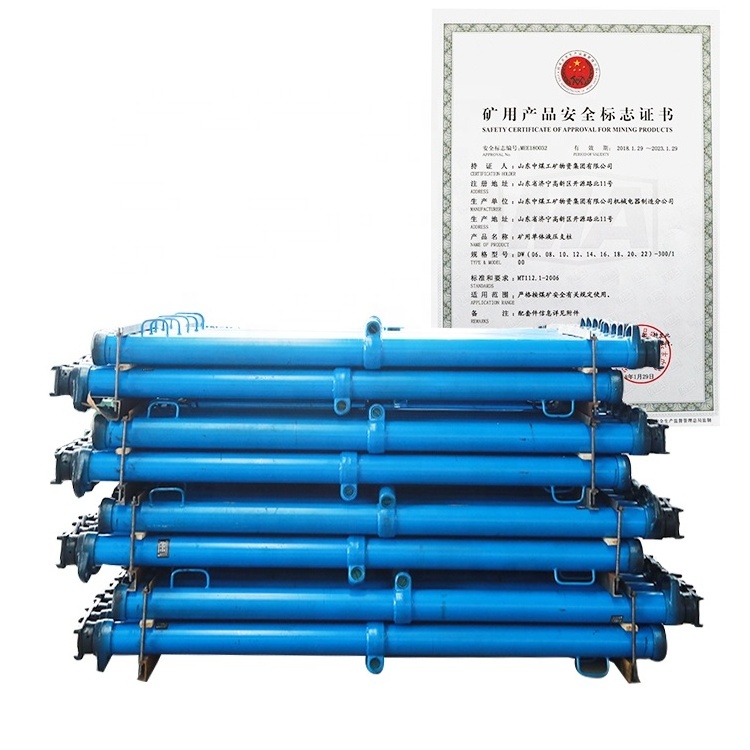

Photos of DW Mining Supporting Acrow Prop Single Hydraulic Prop For Sale
