Quick Details
-
Weight:
-
5kg
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sailingbikes
-
Model Number:
-
Jumper
-
Name:
-

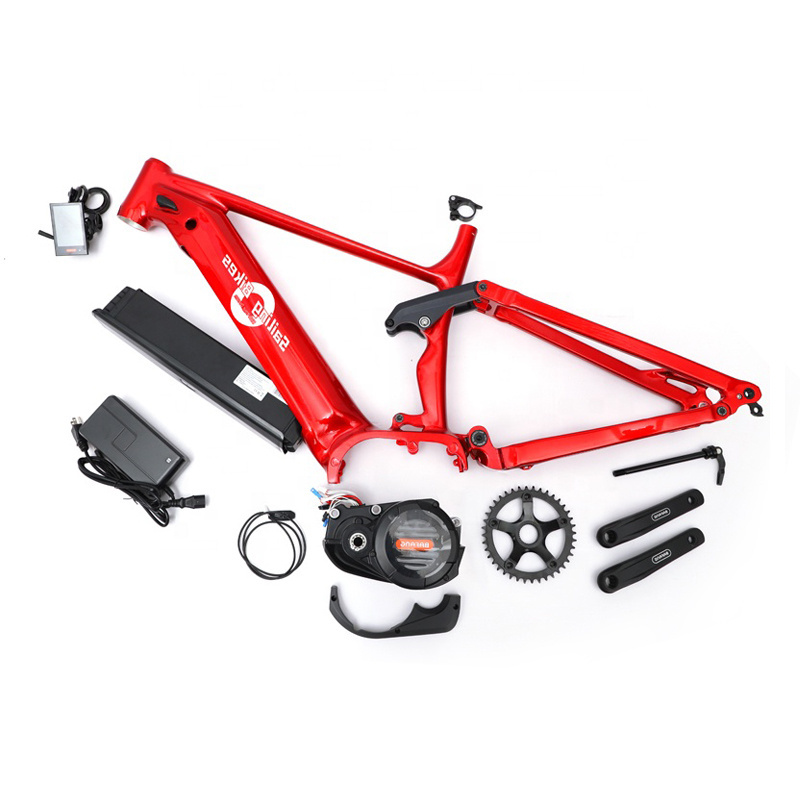

Aluminum frame with full suspension M620 motor e-bike frame
-
Frame Size:
-
18''/19.5''
-
Surface:
-
Weldless Finish
-
Material:
-
Aluminum Alloy 6061
-
Motor:
-
Bafang M620 Motor 1000W
-
Battery:
-
Hidden Battery
-
Headset:
-
1-1/8" to 1-1/2"
-
Seatpost:
-
30.9mm
-
Wheel size:
-
27.5''/29''
Quick Details
-
Size:
-
48 - 52cm, 18''/19.5'' * 27.5''/29''
-
Use:
-
Mountain Bikes, Road Bicycles, Electric Mountain Bike
-
Type:
-
EMTB Frame
-
Weight:
-
5kg
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sailingbikes
-
Model Number:
-
Jumper
-
Name:
-
Aluminum frame with full suspension M620 motor e-bike frame
-
Frame Size:
-
18''/19.5''
-
Surface:
-
Weldless Finish
-
Material:
-
Aluminum Alloy 6061
-
Motor:
-
Bafang M620 Motor 1000W
-
Battery:
-
Hidden Battery
-
Headset:
-
1-1/8" to 1-1/2"
-
Seatpost:
-
30.9mm
-
Wheel size:
-
27.5''/29''
Aluminum Alloy Fat Tire E-bike Hybrid City Road Mountain Electric Dirt Bike Steel Fixed Frame Downhill Ebike M620 Frame
Product Description
|
Sailingbikes 48V/52V 1000W G510 Full Suspension
Electric Bike Frame
|
|
|
Item name
|
Jumper
|
|
Motor
|
Bafang MM M620, 48V/52V 750W/1000W
|
|
Wheel
|
27.5''/29''
|
|
Head set size
|
1-1/8" to 1-1/2",φ28.6 x 44-55 x 30 or 39.8 (bottom) mm
H:7.5 + 2.8=10.3 + 1 mm
|
|
F/R hub size
|
F:15 x 110mm/R:12 x 148 mm
|
|
Rear thru axle
|
12x175mm
|
|
Rear Suspension eye to eye x travel
|
190 × 45 mm ( 7.48 × 1.77 inch)
|
|
Seat post diameter
|
30.9mm
|
|
N.W./ G.W.
|
5kg/6kg
|
|
Package size
|
1pc/ctn, 118 x 22 x 60cm
|
|
Rest components are optional.
The logo is customizable.
|
|
|
Size
|
ST
|
CS
|
HTA
|
STA
|
BD
|
HT
|
WB
|
S/SH
|
FO
|
|
M
|
457
|
500
|
65
|
73
|
160
|
130
|
1315
|
627/745
|
568
|
|
L
|
495
|
500
|
65
|
73
|
160
|
130
|
1315
|
627/745
|
568
|
