Quick Details
-
Power:
-
38kw
-
Min. Lifting Height:
-
18m
-
Table Size:
-
1830*760*1150mm
-
Overall Dimensions:
-
9080*2490*2680mm
-
Weight:
-
10600 kg
-
Product name:
-
Mobile Sky Lift 20m Hydraulic Working Platform XGA20 for sale
-
Maximum Grade Ability:
-
45%
-
Carrying Capacity:
-
Weight Level
-
Usage:
-
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
-
Running Mode:
-
Moving
-
Type:
-
Telescoping Lift
-
Quality:
-
Good Quality
-
Feature:
-
Explosion-Proof, Insulating
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
maxizm
-
Power:
-
38kw
-
Min. Lifting Height:
-
18m
-
Table Size:
-
1830*760*1150mm
-
Overall Dimensions:
-
9080*2490*2680mm
-
Weight:
-
10600 kg
-
Product name:
-
Mobile Sky Lift 20m Hydraulic Working Platform XGA20 for sale
-
Maximum Grade Ability:
-
45%
-
Carrying Capacity:
-
Weight Level
-
Usage:
-
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
-
Running Mode:
-
Moving
-
Type:
-
Telescoping Lift
-
Quality:
-
Good Quality
-
Feature:
-
Explosion-Proof, Insulating
-
Certification:
-
CE
Mobile 20m Hydraulic Lifting Platform XGA20 for sale
1.Feature:
articulated boom lifts series cover 16m to 26m in height, which are safe and reliable, efficient in crossing obstacles, easy to operate and widely used in various high-altitude operations.
Advantages and highlights:
1.Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles;
2.Compact and narrow turntable eliminates tail swing and improves operation efficiency;
3.Work platform is enabling to extend out, enlarging the work space, together with the foldable fence making the transportation easier;
4.Full - range work; direct and friendly control panel easy to control;
5.Platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies.
2.Parameter :
|
Item |
Unit |
Parameter |
|
Overall length of complete machine |
mm |
9080 |
|
Overall width of complete machine |
mm |
2490 |
|
Overall height |
mm |
2680 |
|
Wheelbase |
mm |
2500 |
|
Max. working height |
m |
20.4 |
|
Max. platform height |
m |
18.4 |
|
Max. working range |
m |
11.9 |
|
Max. carrying weight |
kg |
230 |
|
Scope of luffing of No.1 arm |
° |
0~+70 |
|
Scope of luffing of Boom No.2 |
° |
0~+75 |
|
Crank arm luffing range |
° |
-65~70 |
|
Slewing angle of turntable |
° |
360 |
|
Max. Tail swing |
mm |
0 |
|
Dimension of platform |
mm |
1830×760×1150 |
|
Slewing angle of platform |
° |
160 |
|
Overall weight |
kg |
10600 |
|
Max. traveling speed |
km/h |
6 |
|
Min. turning radius |
m |
6 |
|
Min. ground clearance |
mm |
230 |
|
Max. gradeability |
% |
45 |
|
Specification of tire |
355/55D625 |
|
|
Engine model |
404D-22 |
|
|
Engine rated power |
kW/(r/min) |
38/(3000) |

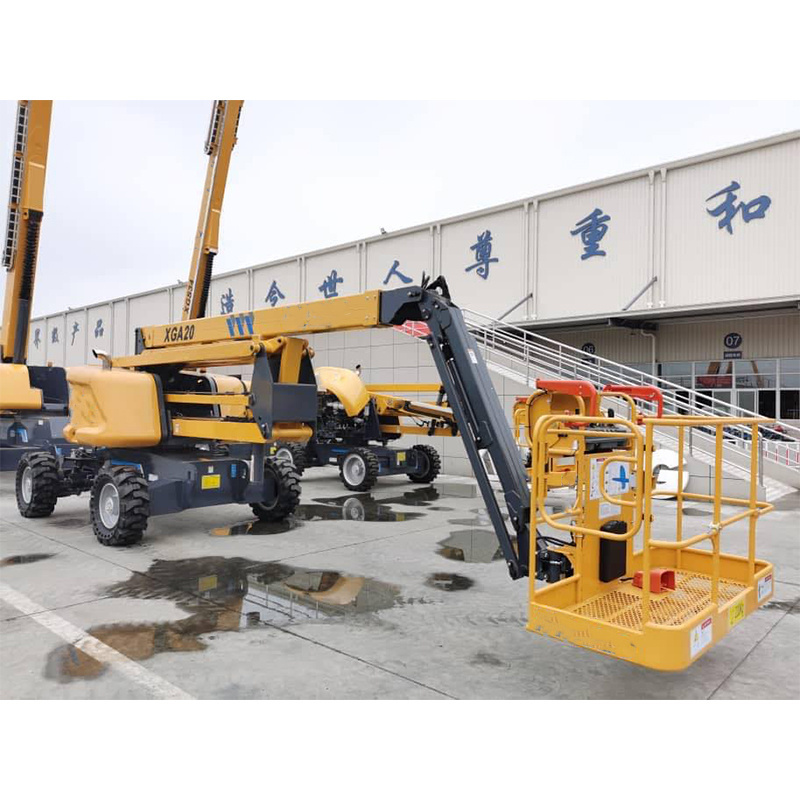

3. Photo :
