Quick Details
-
Input Voltage(V):
-
230V
-
Lifespan (hours):
-
5000
-
Working Time (hours):
-
5000
-
Product Weight（kg）:
-
0.2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
E-DEN
-
Working Lifetime(Hour):
-
5000
-
Beam Angle(°):
-
180
-
Application1:
-
Rubber mold drying
-
Application2:
-
Capacitors plate drying
-
Application3:
-
Printed circuit welding
-
Application4:
-
wave soldering machine
-
Application5:
-
chocolate melting
-
Application6:
-
Heat curing adhesive
-
Application7:
-
Offest printing machine
-
Application8:
-
Silk-screen printing machine
-
Application9:
-
Label printing machine
-
Application10:
-
Flexo printing machine
Quick Details
-
Warranty(Year):
-
5000 hours
-
Lamp Luminous Efficiency(lm/w):
-
>18
-
Color Temperature(CCT):
-
1800K-2600K
-
Input Voltage(V):
-
230V
-
Lifespan (hours):
-
5000
-
Working Time (hours):
-
5000
-
Product Weight（kg）:
-
0.2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
E-DEN
-
Working Lifetime(Hour):
-
5000
-
Beam Angle(°):
-
180
-
Application1:
-
Rubber mold drying
-
Application2:
-
Capacitors plate drying
-
Application3:
-
Printed circuit welding
-
Application4:
-
wave soldering machine
-
Application5:
-
chocolate melting
-
Application6:
-
Heat curing adhesive
-
Application7:
-
Offest printing machine
-
Application8:
-
Silk-screen printing machine
-
Application9:
-
Label printing machine
-
Application10:
-
Flexo printing machine

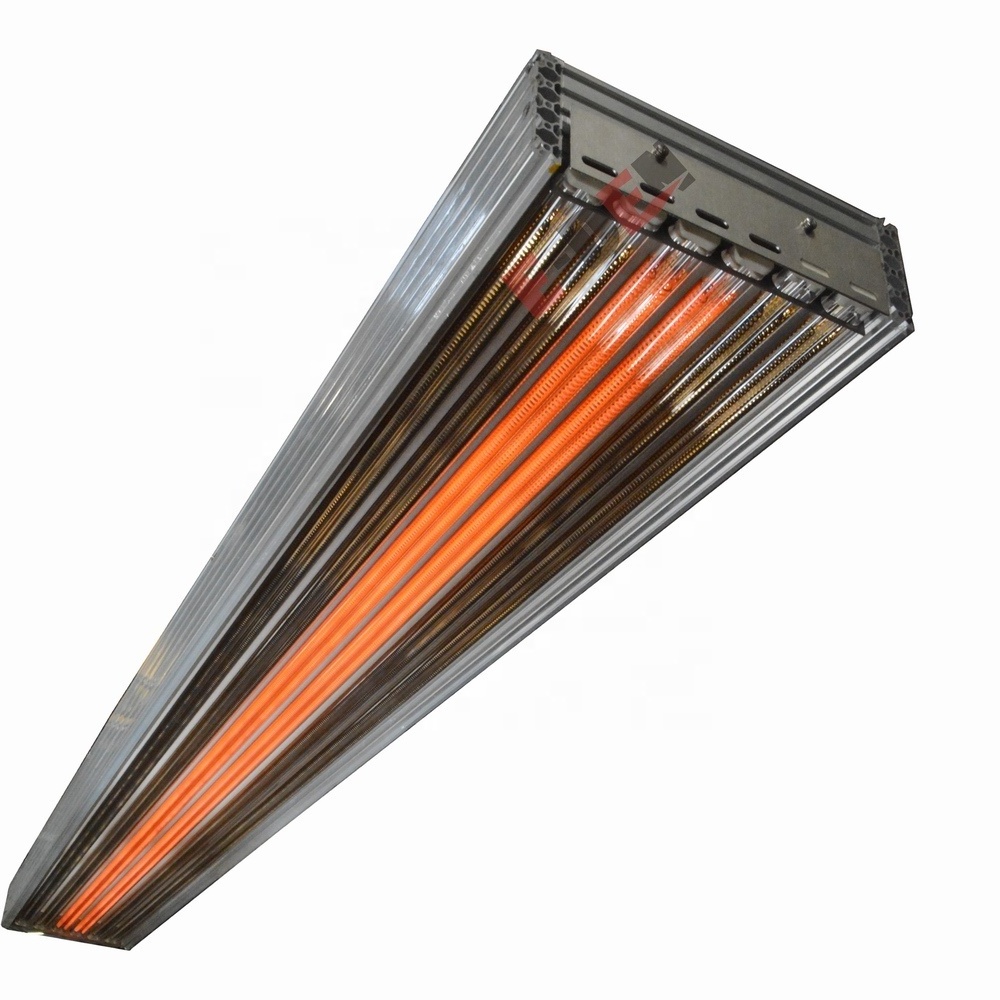

E-DEN Halogen Infrared Heater Lamps / Advantages
1: Can switch on and off frequently
2: 1~2 seconds fast response time to full power heating
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
4: Accurate(±1 ℃)heating temperature control with SCR regulator
5: Small installation space, flexible horizontal or vertical burning position
6: For all industrial applications, the highest working temperature up to 1000 ℃
7:Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects
8: Different objects different matched IR radiation wavelength Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output The highest surface power output of short wave lamp is 200KW/M
2
, Fast response medium wave lamp is 130KW/M
2
, Carbon medium wave lamp is 100KW/M
2
, Medium wave lamp is 60KW/M
2
.
10: We guarantee 5000 hours average working life.
|
Single Tube IR Halogen Quartz Heater Lamp
|
|
|
|
|
|
|
||||||
|
Peak wavelength
|
1.0-1.4 μm
|
|
|
|
|
|
||||||
|
Heating filament
|
Tungsten
|
|
|
|
|
|
||||||
|
Filament working temperature
|
1800℃-2200℃
|
|
|
|
|
|
||||||
|
Response time
|
1 second
|
|
|
|
|
|
||||||
|
Diameter
|
10mm
|
11mm
|
12mm
|
14mm
|
15mm
|
19mm
|
||||||
|
Max. Length
|
1.1m
|
1.1m
|
1.5m
|
2.0m
|
2.0m
|
2.5m
|
||||||
|
Reflector
|
White ceramic or Gold reflector
|
|
|
|
|
|
||||||
|
Burning position
|
Horizontal or Vertical
|
|
|
|
|
|
||||||
According to the different ending caps, single tube infrared quartz heaters can be finished in the following ending cap types.
Fast response medium wave infrared lamp
can be switched on/off the same as short wave lamps in a short time, and the range of IR radiation wave is 1.4-2.0μm. The especial fast medium wave can heat the surface and thin layers quickly. Fast medium wave lamps can be made in all lengths up to 6 meter long. The twin tube designed lamps are stable and its high power density lamp can transfer high energy to the long material.
|
Fast response medium wave twin tube IR lamp
|
|
|
||
|
Peak wavelength
|
1.4-2.0 μm
|
|
||
|
Response time
|
1-2 seconds
|
|
||
|
Heating filament
|
Tungsten
|
|
||
|
Filament working temperature
|
1500℃-1800 ℃
|
|
||
|
Max. surface power density
|
130kw/m
2
|
|
||
|
Cross Section
|
23×11mm
|
33×15mm
|
||
|
Max. Length
|
4.5m
|
6.0m
|
||
|
Reflector
|
White ceramic
or Gold
|
|
||
|
Burning position
|
Horizontal or Vertical
|
|
||
According to the configuration of different heating filament and ending cables, medium wave twin tube infrared lamps can be produced in the following one side or two side connection configuration.
Short wave infrared lamp
is designed with high heating power, the range of radiation wave is 1.0-1.4μm, it is particularly suited for fast response heating processes. This short wave infrared radiation penetrates more deeply into materials, as they can obtain their full-efficiency within seconds. In addition, a white or gold reflector can be fixed directly on the short wave infrared lamp to improve the energy radiation on the heating materials.
|
Short wave twin tube IR lamp
|
|
|
||
|
Peak wavelength
|
1.0-1.4μm
|
|
||
|
Response time
|
1 second
|
|
||
|
Heating filament
|
Tungsten
|
|
||
|
Filament working temperature
|
1800℃-2200℃
|
|
||
|
Max. surface power density
|
200kw/m
2
|
|
||
|
Cross Section
|
23×11mm
|
33×15mm
|
||
|
Max. Length
|
4.5m
|
6.0m
|
||
|
Reflector
|
White ceramic
or Gold
|
|
||
|
Burning position
|
Horizontal or Vertical
|
|
||
