Product name:
-
Ftth CATV optical receiver mini node 2 RF +1 Pon loop out
-
Application:
-
HFC&CATV&FTTX
-
Fiber Cable Interface:
-
SC/APC
-
Input Wavelength:
-
1310nm/1490nm/1550nm
-
Loop-out Wavelength:
-
1310nm/1490nm
-
Bandwidth:
-
47~1006MHz
-
AGC range:
-
-15~0dbm
-
Output Interface:
-
1 Pon+ 2RF, 1 Pon+ 1RF customized
-
Dimensions:
-
128mm*80mm*26mm
-
Certificate:
-
,CE, ROHS
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
ML-WDM-OR20
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MICROLINK or OEM
-
Use:
-
FTTH
-
Warranty Time:
-
5 years
-
Product name:
-
Ftth CATV optical receiver mini node 2 RF +1 Pon loop out
-
Application:
-
HFC&CATV&FTTX
-
Fiber Cable Interface:
-
SC/APC
-
Input Wavelength:
-
1310nm/1490nm/1550nm
-
Loop-out Wavelength:
-
1310nm/1490nm
-
Bandwidth:
-
47~1006MHz
-
AGC range:
-
-15~0dbm
-
Output Interface:
-
1 Pon+ 2RF, 1 Pon+ 1RF customized
-
Dimensions:
-
128mm*80mm*26mm
-
Certificate:
-
,CE, ROHS

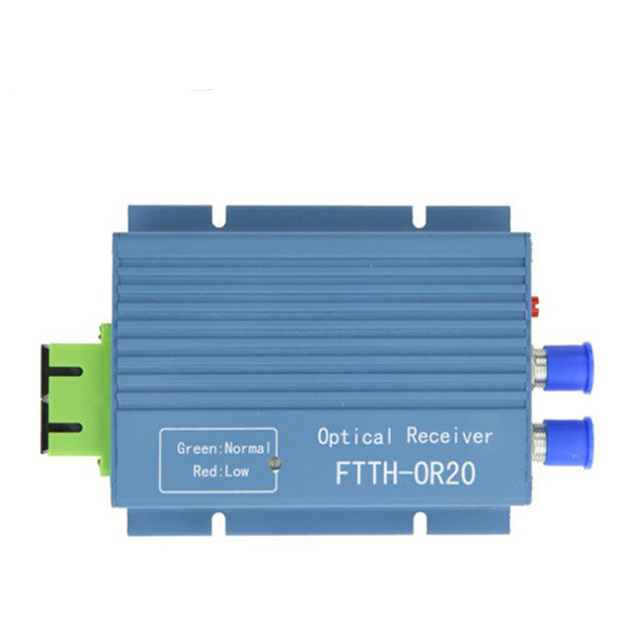

Ftth CATV optical receiver mini node 2 RF +1 Pon loop out 1550nm Fiber Optic equipment Receiver AGC micro ftth node with WDM
Product Description
FEATURE
Low-power optical detector, GaAs
module
and optical AGC technology
RF output for both analog and digital CATV access
WDM to perform both RF output and Pon loop out
Stable and reliable AGC function
ATT wide adjusable
0 ~18dB
Compact structure mini deisgn to save space
Low power comsumption (less than 2W)
DATASHEET
|
2 RF +1 Pon loop out 1550nm Fiber Optic equipment Receiver AGC micro ftth node with WDM
|
|
|
|
|
||||
|
Optical Interface
|
Input Wavelength
|
|
1310nm/1490nm/1550nm
|
|
||||
|
|
Output Wavelength
|
|
1310nm/1490nm
|
|
||||
|
|
Operation Wavelength
|
|
1540nm~1560nm
|
|
||||
|
|
Channel Separation
|
|
≥40dB
|
|
||||
|
|
Response
|
|
≥40 A/W
|
|
||||
|
|
Optical Power Range (Analog TV)
|
|
0dBm~-15dBm
|
|
||||
|
|
Optical Power Range (Digital TV )
|
|
0dBm~-23dBm
|
|
||||
|
|
Reflection Loss
|
|
≥55dB
|
|
||||
|
|
Fiber Input
|
|
SC /APC
|
|
||||
|
|
Pon Loop Out
|
|
SC/APC, SC/UPC optional
|
|
||||
|
|
Bandwidth
|
|
47~1006 MHz
|
|
||||
|
|
RF output reflection
|
|
≥16dB@ 47~550MHz, ≥14dB@1006MHz
|
|
||||
|
|
In-band flatness
|
|
±0.75dB@47~1006MHz
|
|
||||
|
|
RF output level
|
|
≥80dBuv (Pin:-9~0dBm)
|
|
||||
|
|
AGC control range
|
|
0~-15dBm
|
|
||||
|
|
AGC character
|
|
≤±0.5dB (Pin:-10~0dBm)
|
|
||||
|
|
ATT
|
|
0~18dB
|
|
||||
|
|
Carrier to Noise Ratio
|
|
≥51dB
|
|
||||
|
|
Output impendance
|
|
75Ω
|
|
||||
|
|
MER
|
|
>36dB (Pin=-15~+0dBm)
|
|
||||
|
|
|
|
>28dB (Pin=-22dBm)
|
|
||||
|
|
BER
|
|
<1.0E-9 (Pin=-15~+0dBm)
|
|
||||
|
|
|
|
<1.0E-9(Pin=-22dBm)
|
|
||||
|
|
CNR
|
|
≥51dB (Pin=-2dBm)
|
|
||||
|
|
CTB
|
|
≥65dB(Pin=-2dBm)
|
|
||||
|
|
CSO
|
|
≥62dB(Pin=-2dBm)
|
|
||||
|
Power Supply
|
External AC100~240V, DC5V, <2W
|
|
|
|
||||
|
Operating temperature
|
-20℃ ~+55℃
|
|
|
|
||||
|
Storage Temperature
|
-
40℃~75℃(humidity 5~90%)
|
|
|
|
||||
