Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MLDCNC
-
Model Number:
-
Z5150B/1
-
Dimension(L*W*H):
-
1090x905x2530
-
Weight (KG):
-
1350 KG
Quick Details
-
type:
-

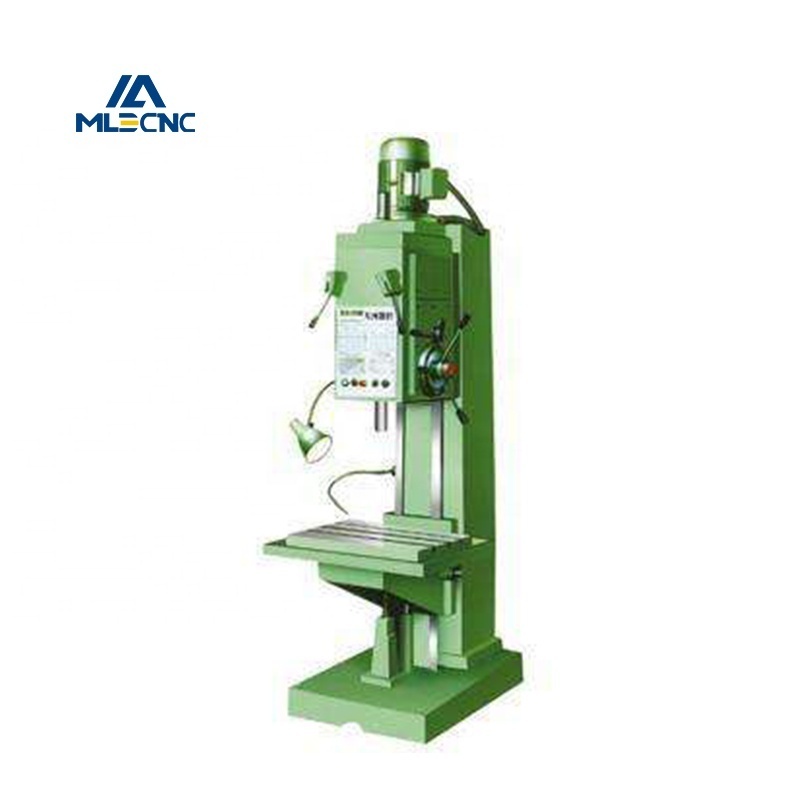

Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
50
-
Range of Spindle Speed(r.p.m):
-
31.5 - 1400 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MLDCNC
-
Model Number:
-
Z5150B/1
-
Dimension(L*W*H):
-
1090x905x2530
-
Weight (KG):
-
1350 KG
Features:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,drilling,
boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very
convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very
convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
|
Specifications
|
Z5140
|
Z5150
|
z5163
|
z5180
|
z51100
|
|
Max drilling dia
|
40mm
|
50mm
|
63
|
80
|
100
|
|
Spindle taper
|
MT4
|
MT5
|
MT5
|
MT6
|
MT6
|
|
Spindle travel
|
250mm
|
250mm
|
250
|
250
|
310
|
|
Headstock travel(manual)
|
200mm
|
200mm
|
250
|
250
|
250
|
|
Spindle speeds
|
31.5-1400r/min
|
31.5-1400r/min
|
40-570r/min
|
40-570r/min
|
26-320r/min
|
|
Feed range
|
0.056-1.80mm/r
|
0.056-1.80mm/r
|
0.1-0.78mm/r
|
0.1-0.78mm/r
|
0.096-0.717mm/r
|
|
Table size
|
800x320mm
|
800x320mm
|
650*550
|
650*550
|
760*650
|
|
Table vertical travel
|
300mm
|
300mm
|
300mm
|
300mm
|
300mm
|
|
Max.distance spindle nose to table
|
750mm
|
750mm
|
800mm
|
800mm
|
850mm
|
|
Main motor power
|
3kw
|
3kw
|
5.5KW
|
5.5KW
|
7.5KW
|
|
Overall dimension
|
1090*905*2465mm
|
1090*905*2465mm
|
1455*965*2790mm
|
1455*965*2790mm
|
1465*970*3170mm
|
|
N/W
|
1300kg
|
1350kg
|
2500kg
|
2600kg
|
3500kg
|
