Quick Details
-
Brand Name:
-
Strong
-
Power (kW):
-
2.2
-
Weight (KG):
-
220
-
Marketing Type:
-
Hot Sale Product 2024
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Bending diameter range:
-
10-26mm steel pipe (wall thickness less than 2mm)
-
Bending angle range:
-
5 degrees - 180 degrees
-
Spindle speed:
-
20 rpm
-
Motor power:
-
2.2KW
-
Rated voltage:
-
three-phase AC 380V 520HZ
-
Machine weight:
-
180KG
-
Machine size:
-
800mm*650mm*900mm
-
Product:
-
YWG-25 CNC Tube Bending Machine
-
Used for:
-
stainless steel pipe bending machine, iron and aluminium pipe
Quick Details
-
Max. Bending Angle (Deg):
-
180
-
Bending Precision (Deg):
-
1°
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Strong
-
Power (kW):
-
2.2
-
Weight (KG):
-
220
-
Marketing Type:
-
Hot Sale Product 2024
-
Machine Type:
-
Pipe and Tube Bending Machine
-
Bending diameter range:
-
10-26mm steel pipe (wall thickness less than 2mm)
-
Bending angle range:
-
5 degrees - 180 degrees
-
Spindle speed:
-
20 rpm
-
Motor power:
-
2.2KW
-
Rated voltage:
-
three-phase AC 380V 520HZ
-
Machine weight:
-
180KG
-
Machine size:
-
800mm*650mm*900mm
-
Product:
-
YWG-25 CNC Tube Bending Machine
-
Used for:
-
stainless steel pipe bending machine, iron and aluminium pipe
Products Description
Description

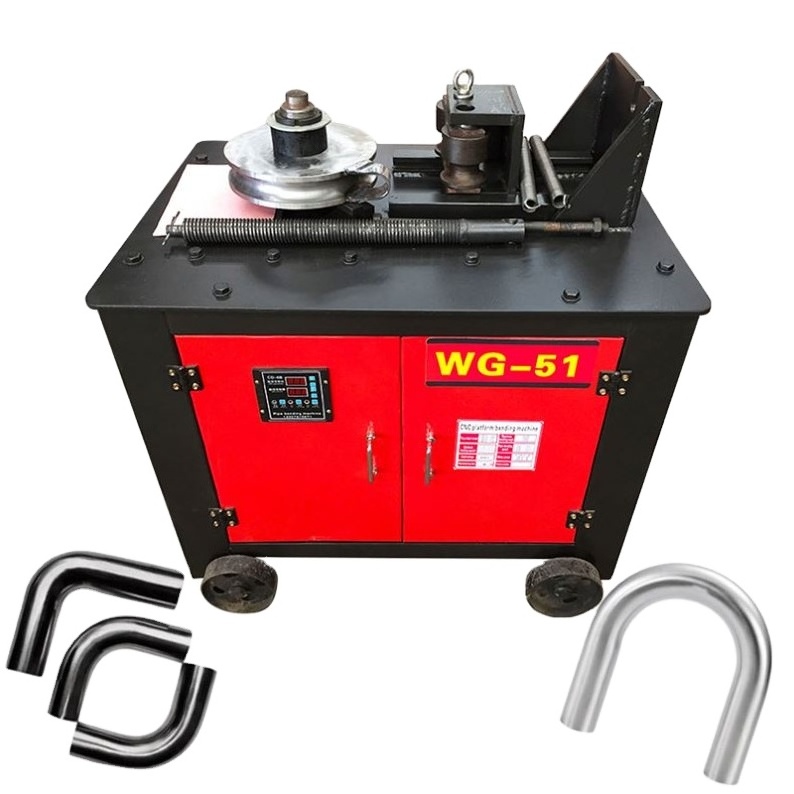

WG-38/51/76 CNC steel tube bending machine is mainly used for bending different kinds of tube materials,for example round or square mild carbon steel tube,201 or 304 stainless steel tube,rectangular steel tube,alumimum tube,cooper tube or other special shaped steel tube etc. And this machine always bend tubes into different angles from 5 to 180 degrees.
This model is our latest technical achievements of the research and development.Having the following characteristics:
1.Use Micro CNC computer panel control the bending angles and batches.
2.Gear drive is durable and maintenance is convenient,only add the grease oil into the gear box.
3.Thin tube and thick tube could work well by this machine.
4.Foot switch add CNC operation,let the tube processing so easy and convenient.
Machine Parameter
|
Electric Small Semi-Automatic CNC Pipe Bending Machine Technical Parameter
|
|
|
|
|
|
|||||
|
Model
|
WG-26
|
WG-38
|
WG-51
|
WG-76
|
WG-76Heavy
|
|||||
|
Engine Type
|
Electric Type
|
|
|
|
|
|||||
|
Bending diameter
|
≤26mm
|
≤38mm
|
≤51mm
|
≤76mm
|
≤76mm
|
|||||
|
Thickness Scope
|
≤2mm
|
≤3mm
|
≤3mm
|
≤3mm
|
≤5mm
|
|||||
|
High bending speed
|
10-20r/min
|
10-20r/min
|
4-6r/min
|
3-5r/min
|
3-5r/min
|
|||||
|
Bending Angles Quantity
|
9
|
9
|
9
|
9
|
9
|
|||||
|
Max bending angle
|
180°
|
180°
|
180°
|
180°
|
180°
|
|||||
|
Min bending angle
|
5°
|
5°
|
5°
|
5°
|
5°
|
|||||
|
Motor Power
|
2.2kw
|
3kw
|
3kw
|
4kw
|
5.5kw
|
|||||
|
Power supply
|
380V,50Hz,3Phase Alternating Current Or Customized
|
|
|
|
|
|||||
|
Foot switch voltage
|
DC 5V
|
DC 5V
|
DC 5V
|
DC 5V
|
DC 5V
|
|||||
|
Dimensions(mm)
|
800*650*900
|
900*800*1000
|
950*850*1000
|
1000*900*1100
|
1100*900*1100mm
|
|||||
|
Weight
|
180KG
|
260kg
|
320kg
|
350kg
|
400kg
|
|||||
Product packaging
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
