Quick Details
-
Brand Name:
-
Chuci
-
Year:
-
2022
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1020*700*1800mm
-
Weight (T):
-
1.5 T
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2022
-
Power Source:
-
Hydraulic
-

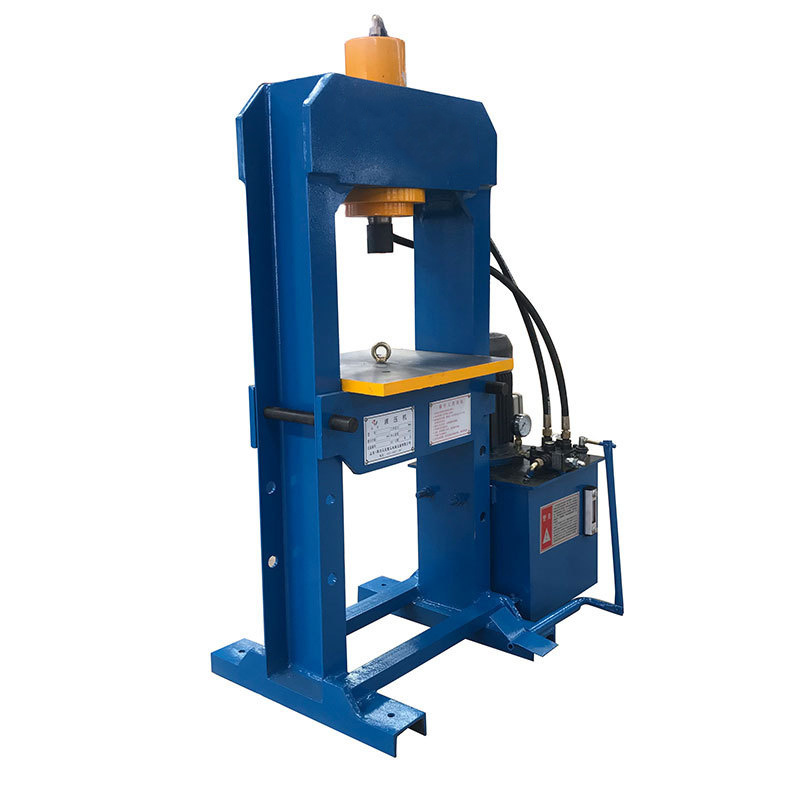

Product name:
-
H Frame Hydraulic Press
-
Keyword:
-
Hydryalic Press
-
Function:
-
Metal Processing
-
Application:
-
Auto Parts
-
Type:
-
H-frame
-
Usage:
-
Metal Press
-
Color:
-
Customizable
-
Name:
-
Hydraulic Punch Press Machine
-
CNC or Not:
-
Nomal
Quick Details
-
Machine Type:
-
H Frame Hydraulic Press
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Chuci
-
Year:
-
2022
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1020*700*1800mm
-
Weight (T):
-
1.5 T
-
Motor Power (kw):
-
7.5 kw
-
Marketing Type:
-
New Product 2022
-
Power Source:
-
Hydraulic
-
Product name:
-
H Frame Hydraulic Press
-
Keyword:
-
Hydryalic Press
-
Function:
-
Metal Processing
-
Application:
-
Auto Parts
-
Type:
-
H-frame
-
Usage:
-
Metal Press
-
Color:
-
Customizable
-
Name:
-
Hydraulic Punch Press Machine
-
CNC or Not:
-
Nomal
| Model |
Max. pressure (KN) |
Hydraulic presssure (Mpa) |
Stroke of cylinder rod(mm) | Working speed (mm/s) | Size of worktable (mm) | Adjustment distance or fowktable (mm×n) |
Motor power (kw) |
Net weight (kg) |
| MDYy63/30 | 630 | 30 | 300 | 5.8/H7.7 | 890×400 | 250×3 | 4 | 1050 |
| MDYy80/30 | 800 | 30 | 300 | 4.6/H6.1 | 890×415 | 250×3 | 4 | 1325 |
| MDYy100/35 | 1000 | 30 | 350 | 7.6/H10.5 | 850×447 | 250×3 | 7.5 | 1580 |
| MDYy150/35 | 1500 | 30 | 350 | 4.9/H6.7 | 1000×530 | 300×2 | 7.5 | 2410 |
| MDYy200/35 | 2000 | 30 | 350 | 3.9/H5.8 | 1000×550 | 300×2 | 7.5 | 3105 |
| MDYy300/35 | 3000 | 28.5 | 350 | 5.9/H8.5 | 1000×660 | 300×2 | 22 | 4200 |
Main features:
1. Optimally designed steel-frame structure, is sturdy and durable
2. Single piston double-acting hydraulic oil cylinder, is durable
3. Up stroke and down stroke of cylinder rod controlled by manual, is convenient and flexible
4. Beam of work platform moves lifting device from up to down, is convenient and easy
5. Piston rod chromium plating laye 5 μ m
6. Sealing element grade A
7. Stroke prevention pain & stainless steel strip is standard
Standard equipments:
1. Full-closed slide plate
2. V block
3. Work table
4. Back protection cover
5. Beam of work platform
