Quick Details
-
Application:
-
Other
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HOPESTAR
-
Model Number:
-
Q195
-
Color:
-
Silver White
-
Zinc Coating:
-
40-180 g/m2
-
Thickness:
-
0.25-2.0mm
-
Length:
-
3 Meters or as Customer's Requirement
-
Surface treatment:
-
Hot Dipped Galvanized
-
Certificate:
-
ISO 9001
-
Packing:
-
Standard Export Packing
-
MOQ:
-
3000 PCS
-
Width:
-
25-155 mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Other
-
Project Solution Capability:
-
Others
-
Application:
-
Other
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HOPESTAR
-
Model Number:
-
Q195
-
Color:
-
Silver White
-
Zinc Coating:
-
40-180 g/m2
-
Thickness:
-
0.25-2.0mm
-
Length:
-
3 Meters or as Customer's Requirement
-
Surface treatment:
-
Hot Dipped Galvanized
-
Certificate:
-
ISO 9001
-
Packing:
-
Standard Export Packing
-
MOQ:
-
3000 PCS
-
Width:
-
25-155 mm

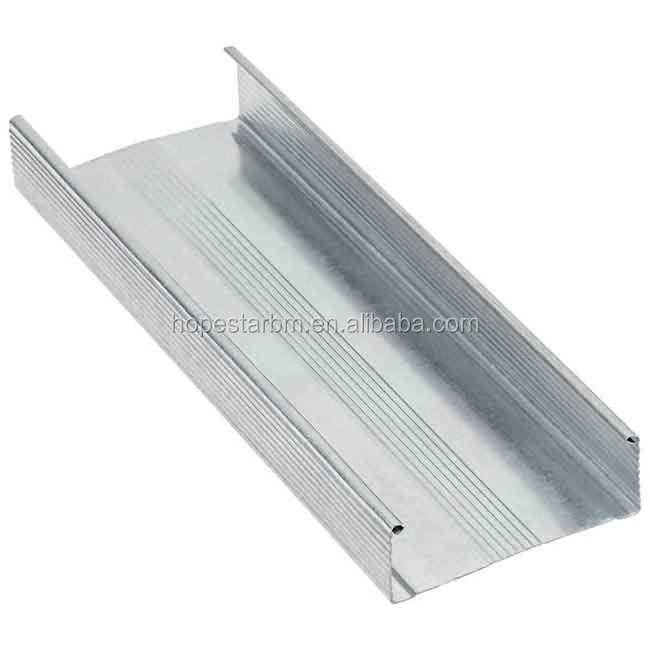

Steel Profile/ 3-5/8 in. x 10 ft. 20-Gauge Galvanized Steel Drywall Stud/Track/Light Steel Keel
Middle East Metal Stud Series :
|
Main Channel |
38*12 38*11 38*10 |
|
Furring Channel |
68*35*22 |
|
Wall angle |
25*25 21*21 22*22 24*24 30*30 |
|
C stud |
50*35 70*35 70*32 73*35 |
|
U track |
52*25 72*25 75*25 |
Australian Metal Stud Series:
|
top cross rail |
26.3*21*0.75 |
|
25*21*0.75 |
|
|
Furring Channel |
28*38*0.55 |
|
16*38*0.55 |
|
|
Furring Channel track |
28*20*30*0.55 |
|
16*26*13*0.55 |
|
|
Stud
|
64*33.5*35.5 |
|
51*33.5*35.5 |
|
|
76*33.5*35.5*0.55 |
|
|
92*33.5*35.5*0.55 |
|
|
150*33.5*35.5*0.55 |
|
|
Track |
51*32 64*32 76*32 92*32 150*32 |
|
Wall Angle |
30*10 30*30 35*35 |
Southeast Asia Metal Stud Series:
|
Main channel |
38*12 |
|
Top Cross Rail |
25*15 |
|
Furring channel |
50*19 |
|
Cross Channel |
36*12 38*20 |
|
Wall Angle |
25*25 |
|
Stud |
63*35 76*35 |
|
Track |
64*25 77*25 |
American Metal Stud Series:
| Main channel | 38*12 |
| Furring Channel | 35*72*13 |
| Wall Angle | 25*25 30*30 |
| Stud | 41*30 63*30 92*30 150*30 |
| Track | 43*25 63*25 65*25 92*25 152*25 |
European Metal Stud Series:
| CD | 60*27 |
| UD | 28*27 |
| CW | 50*50 75*50 100*50 |
| UW | 50*40 75*40 100*40 |
Item Name:galvanized steel profile
Thickness:0.25-2.0mm.
Usage: drywall / ceiling system.
Function:Fireproof, sound-absorbing.
Surface: Zinc Galvanized.
Packing: Clear tape, 10 or 20 pcs/bundle.
Installation Instruction of Drywall:
The Advantages of Galvanized Structural Steel Profile:
1. Our products’ raw material is high quality hot dipped zinc galvanized steel strip, absolute fireproof and heat insulation, waterproof and antirust, anticorrosive , high durability.
2. Hot dipped zinc galvanized stee strip zinc coating is 40-180g/m2.
3. Double sized galvanization volume make sure that the plaster bone is corrupt and rust resistance.
4. Warm sales in Middle East , Africa , Australia, Malaysia ,and America , which have enjoyed an excellent reputation with high quality and services.
5. Manufacture the special specification products for customers.
6. High quality raw material guarantees the light steel keel of life and good performance of construction.
7. Possese own ten precision cold rolled steel strip production line.
Steel Profile Scene Show:
Packing Details:
