Quick Details
-
Table Travel (Z) (mm):
-
650 mm
-
Travel (W-axis) (mm):
-
300 mm
-
Warranty of core components:
-
13 months
-
Range of Spindle Speed(r.p.m):
-
530 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Production Capacity:
-
25-530rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
380V 415V 220V
-
Dimension(L*W*H):
-
2700x1600x 2100mm, 2700x1600x 2100mm
-
Weight (T):
-
5000 T
-
Product name:
-
Horizontal boring and milling machine for metal TX68 boring machine
-
Spindle bore:
-
85mm
-
Spindle taper:
-
MT5
-
Worktable rapid feed speed:
-
Longitudinal: 25-850mm
-
Worktable rapid feed speed A:
-
Horizontal:850mm
-
Spindle lift speed:
-
216mm/min
-
Longitudinal travel of worktable:
-
1400mm
-
Horizontal travel of worktable:
-
750mm
-
Spindle box travel:
-
650mm
Quick Details
-
Table Size (mm):
-
930x840
-
Table Travel (X) (mm):
-
1400 mm
-
Table Travel (Y) (mm):
-
750 mm
-
Table Travel (Z) (mm):
-
650 mm
-
Travel (W-axis) (mm):
-
300 mm
-
Warranty of core components:
-
13 months
-
Range of Spindle Speed(r.p.m):
-
530 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Production Capacity:
-
25-530rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
380V 415V 220V
-
Dimension(L*W*H):
-
2700x1600x 2100mm, 2700x1600x 2100mm
-
Weight (T):
-
5000 T
-
Product name:
-
Horizontal boring and milling machine for metal TX68 boring machine
-
Spindle bore:
-
85mm
-
Spindle taper:
-
MT5
-
Worktable rapid feed speed:
-
Longitudinal: 25-850mm
-
Worktable rapid feed speed A:
-
Horizontal:850mm
-
Spindle lift speed:
-
216mm/min
-
Longitudinal travel of worktable:
-
1400mm
-
Horizontal travel of worktable:
-
750mm
-
Spindle box travel:
-
650mm

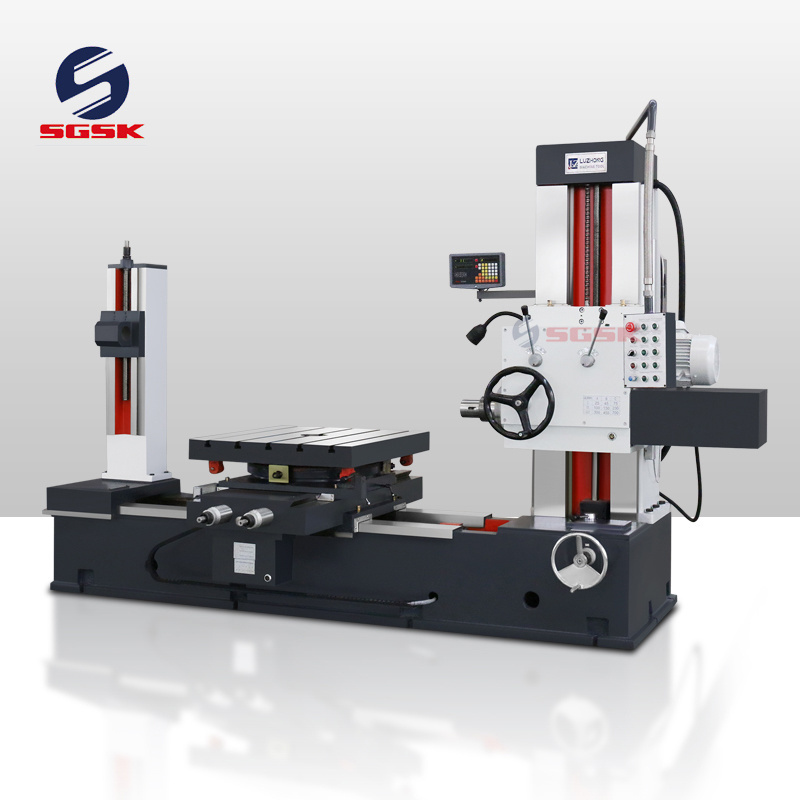

Horizontal boring and milling machine for metal TX68 boring machine
Products Description
Details Images
Product Paramenters
Features:
1.The appearance of beautiful and generous overall layout coordination
2.Fuselage, vertical column, sliding seat are all rectangular guide, good stability
3.Guide rail to take automatic quenching, high wear resistance
4.Digital synchronous display, intuitive and accurate, can improve the efficiency of low cost
Product application:
1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.
2. Drilling, boring and hinge hole can be carried out on the machine tool.
2.Fuselage, vertical column, sliding seat are all rectangular guide, good stability
3.Guide rail to take automatic quenching, high wear resistance
4.Digital synchronous display, intuitive and accurate, can improve the efficiency of low cost
Product application:
1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.
2. Drilling, boring and hinge hole can be carried out on the machine tool.
Product main technical specifications:
|
Specifications
|
Units
|
TX68
|
|
Spindle bore
|
mm
|
85
|
|
Spindle taper
|
|
Morse 5#
|
|
Spindle speed
|
r/min
|
(9steps)25-530
|
|
Worktable rapid feed speed (Longitudinal)
|
Mm/min
|
(6steps)25-850
|
|
worktable rapid feed speed (Horizontal)
|
Mm/min
|
(6steps)25-850
|
|
Spindle lift speed
|
Mm/min
|
216
|
|
Working table size (L*W)
|
mm
|
930x840
|
|
Longitudinal travel of worktable
|
mm
|
1400 (Without Tailstock)
|
|
Horizontal travel of worktable
|
mm
|
750
|
|
Spindle box travel
|
mm
|
650
|
|
Axial travel of spindle
|
mm
|
300
|
|
Overall dimensions
|
mm
|
2700×1600× 2100
|
|
Max. load of worktable
|
T
|
2.5
|
|
N.W
|
kg
|
5000
|
