Quick Details
-
Material:
-
SUS 304
-
Ring Material:
-
SUS 304
-
Tempe Rating:
-
-30~+85 'C
-
Max Pressure:
-
2 MPa
-
Max Volume:
-
60 L/MIN
-
Max Contact Rating:
-
70W
-
Max Switching Voltage:
-
250VAC
-
Max Switching Current:
-
0.5A
-
Max contact Resistance:
-
200 mOhm
-
Keywords:
-
water flow switches
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1-30L/min
-
Place of Origin:
-
Guangdong, China
-
Material:
-
SUS 304
-
Ring Material:
-
SUS 304
-
Tempe Rating:
-
-30~+85 'C
-
Max Pressure:
-
2 MPa
-
Max Volume:
-
60 L/MIN
-
Max Contact Rating:
-
70W
-
Max Switching Voltage:
-
250VAC
-
Max Switching Current:
-
0.5A
-
Max contact Resistance:
-
200 mOhm
-
Keywords:
-
water flow switches

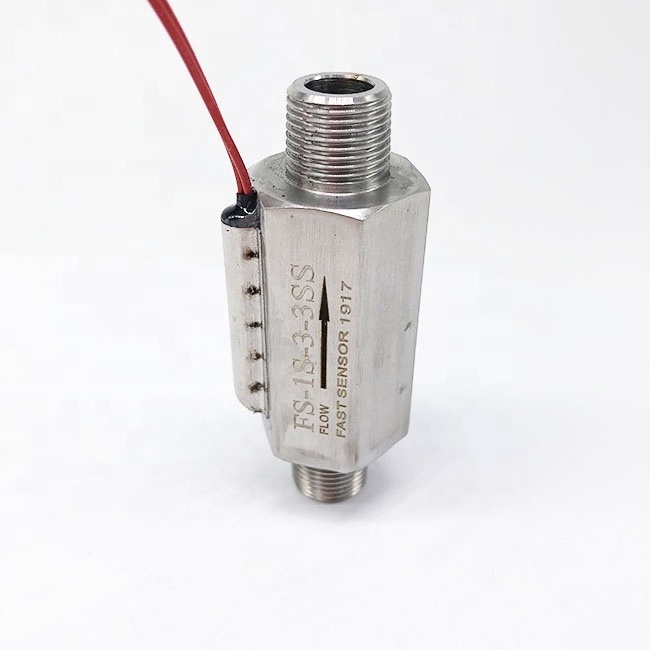

Magnetic electrical control sus304 water flow switches for water heater
Installation:Horizontal or vertical
Electrical data:250VAC/70W/0.5A
Caliber Size:
ZG1/4",ZG3/8",ZG1/2",ZG3/4",ZG1"
Materials:SUS 304
Specification:
|
Application |
Petrochemical industry, water treatment for environmental protection(chiller,heat pump water heater),welding equipment,laser equipment and some other systems for monitor |
|
Origin |
FAST SENSOR |
|
Installation |
Horizontal or Vertical |
|
Product Material |
SUS 304 |
|
Ring material |
SUS 304 |
|
Electrical Data |
250VAC/70W/0.5A |
|
Max pressure |
2 MPa |
|
Max volum |
60L/min |
|
Max contact resistance |
200 mOhm |
|
Thread |
ZG1/4" ZG3/8" ZG1/2" ZG3/4" ZG1” |
|
Cable type |
UL1332-AWG22 |
|
Cable length |
500mm |
|
Cable color |
Blue |
|
Temperature ℃ |
-40~+110 |
|
Order Info. |
For example, FAST-1S-3-2SS |
|
Lowest flow rate:3 L/Min Caliber size:ZG1/4" |
