Quick Details
-
Weight:
-
240kg
-
Size:
-
3310* 1050*1900mm(external size)
-
Power:
-
0.75
-
Weight (KG):
-
900 kg
-
Product name:
-
screw press sludge dewatering machine
-
Type:
-
screw
-
certificate:
-
ISO9001,BV certificate
-
Electrical components:
-
Schneider, Omron
-
Motor:
-
Siemens,SEW,chinese brand motor,or others
-
Operation:
-
Automatic
-
Application:
-
sewage treatment
-
Raw material:
-
SS304 or SS316
-
outlet slduge cake moisture content:
-
75%-85%
-
after-sale service:
-
technology assistance
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PJEP
-
Material:
-
wodden box
-
Weight:
-
240kg
-
Size:
-
3310* 1050*1900mm(external size)
-
Power:
-
0.75
-
Weight (KG):
-
900 kg
-
Product name:
-
screw press sludge dewatering machine
-
Type:
-
screw
-
certificate:
-
ISO9001,BV certificate
-
Electrical components:
-
Schneider, Omron
-
Motor:
-
Siemens,SEW,chinese brand motor,or others
-
Operation:
-
Automatic
-
Application:
-
sewage treatment
-
Raw material:
-
SS304 or SS316
-
outlet slduge cake moisture content:
-
75%-85%
-
after-sale service:
-
technology assistance

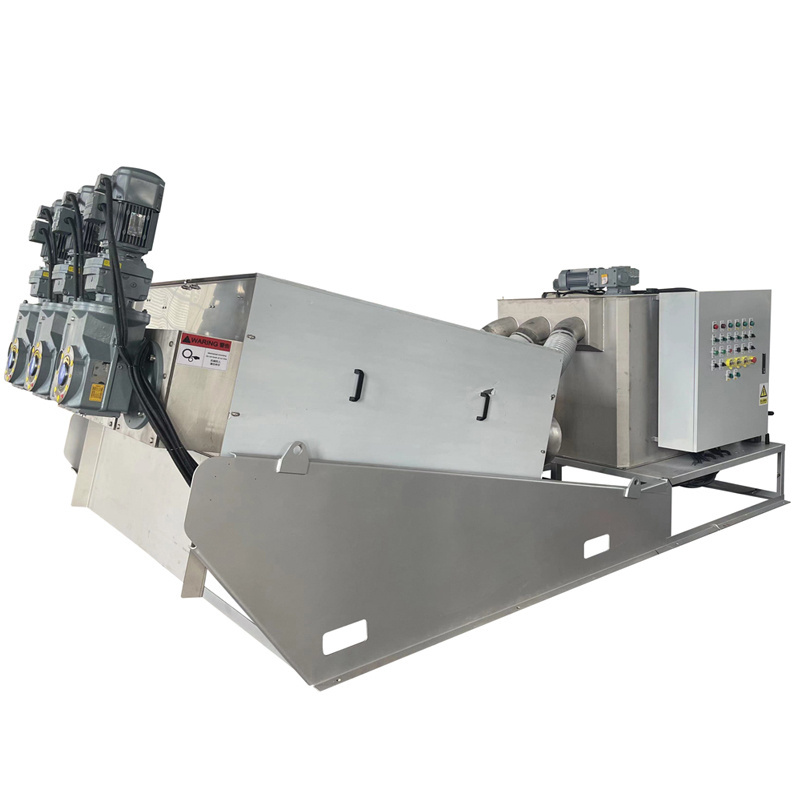

Product Pictures
When the machine starts running,the sludge is pumped into the screw press from the feed inlet port ,then enters into the flocculation mixing
tank,and then gradually goes through screw shaft main body,and at last discharged from the sludge cake outlet port.Because the gaps
between the screw shaft blades will gradually getting narrower,the sludge is bearing heavier pressure.Then the water is gradually
dehydrated.Relying on the self-cleaning function of the fixed plates and the moving plates,block issue can be well avoided .
Produc Attribute
| Model Number | DS handling capacity (KG/H) | External Dimension L(mm)×W(mm)×H(mm) | Net Weight(kg) | Operation Weight(kg) |
| 10000mg/L≤ss≤20000mg/L | ||||
| PJXDL131 | July 14th | 1870× 730× 1065 | 250 | 395 |
| PJXDL132 | 14-28 | 2000× 960× 1070 | 420 | 540 |
| PJXDL251 | 15-30 | 2690× 880× 1500 | 550 | 660 |
| PJXDL252 | 30-60 | 2810× 1120× 1500 | 550 | 660 |
| PJXDL301 | 35-70 | 3310× 1000×1700 | 900 | 1300 |
| PJXDL302 | 70-140 | 3460× 1270×1700 | 1350 | 2000 |
| PJXDL303 | 105-210 | 3630× 1620× 1700 | 1900 | 2700 |
| PJXDL304 | 140-280 | 3960× 2040× 1750 | 2500 | 3600 |
| PJXDL351 | 60-120 | 3610× 1100× 1850 | 1100 | 2000 |
| PJXDL352 | 120-240 | 3820×1410×1850 | 2100 | 3250 |
| PJXDL353 | 180-360 | 4120×1770×1850 | 3100 | 4600 |
| PJXDL354 | 240-480 | 4320× 2290× 1850 | 4100 | 5700 |
| PJXDL401 | 80-160 | 4550×1160×2250 | 2200 | 4200 |
| PJXDL402 | 160-320 | 4870×1680×2250 | 3500 | 6000 |
| PJXDL403 | 240-480 | 4790×2550×2250 | 5500 | 8000 |
| PJXDL404 | 320-640 | 4840×3120×2250 | 7000 | 9500 |
