Quick Details
-
Brand Name:
-
Kasry
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
60000*9000*4000mm
-
Weight (KG):
-
23000
-
Working Length:
-
3.1m-12m/16m
-
Working Width:
-
3m
-
Working Height:
-
0.7m
-
Spray Type:
-
Water-based paint/Oil paint
-
Nozzle Quantity:
-
4+8
-
Nozzle Speed:
-
30 m/min
-
Gas Supply Type:
-
Natural gas/Propane
-
Delivery System:
-
Chain or roller type
-
Working Speed:
-
900-1000 mm/min
Quick Details
-
Machine Type:
-
Powder Coating Line, Painting Equipment, Coating Equipment
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Kasry
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
60000*9000*4000mm
-
Weight (KG):
-
23000
-
Working Length:
-
3.1m-12m/16m
-
Working Width:
-
3m
-
Working Height:
-
0.7m
-
Spray Type:
-
Water-based paint/Oil paint
-
Nozzle Quantity:
-
4+8
-
Nozzle Speed:
-
30 m/min
-
Gas Supply Type:
-
Natural gas/Propane
-
Delivery System:
-
Chain or roller type
-
Working Speed:
-
900-1000 mm/min
|

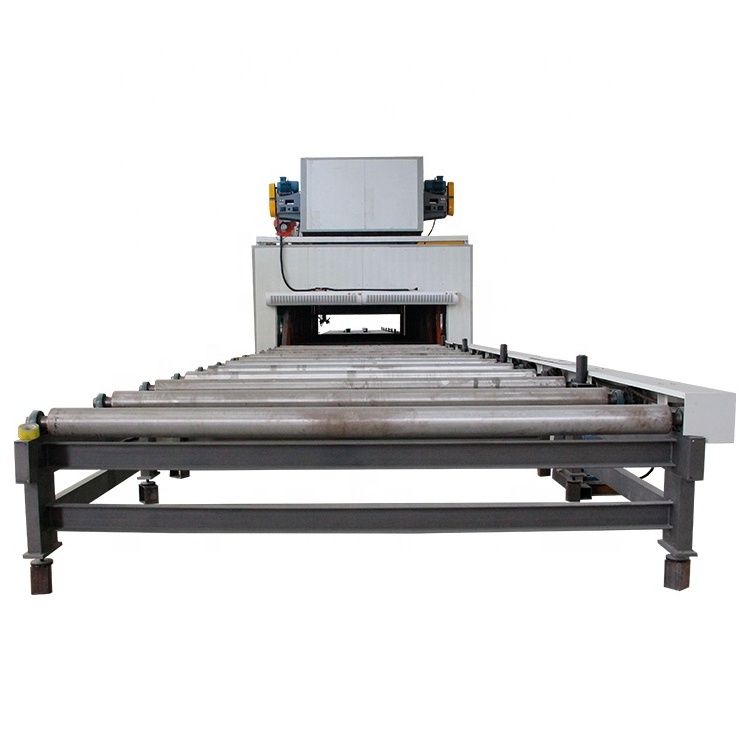

Main technical parameters of spraying line
|
|
|
|
|||
|
name
|
|
parameter
|
remarks
|
|||
|
model
|
|
|
|
|||
|
main engine
|
Main engine door hole size (width x height)
|
3100x900mm
|
|
|||
|
|
Allow component section (width x height)
|
3000x700mm
|
|
|||
|
|
Allows passage through the member length
|
3000-12000mm
|
|
|||
|
|
Allow passage through the component weight
|
1000kg/m
|
|
|||
|
|
|
|
|
|||
|
Productivity (workpiece passing speed)
|
|
0.6～3m/min
|
|
|||
|
Spray gun
|
brand
|
Graco
|
America
|
|||
|
|
model
|
|
|
|||
|
|
quantity
|
6+6
|
The upper and lower 6 sets will correspond to their respective spraying positions
|
|||
|
Spray pump
|
brand
|
Graco
|
America
|
|||
|
|
model
|
|
|
|||
|
|
quantity
|
1
|
|
|||
|
Paint kettle
|
|
100L
|
|
|||
|
ladar
|
brand
|
SICK
|
Germany
|
|||
|
|
model
|
|
|
|||
|
|
quantity
|
4
|
|
|||
|
Elevated laser
|
brand
|
SICK
|
Germany
|
|||
|
|
model
|
|
|
|||
|
|
quantity
|
4
|
|
|||
|
Into the roll
|
Allow load
|
1000kg/m
|
|
|||
|
|
power of motor
|
3KW
|
Communication servo
|
|||
|
|
Stick diameter and wall thickness
|
Ø159*8
|
|
|||
|
|
length
|
16000mm
|
Laser-based detection distance is included
|
|||
|
Spray booth
|
The upper spray gun moves speed
|
30000mm/min
|
|
|||
|
|
power of motor
|
3KW
|
AC Servo to Panasonic
|
|||
|
|
Upper spray gun lift speed
|
12000mm/min
|
|
|||
|
|
power of motor
|
0.75KW
|
AC Servo to Panasonic
|
|||
|
|
Up the spray gun lift stroke
|
500mm
|
|
|||
|
|
Down spray gun movement speed
|
30000mm/min
|
|
|||
|
|
power of motor
|
3KW
|
AC Servo to Panasonic
|
|||
|
Dry room
|
length
|
40000mm
|
|
|||
|
|
Material delivery form
|
Conveyor channel
|
|
|||
|
|
span
|
1200mm
|
|
|||
|
|
Allow load
|
1000kg/m
|
|
|||
|
|
power of motor
|
5.5KW
|
|
|||
|
|
Dry heat source
|
Natural gas / electric heating
|
Optional, standard with natural gas
|
|||
|
|
power
|
3000000 kcal
|
|
|||
|
|
burner
|
Best
|
Italy
|
|||
|
|
Temperature rise time
|
30min
|
Room temperature rises to 70℃ in winter
|
|||
|
|
blowing rate
|
7500m3/h
|
|
|||
|
|
Fan power
|
7.5KW
|
|
|||
|
|
Cut off the wind curtain
|
Two sets
|
Before and after each one
|
|||
|
|
Circulating air duct
|
A set
|
|
|||
|
|
Overflow air duct
|
A set
|
|
|||
|
Send out the roller
|
Allow load
|
1000kg/m
|
|
|||
|
|
power of motor
|
3KW
|
Communication servo
|
|||
|
|
Stick diameter and wall thickness
|
Ø159*8
|
|
|||
|
|
length
|
12000mm
|
|
|||
|
Paint mist particle treatment
|
Deal with air volume
|
20000m3/h
|
No VOC treatment is included
|
|||
|
|
power
|
22KW
|
|
|||
|
3D scanning software
|
brand
|
KASRY
|
|
|||
|
|
quantity
|
1
|
|
|||
|
Numerical control spraying system
|
brand
|
KASRY
|
|
|||
|
|
quantity
|
1
|
|
|||
|
Total power (excluding compressed air kinetic power)
|
|
|
|
|||
