Quick Details
-
Brand Name:
-
shuguang
-
Dimension(L*W*H):
-
2821*1974*2651MM
-
Weight:
-
5000 KG
-
Marketing Type:
-
Hot Product 2023
-
Dynamic cone diameter:
-
1200mm
-
Discharge size:
-
19-50 mm
-
Sprindle speed:
-
485 r/min
-
Feeding opening size:
-
191mm
-
Material:
-
High quality carbon steel
-
Installation:
-
Technical Guidance
-
Output size:
-
as required
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Processed Materials:
-
Stones, Rocks ,Ores
Quick Details
-
Application:
-
Mining,Chemical,Construction Field
-
Capacity(t/h):
-
141-308
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
shuguang
-
Dimension(L*W*H):
-
2821*1974*2651MM
-
Weight:
-
5000 KG
-
Marketing Type:
-
Hot Product 2023
-
Dynamic cone diameter:
-
1200mm
-
Discharge size:
-
19-50 mm
-
Sprindle speed:
-
485 r/min
-
Feeding opening size:
-
191mm
-
Material:
-
High quality carbon steel
-
Installation:
-
Technical Guidance
-
Output size:
-
as required
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Processed Materials:
-
Stones, Rocks ,Ores

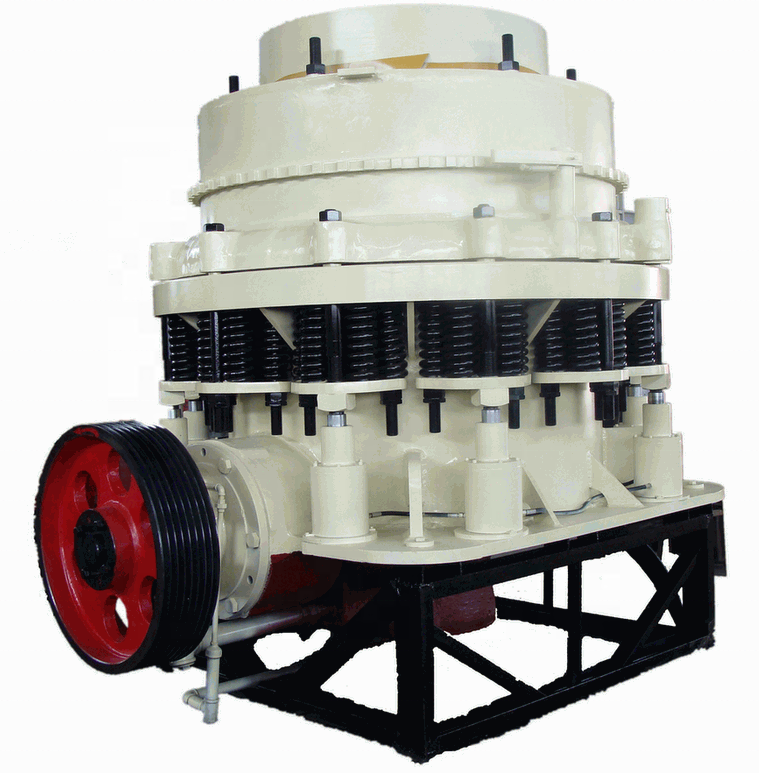

Energy Saving Mining Machinery Cone Crusher
Cone crusher equipment
Brife introduction
Based on the introduction of foreigh technologies,multi-laminated broken crushing and less milling and according to customers' needs the CS-series spring cone crusher which combines the high-frequency,optimized cavity and reasonable strokes together.Practices have proved that CS-series spring cone crusher wins the worldwide customers' trust by its excellent performance,reliable quality and cost-effective ratio.
Application
CS-series spring cone crusher is widely used in metals and non-metallic minerals.cement,construcation,
metallurgy,transport,sand and gravel production and especially for iron ore,gold ore.non-ferrous metal ore,granite,basalt,pebble,quartzite,sandstone,limestone and other hardness and medium hardness ore and rock.
CS-series spring cone crusher is applied in gravel construction and artificial sand processing especially in crushing hard material such as basalt. it is not only of high efficiency and low production costs but also of excellent shape ans high-quality sand and gravel aggregate.
CS-series spring cone crusher is used in black and non-ferrous metal ore-dressing process. It can reduce the partical size of the ore effectively entering the mill and realizes the more crushing and less milling.This not only improves the capacity of the mill,but also saves electric and steel to improve the economic benefits of selected plants.
Features
1.High performance and good stability.
2.Excellent shape and combination.
3.Clean cavity conveniently and split lubrication.
4.High reliability and low production cost.
5.Widely used and easy maintenance and operation.
Specifications
|
Model |
Dia. mm (mm) |
Cavity |
Feed Opeing |
Outlet Setting (mm) |
Shaft Speed (r/min) |
Power (kw) |
Capacity (t/h) |
Weight (t) |
Dimension (mm) |
|
|
Closing Side (mm) |
Open Side (mm) |
|||||||||
|
CS-75B |
900 |
Fine |
83 |
102 |
9-22 |
580 |
75 |
45-91 |
15 |
2821×1880×2164 |
|
Coarse |
159 |
175 |
13-38 |
59-163 |
||||||
|
CS-110B |
1200 |
Fine |
127 |
131 |
9-31 |
485 |
110 |
63-188 |
20 |
2821×1974×2651 |
|
Medium |
156 |
156 |
13-38 |
100-200 |
||||||
|
Coarse |
178 |
191 |
19-51 |
141-308 |
||||||
|
CS-160B |
1295 |
Fine |
109 |
137 |
13-31 |
485 |
160 |
109-181 |
27 |
2800×2342×2668 |
|
Medium |
188 |
210 |
16-38 |
132-253 |
||||||
|
Coarse |
216 |
241 |
19-51 |
172-349 |
||||||
|
CS-240B |
1650 |
Fine |
188 |
209 |
16-38 |
485 |
220 |
181-327 |
55 |
3911×2870×3771 |
|
Medium |
213 |
241 |
22-51 |
258-417 |
||||||
|
Coarse |
241 |
268 |
25-64 |
299-635 |
||||||
|
CS-315B |
2134 |
Fine |
253 |
278 |
19-38 |
435 |
315 |
381-726 |
110 |
4613×3251×4732 |
|
Medium |
303 |
334 |
25-51 |
608-998 |
||||||
|
Coarse |
334 |
369 |
31-64 |
789-1270 |
||||||
