Quick Details
-
Brand Name:
-
Henghong
-
Dimension(L*W*H):
-
2800*1300*1700mm
-
Weight:
-
5000 KG
-
Product Name:
-
Construction Material/Gypsum/Silica/Rock/Gold/River/Stone Cone Crusher
-
Max feeding size:
-
65mm
-
Discharge size:
-
12-25mm
-
MOQ:
-
1Set
-
Capacity:
-
0.6-2.5Tph
-
Price:
-
Negotiation before order
-
Color:
-
As your request
-
Quality:
-
Excellent
-
Keyword:
-
Hydraulic Cone Crusher,Spring Cone Crusher,Symons Cone Crusher
-
Factory visit:
-
Welcomed Warmly
Quick Details
-
Application:
-
Quarry, mining, coal mining, concrete, rock ore
-
Capacity(t/h):
-
12-25
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Henghong
-
Dimension(L*W*H):
-
2800*1300*1700mm
-
Weight:
-
5000 KG
-
Product Name:
-
Construction Material/Gypsum/Silica/Rock/Gold/River/Stone Cone Crusher
-
Max feeding size:
-
65mm
-
Discharge size:
-
12-25mm
-
MOQ:
-
1Set
-
Capacity:
-
0.6-2.5Tph
-
Price:
-
Negotiation before order
-
Color:
-
As your request
-
Quality:
-
Excellent
-
Keyword:
-
Hydraulic Cone Crusher,Spring Cone Crusher,Symons Cone Crusher
-
Factory visit:
-
Welcomed Warmly

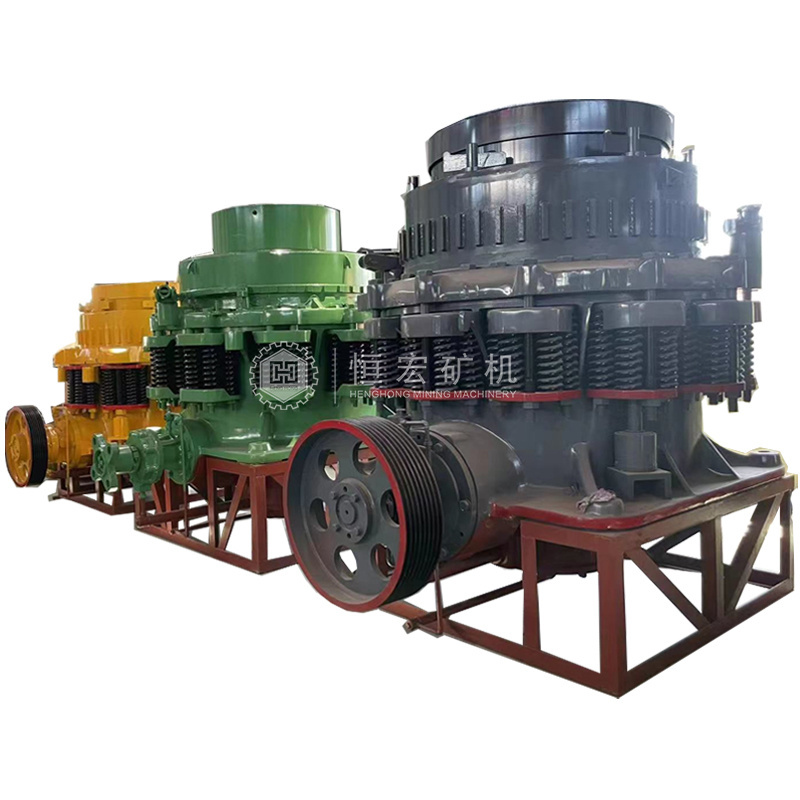

High Quality Quarry Machine Secondary Crushing Equipment Construction Material/Gypsum/Silica/Rock/Gold/River/Stone Cone Crusher
Jiangxi Henghong mining machinery is devoting to provide turnkey solution with worldwide clients for mineral processing plant including research, design, manufacture,installation and commissioning, personnel training, after-sale service and management of processing plant. Up to now, we have developed some major product lines: they are mining feeding machine, mining crushing machine, mining milling machine, mining classifying separator, mining flotation machine and the mining gravity separator. When you find us, you find one best mining machinery manufacturer.
Cone Crusher Description
Cone crushers, also known as conical crushers, break rock between an eccentric rotating head and a bowl. The rotating head is covered by a wear-resistant mantle.The large pieces are broken once between the two jaws, then they gradually descend into the crusher where they continue to be broken until the pieces are small enough to pass through the narrow opening at the bottom of the breaking space. A cone crusher can crush a variety of rocks, from medium to hard.The way a cone crusher operates is similar to how a gyratory crusher does, but in a cone crusher the slope in the breaking space is not as steep.
Main Features
1. Good product grain shape, strong production capacity.
2. Good reliability and high stability.
3. Easy maintenance, and easy to operate.
4. Low operating costs, a wide range of applications.
5. Laminated crushing, the material is good grain shape.
Widely Applications
Cone crusher is widely used to crush the stones and ores with medium and high hardness, such as aggregate, gravel, granite, basalt, iron ore, gold ore and other kinds of minerals in mining, quarry, construction and other fields.
|
Model
|
Cone diameter (mm)
|
Maximum feed size (mm)
|
Output size (mm)
|
Capacity (t/h)
|
Power (kw)
|
Eccentric shaft speed (r/min)
|
Weight (Ton)
|
Dimensions (L*W*H)mm
|
|
PYB600
|
φ600
|
65
|
12-25
|
12-25
|
30
|
356
|
5
|
2800x1300x1700
|
|
PYD600
|
φ600
|
35
|
3-15
|
5-23
|
30
|
356
|
5.5
|
2800x1300x1700
|
|
PYB900
|
φ900
|
115
|
15-50
|
50-90
|
55
|
333
|
10.2
|
3050x1640x2350
|
|
PYZ900
|
φ900
|
60
|
5-20
|
20-65
|
55
|
333
|
10.2
|
3050x1640x2350
|
|
PYD900
|
φ900
|
40
|
3-13
|
15-50
|
55
|
333
|
10.3
|
3050x1640x2350
|
|
PYB1200
|
φ1200
|
145
|
20-50
|
110-200
|
110
|
300
|
24.7
|
4152x2300x2980
|
|
PYZ1200
|
φ1200
|
100
|
8-25
|
50-150
|
110
|
300
|
25
|
4152x2300x2980
|
|
PYD1200
|
φ1200
|
50
|
3-15
|
18-105
|
110
|
300
|
25.6
|
4152x2300x2980
|
|
PYB1750
|
φ1750
|
215
|
25-60
|
280-480
|
160
|
245
|
50.3
|
4870x3800x4192
|
|
PYZ1750
|
φ1750
|
185
|
10-30
|
115-320
|
160
|
245
|
50.3
|
4870x3800x4192
|
|
PYD1750
|
φ1750
|
85
|
5-15
|
75-230
|
160
|
245
|
50.4
|
4870x3800x4192
|
|
PYB2200
|
φ2200
|
300
|
30-60
|
590-1000
|
260-280
|
220
|
80
|
7705x3430x4852
|
|
PYZ2200
|
φ2200
|
230
|
10-30
|
200-580
|
260-280
|
220
|
80
|
7705x3430x4852
|
|
PYD2200
|
φ2200
|
100
|
5-15
|
120-340
|
260-280
|
220
|
81.4
|
7705x3430x4852
|
1.What is your machine used for ?
Our Cone crusher is widely used to crush the stones and ores with medium and high hardness, such as aggregate, gravel, granite,basalt, iron ore,gold ore and other kinds of minerals in mining, quarry,construction and other fields.
2.Are you factory or trade company?
Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about your Service ?
All of our machines with one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.What about the payment method?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Our Cone crusher is widely used to crush the stones and ores with medium and high hardness, such as aggregate, gravel, granite,basalt, iron ore,gold ore and other kinds of minerals in mining, quarry,construction and other fields.
2.Are you factory or trade company?
Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
3.Can I operate it well, if I have no experience?
Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
4.How about your Service ?
All of our machines with one year warranty and Wholelife Technology support to make sure your machine work well.
5.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
6.What about the payment method?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
