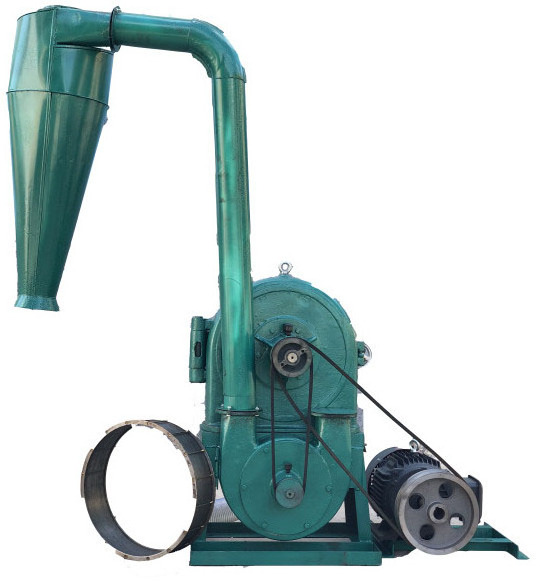

Commercial corn maize grain grinding machines flour mill machine home flour mill price

Commercial corn maize grain grinding machines flour mill machine home flour mill price

FOB Reference Price: Get Latest Price

≥1 Sets

US $780

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 7.5/11/15/18.5/22/30/37KW

Weight:: 1000 KG

Dimension(L*W*H):: 1100*400*1270mm

Product name:: Flour Making Machine

Product:: high quality of grain flour

Raw material:: Wheat Maize Corn Rice Beans

Feature:: No wear parts design

Function:: Multifuction

Advantage:: Small Space

Keywords:: service life is five years longer

Processing:: Full-automatic Milling Machine

Feature 2:: runs at low temperature

After Warranty Service:: Spare parts

Quick Details

Place of Origin:: China

Brand Name:: Shiningall

Voltage:: Three-phase alternating current

Power:: 7.5/11/15/18.5/22/30/37KW

Weight:: 1000 KG

Dimension(L*W*H):: 1100*400*1270mm

Product name:: Flour Making Machine

Product:: high quality of grain flour

Raw material:: Wheat Maize Corn Rice Beans

Feature:: No wear parts design

Function:: Multifuction

Advantage:: Small Space

Keywords:: service life is five years longer

Processing:: Full-automatic Milling Machine

Feature 2:: runs at low temperature

After Warranty Service:: Spare parts

Products Description

Metal base, good stability

Grinding evenly and finely

Automatic material suction saves time and effort

Multi-object grinding, strong power

Factory direct sales support customization

Stable performance This kind of self-priming crusher has small size, low power and stable performance. The host can be made of cast steel, 304 or 316 stainless steel , and there are different body materials for your choice.

Longer life The fixed gear plate can be replaced by cast steel material to make the body more wear-resistant and prolong its service life Excellent productivity Double flat teeth speed up the discharge speed, high air cooling efficiency, less time-consuming, high crushing fineness, and outstanding output Uniform particles

Running smoothly The oil tank type bearing chamber is suitable for long-term work for more than 12 hours to prevent the temperature of the bearing from rising, and the operation is stable without reducing the output Wide range of applications Chemicals, food, paper, Chinese medicinal materials, feed processing plants, farms

Parameters of different models of this series of products

Model	9FC-70	9FC-60	9FC-45D	9FC-45	9FC-37	9FC-26
capacity（corn)	3000KG/H	2000KG/H	950KG/H	750KG/H	450KG/H	230KG/H
Motor power	30/37KW	22/30KW	18.5KW	15KW	7.5/11KW	3/4KW
Net weight	928KG	765KG	620KG	430KG	300KG	167KG
Dimension	16409001500	16309001260	16309001130	16309001130	1450x750x1120	800x370x840
Disc outer diameter	600mm	500mm	450mm	450mm	370mm	255mm
Screen size	2100*146mm	1800*146mm	1580*130mm	1580*88mm	*135080mm**	900*74mm
