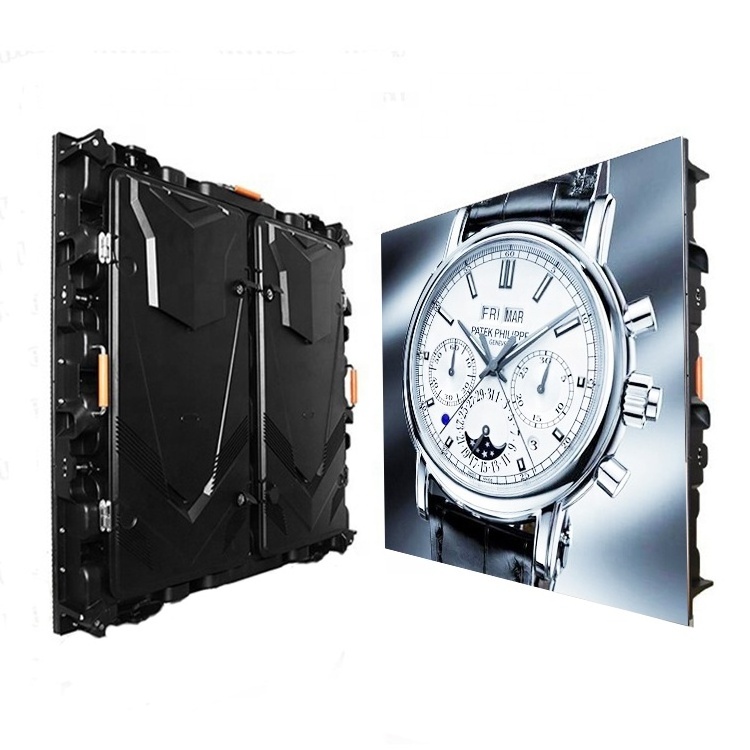

Quick Details
-
Color:
-
FULL COLOR
-
Panel Size:
-
960*960mm, 960*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P10
-
Module size:
-
320x160mm
-
Cabinet size:
-
960x960mm
-
Cabinet material:
-
Steel Iron
-
Weight:
-
26KG / Panel
-
Power (Ave./Max):
-
200/700 W/panel
-
Brightness:
-
6000 nits / sqm
-
IP Grade:
-
IP68
-
Life span:
-
100000hours
-
Warranty:
-
2 Years
-
Certification:
-
CE,ROHS,FCC,CCC etc
Quick Details
-
Application:
-
OUTDOOR
-
Type:
-
LED
-
Brand Name:
-
MPLED
-
Color:
-
FULL COLOR
-
Panel Size:
-
960*960mm, 960*960mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P10
-
Module size:
-
320x160mm
-
Cabinet size:
-
960x960mm
-
Cabinet material:
-
Steel Iron
-
Weight:
-
26KG / Panel
-
Power (Ave./Max):
-
200/700 W/panel
-
Brightness:
-
6000 nits / sqm
-
IP Grade:
-
IP68
-
Life span:
-
100000hours
-
Warranty:
-
2 Years
-
Certification:
-
CE,ROHS,FCC,CCC etc
|
|
||
|
LED Module Parameters |
||
|
|
Pixel Pitch |
10mm |
|
LED Tpye |
SMD3535 |
|
|
Pixel Density |
10,000dots/m ² |
|
|
Drive Duty |
1/2scan |
|
|
Module Size |
320mm x 160mm |
|
|
Module Resolution |
32dots x 16dots |
|
|
Module Weight |
0.5kg |
|
|
LED Cabinet Parameters |
||
|
|
Cabinet Size |
960mm x960mm |
|
Cabinet Resolution |
96dots x 96dots |
|
|
Module Qty |
18pcs |
|
|
Physical Resolution |
9,216dots |
|
|
Cabinet Weight |
26kg |
|
|
Cabinet Material |
Magnesium material |
|
|
LED Screen Parameters |
||
|
|
Best Viewing Distance |
5m - 100m |
|
Best Viewing Angle |
H:160°, V:120° |
|
|
Refresh |
1,920Hz |
|
|
Brightness |
≥6,000 nits |
|
|
Ave. / Max. Power Consumption |
300W/m ² , 900W/m² |
|
|
Waterproof |
IP65 |
|
|
Lifespan |
100,000 Hours |
|
1. What about LED Display MOQ?
1sqm.
2.How about MPLED payment?
T/T or LC as standard
Western union,D/P,D/A,Money Gram,Paypal,Cash can optional.
3. What about MPLED capacity?
3000sqm per month.
we have 8 modernized dust-free and static-free production lines, by 6 new PANASONIC high speed SMT machines, 2 large leadless reflow oven, and more than 300 skilled workers.
4.How about the lead time?
LED Module:1-7working days
LED Display: 3-20working days
5. How about the warranty time?
Our standard is 2years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5years warranty.
6. Which shipping port you use?
Our standard is Shenzhen port,but Guangzhou or Hongkong.
We also can accept your appoint port.
7. How to do the shipping?
You can use our shipping agent who we have cooperate more than 4years
Or you can use your shipping agent.
8. What`s trade terms you accept?
We accept EXW,CIF,CNF,DDP,DDU etc
