Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEWIN
-
Model Number:
-
D76L-2465-180
-
Torque:
-
12-14N.M
-
Motor diameter:
-
76mm
-
Direction:
-
Reversable
-
Voltage:
-
≤48V
-
Power:
-
≤150W
-
Protection grade:
-
IP 49-56
-
Material of Gear:
-
Brass / Plastic
-
Gear ratio:
-
1:65 1:75 1:60 2:47 1:20
-
Diameter of shaft:
-
6mm,8mm,10mm,12mm(Customized)
-
Stall torque:
-
≥10Nm
Quick Details
-
Speed(RPM):
-
180RPM
-
Continuous Current(A):
-
≥1.2a
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WEWIN
-
Model Number:
-
D76L-2465-180
-
Torque:
-
12-14N.M
-
Motor diameter:
-
76mm
-
Direction:
-
Reversable
-
Voltage:
-
≤48V
-
Power:
-
≤150W
-
Protection grade:
-
IP 49-56
-
Material of Gear:
-
Brass / Plastic
-
Gear ratio:
-
1:65 1:75 1:60 2:47 1:20
-
Diameter of shaft:
-
6mm,8mm,10mm,12mm(Customized)
-
Stall torque:
-
≥10Nm

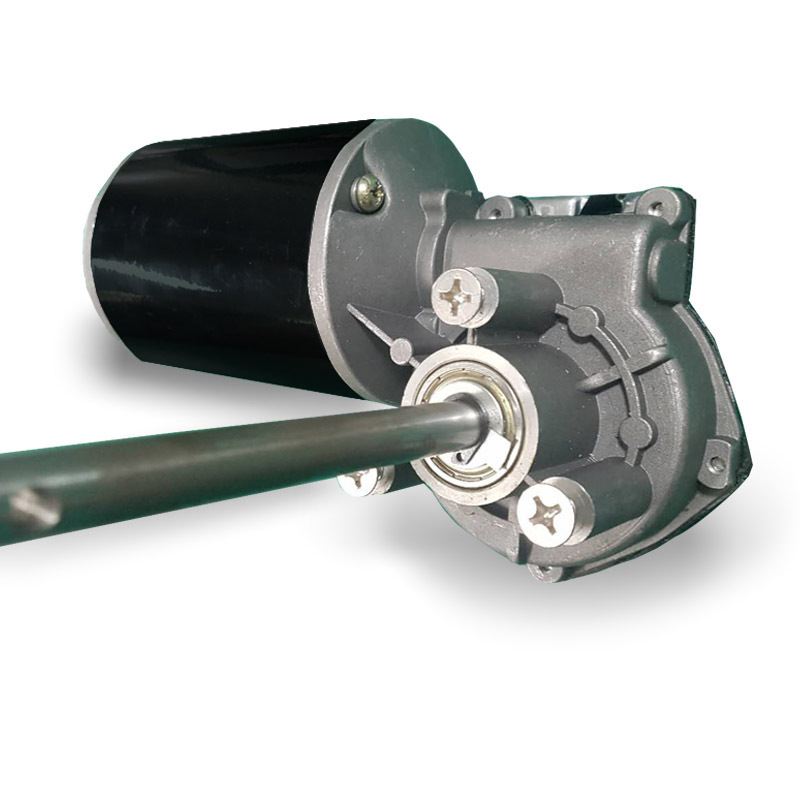

Custom DC Gear Motor 24V Food Processor Blender Machine Intelligent Pig Feed Mixing Motor
DC Worm Gear motor
TYPE: D76L-24v65w-180rpm
TECHNICAL REFERENCE
| Motor diameter | 76mm |
| Voltage | 12V 24v 36v 48v 60v |
| Power | 65W |
| No load speed | 180±3RPM |
| Load speed | 170±3RPM |
| No load current | ≤1.2A |
| Load current | ≤3.5A |
| Load torque | ≥5.0Nm |
| Gear ratio | 1:65 1:75 1:60 2:47 1:20 |
| Gear Modulus |
75:1 M=0.8 47:2 M=1.25 65:1 60:1 20:1 M=1 |
| Motor length | 77-97mm |
| Speed sensor | Hall sensor ,encoder,opto sensor |
| Factory Address | Guangzhou Huadu |
| OEM/ODM Service | Accept |
NOTE: We can design and manufacture according to your required like voltage,power,speed,torque and dimension.
DRAWING:
SHAFT
More Applications:
Car simulator ,garage door opener ,gate operator, packing barrier,wheelchair ,electric vehicle ,pig feed mixing,porridge feeder,welding machine ,blender machine,rolling shutter,floor polisher, truck lift,stair lift,hospital bed ,hydraulic pump electric forklift.
