Quick Details
-
Dimension(L*W*H):
-
4450*990*2070mm
-
Weight:
-
5500 KG
-
Drilling Diameter:
-
63.5/73/89mm
-
Drilling Depth:
-
Max.400m
-
Mobility:
-
crawler walking
-
Product name:
-
ZDY4500LXY crawler hydraulic drilling rig
-
Keyword:
-
Hydraulic/Tunnel Drilling Rig
-
Application:
-
ISO 9001 CE
-
Design drilling depth:
-
400m
-
Final hole diameter:
-
75/89/94/113/113mm
-
Rated torque:
-
1000-4500N.m
-
Rated speed:
-
60-215 r/min
-
Spindle inclination:
-
±90°
-
Pull force:
-
70/140KN
-
Feed and pull stroke:
-
600m
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Tiefulai
-
Voltage:
-
660V/1140V
-
Dimension(L*W*H):
-
4450*990*2070mm
-
Weight:
-
5500 KG
-
Drilling Diameter:
-
63.5/73/89mm
-
Drilling Depth:
-
Max.400m
-
Mobility:
-
crawler walking
-
Product name:
-
ZDY4500LXY crawler hydraulic drilling rig
-
Keyword:
-
Hydraulic/Tunnel Drilling Rig
-
Application:
-
ISO 9001 CE
-
Design drilling depth:
-
400m
-
Final hole diameter:
-
75/89/94/113/113mm
-
Rated torque:
-
1000-4500N.m
-
Rated speed:
-
60-215 r/min
-
Spindle inclination:
-
±90°
-
Pull force:
-
70/140KN
-
Feed and pull stroke:
-
600m
Product Description

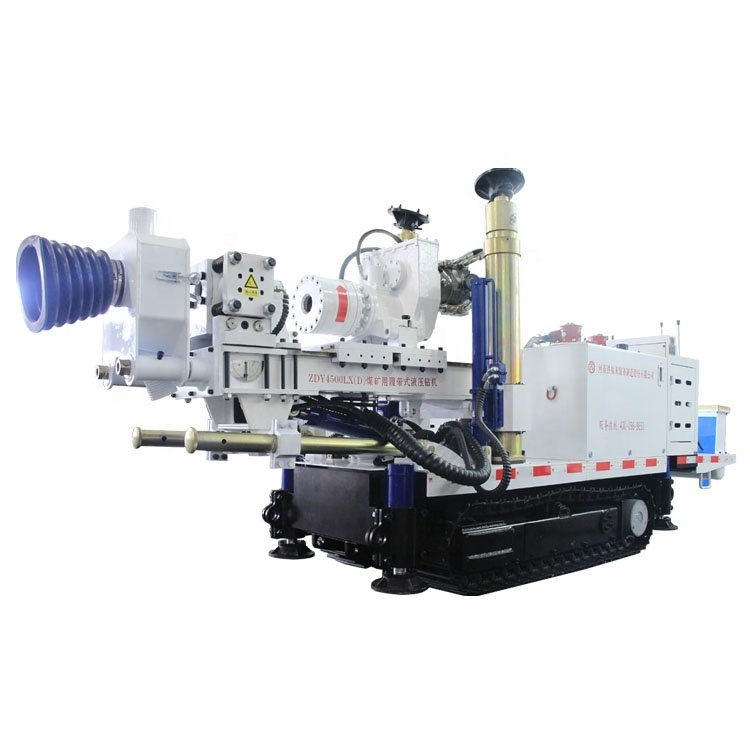

Integrated Design Small Size Crawler Full Hydraulic Tunnel Boring Machine
Features
1. The machine adopts an integrated design of pumping station and drilling rig, with an outline width of less than 1m, small size and flexible movement, and is especially suitable for drilling construction operations in narrow tunnels in coal mines.
2. The use of crawler walking greatly improves the efficiency of drilling and steady drilling, and reduces the labor intensity of workers.
3. Strong functionality: adopts a rotating large plate structure (company patented technology). When the crawler chassis is not moving, relying on the large plate rotation, it can achieve 180" azimuth adjustment, -90°~+90° elevation and depression angle adjustment. The mine tunnel realizes all-round layout of holes.
|
Maximum walking speed
|
1.5 Km/h
|
|
20Gradeability
|
20 °
|
|
Car body platform corner
|
±180°
|
|
Matching drill pipe diameter
|
63.5/73/89mm
|
|
Host quality
|
5500 kg
|
|
Airborne sealer
|
ZDY4500LX(B)/(D) type equipment
|
|
Automatic lifting
|
ZDY4500LX(C)/(D) type equipment
|
