Quick Details
-
Rated Lifting Moment:
-
200KN m
-
Span:
-
2.5-55m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FYG
-
Weight (KG):
-
10000 kg
-
Model:
-
PT5510
-
Brand:
-
FYG
-
Rated lifting moment:
-
200 Kn m
-
Working radius (m):
-
2.5-55 m
-
Maximum. lifting load:
-
1t
-
Maximum. lifting load at 50m:
-
1.0t
-
Independent lifting height:
-
40m
-
lifting speed:
-
23.1m/min
-
slewing speed:
-
0.7r/min
-
Certification:
-
CE/EAC
Quick Details
-
Rated Loading Capacity:
-
6 TON
-
Max. Lifting Height:
-
50m
-
Application:
-
Construction
-
Rated Lifting Moment:
-
200KN m
-
Span:
-
2.5-55m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FYG
-
Weight (KG):
-
10000 kg
-
Model:
-
PT5510
-
Brand:
-
FYG
-
Rated lifting moment:
-
200 Kn m
-
Working radius (m):
-
2.5-55 m
-
Maximum. lifting load:
-
1t
-
Maximum. lifting load at 50m:
-
1.0t
-
Independent lifting height:
-
40m
-
lifting speed:
-
23.1m/min
-
slewing speed:
-
0.7r/min
-
Certification:
-
CE/EAC

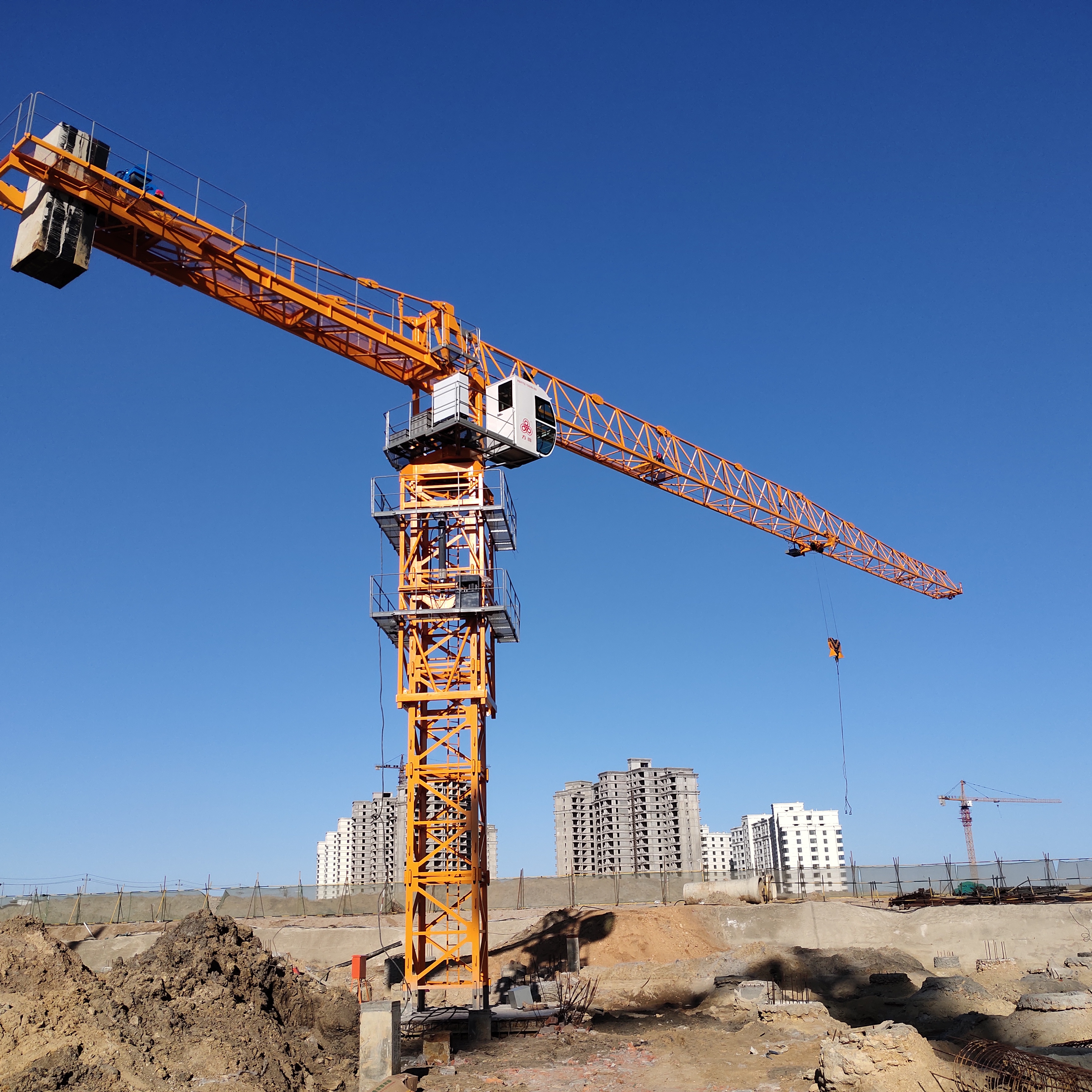

High efficiency and good service building tower crane PT3006
| Technical parameters | PT3006 | PT5510 | PT6015 | PT7023 | PT7032 | PT7528 | |
| max.lifting moment | kN·M | 220 | 870 | 1510 | 2880 | 2880 | 3250 |
| rated lifting moment | kN·M | 200 | 630 | 1250 | 2500 | 2500 | 2750 |
| max.lifting capacity | t | 2 | 6 | 8 | 16 | 16 | 18 |
| work range | m | 2.5~30 | 2~55 | 2.5~60 | 3.5~70 | 3.5~70 | 3.5~75 |
| rated lifting capacity at max.working range | t | 0.6 | 1 | 1.5 | 2.3 | 3.2 | 2.8 |
| independent lifting height | m | 22 | 40 | 54 | 60 | 60 | 60 |
| work power | V/Hz | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| total weight of the tower structure | t | 9.66 | 37.5 | 65 | 102.7 | 115.9 | 116.36 |
| total power(no including jacking) | kW | 14.7 | 34.7 | 40.7 | 95.5 | 95.5 | 105 |
High efficiency and good service building tower crane PT3006
High efficiency and good service building tower crane PT3006
High efficiency and good service building tower crane PT3006
— — · FAQ · — —
1. Why choose us?
We are professional manufacture both for machine and spare parts since 1970. Additional to that, we also can equipped the spare parts according to customer’s requirement.
2. Do you accept special orders?
A: Special order is also available because we are the factory with design and manufacturing department.
3. What is the real delivery time of your factory?
A: 10 to 20 days for general series products, but special orders will need 30 or more days based on different situations and products.
4.How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of tower crane for most of our customers at home or abroad.
With our experienced quality control team, we are trying to offer most of our customers the product with best quality. Meanwhile, each of our products will passed the quality test before delivery.
5. What is the max. capacity of the tower crane?
PT series : 2T 6T 10T 16T 18T
TC series: 3T 4T 5T 6T 8T 10T 12T 16T
6. Where can we buy the machine's parts?
A: Generally, when delivery, we send customers some wearable spare parts for free for urgent requirement.We also have our spare parts warehouse,customer can confirm with us which parts are needed.
