Quick Details
-
Rolling thinckness:
-
0.6-1.2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sussman
-
Voltage:
-
220V or 380V
-
Dimension(L*W*H):
-
5500*800*1000mm
-
Weight:
-
3500 kg
-
Feeding width:
-
182mm
-
Marketing Type:
-
cheap price
-
Material thickness:
-
0.6-1.2mm
-
Producting speed:
-
300-700m/h
-
Size:
-
75*38mm, 89*41mm, 140*41mm ,etc
-
Roller station:
-
13 stations
-
Inkjet printer:
-
EC-JET
-
Materia of cutting:
-
Cr12Mov
-
Power(W):
-
7.5KW
-
Motor brand:
-
SIENEMS
-
Product name:
-
Light Gauge Steel Frame Purlin Machines For Prefabricated House
-
Keywords:
-
Metal Frame Residential Light Gauge LGS Steel Framing System Machine
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
25-30m/min
-
Rolling thinckness:
-
0.6-1.2mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sussman
-
Voltage:
-
220V or 380V
-
Dimension(L*W*H):
-
5500*800*1000mm
-
Weight:
-
3500 kg
-
Feeding width:
-
182mm
-
Marketing Type:
-
cheap price
-
Material thickness:
-
0.6-1.2mm
-
Producting speed:
-
300-700m/h
-
Size:
-
75*38mm, 89*41mm, 140*41mm ,etc
-
Roller station:
-
13 stations
-
Inkjet printer:
-
EC-JET
-
Materia of cutting:
-
Cr12Mov
-
Power(W):
-
7.5KW
-
Motor brand:
-
SIENEMS
-
Product name:
-
Light Gauge Steel Frame Purlin Machines For Prefabricated House
-
Keywords:
-
Metal Frame Residential Light Gauge LGS Steel Framing System Machine
Specification

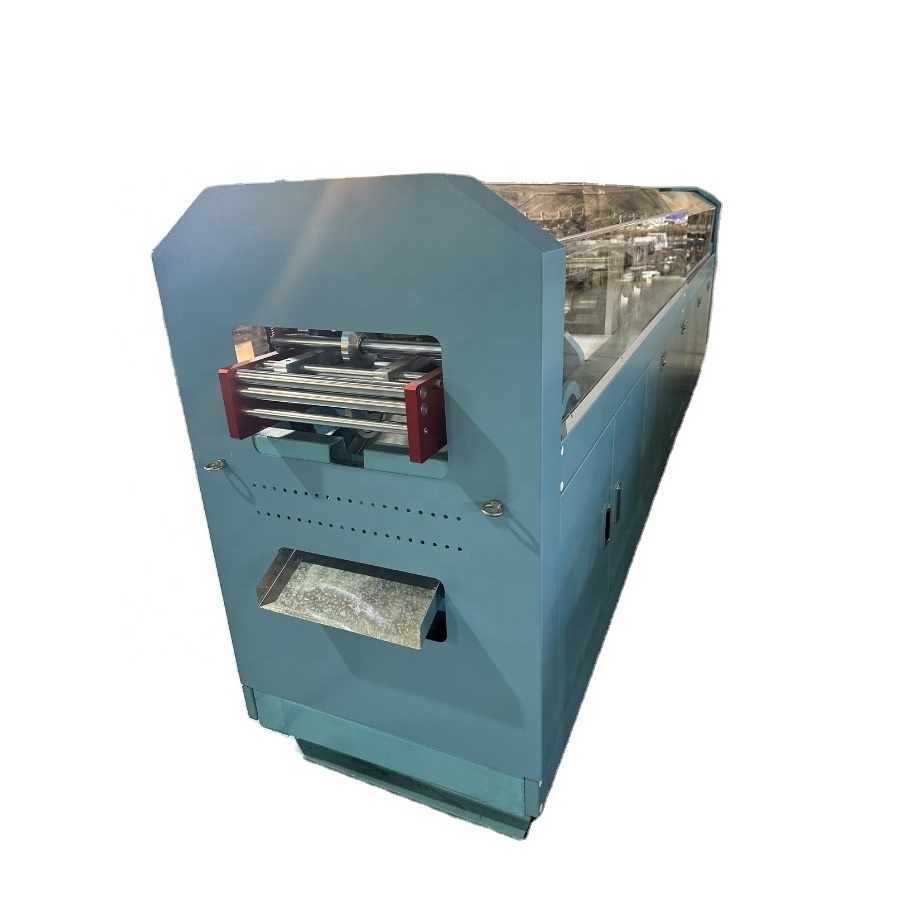

Steel frame structure vila house roll forming machine
The light steel frame machine is to make house steel frame, lighter mass, more efficient construction, safe and reliable structure, good seismic performance, improved thermal and acoustic insulation and indoor utilisation, and designed to offer increased production speed, greater flexibility and increased reliability, which is best suited for residential and light commercial projects. Producing profiles from 3.5" (89mm) to 6" (150mm) up to 18gauge (1.20mm) thickness.
C89 steel frame machine is suited to construct walls, floors and roofs for 1 – 3 level residential, modular and transportable units, and light commercial construction
.
When it comes to designing, prefabricating, and cold formed steel(LGS) wall frames, ceiling system, roof trusses, floor joists, wall panels and more, steel framing machine is a good choice。
|
Main Specifications
|
|
|
|
Size
|
75*41mm/ 89*41mm/140*41 for your optional
|
|
|
Thickness
|
0.6-1.2mm(G300-G550Galvanzied coils and Aluzinc )
|
|
|
Feeding width
|
182mm coil strip
|
|
|
Max producing speed
|
1500m/h
|
|
|
Main motor
|
7.5KW
|
|
|
Hydraulic station
|
5.5kw
|
|
|
Hydraulic tank capacity
|
100L
|
|
|
Hydraulic cooling
|
Fan cooling
|
|
|
Hydraulic pressure
|
Manual set
|
|
|
Punching dies
|
Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
|
|
|
Inkjet printer
|
Imported brand
|
|
|
Machine size
|
4900*1000*1500mm
|
|
|
Power supplier
|
380V 50Hz 3phases or according to your request
|
|
|
Note：Our machine can be compatible with other design software like FRAMECAD, StrucSoft, ENDURO, etc.
|
|
|
VERTEX BD house design software
1. The wall, floor and roof structure is produced automatically, saving design time.
2. Automatic 3D molding, insure 100% accuracy.
3. With analysis project function, the software can calculate bearing capacity.
4. Create frame work 3D map and 3D decoration view.
5. The whole building frame can be resolve to independent unit drawing.
6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7. Create the processed data including the marked work piece, docking with the equipment.
8. Software maintenance and training fee.
9. Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.
1. The wall, floor and roof structure is produced automatically, saving design time.
2. Automatic 3D molding, insure 100% accuracy.
3. With analysis project function, the software can calculate bearing capacity.
4. Create frame work 3D map and 3D decoration view.
5. The whole building frame can be resolve to independent unit drawing.
6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7. Create the processed data including the marked work piece, docking with the equipment.
8. Software maintenance and training fee.
9. Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.
Profile Drawing
A steel frame house structure refers to a building system where the primary structural elements, such as columns, beams, and roof trusses, are constructed using steel. This type of construction method has become increasingly popular for residential, commercial, and industrial buildings due to the many advantages that steel offers. Here are key features and benefits of a steel frame house structure:
Strength and Durability: Steel is known for its high strength and durability. It can withstand extreme weather conditions, earthquakes, and other environmental challenges better than some traditional building materials.
Design Flexibility: Steel allows for a wide range of architectural designs. Its strength-to-weight ratio enables the creation of large open spaces without the need for excessive support columns. This flexibility is particularly advantageous for modern and contemporary architectural styles.
Precision and Accuracy: Steel components are fabricated with precision, ensuring accurate and consistent dimensions. This precision helps in achieving tight tolerances and ensures that the structure is plumb and level.
Reduced Maintenance: Steel is resistant to many environmental factors, including pests, rot, and mold. As a result, steel frame houses typically require less maintenance over time compared to structures made from wood or other materials.
Sustainability: Steel is recyclable, making it an environmentally friendly building material. Additionally, the energy efficiency of steel structures can contribute to the overall sustainability of a building.
Fire Resistance: Contrary to some misconceptions, steel is not flammable, and it does not contribute to the spread of fire. In fact, steel-framed structures are known for their fire resistance, which can be crucial for safety.
Cost-Effectiveness: While the initial cost of steel may be higher than some traditional materials, the overall cost of construction can be lower due to faster construction times, reduced maintenance, and other factors.
Steel frame houses are versatile and can be adapted to various architectural styles, making them a popular choice for a range of construction projects. They are especially prevalent in regions prone to earthquakes or severe weather conditions, where their strength and durability are significant advantages.
Application
Steel frame application
The steel framing used in light steel frame construction is typically made from galvanized or cold-formed steel. Galvanized steel is coated with a layer of zinc to protect it from corrosion, while cold-formed steel is made by bending flat sheets of steel into the desired shape without heating them.
Galvanized steel is preferred for external applications since it is more resistant to rust and corrosion compared to cold-formed steel. However, both types are lightweight, strong, and durable, making them ideal for use in modern building design.
Light steel framing is commonly used in residential and commercial construction projects, particularly for low-rise buildings up to four stories. Its advantages include quick and easy construction, energy efficiency, cost-effectiveness, and versatility in design.
Packing & Delivery
Customer's feedback
Maintance and the service of the machine
Machine maintenance
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily.
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily.
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
