Quick Details
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
KONLIDA
-
Place of Origin:
-
Jiangsu, China
-
Features 1:
-
Design for encoder,stepmotor
-
Features 2:
-
Zero backlash,easy installation
-
Body Material:
-
Aluminum
-
Type:
-
Shsft Coupling top wire series
-
OEM & ODM:
-
Acceptable
-
Surface Treatment:
-
Oxidation
-
Application:
-
Industrial Equipment
Quick Details
-
Warranty:
-
6 Months
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Food Shop, Printing Shops, Energy & Mining
-
Structure:
-
Universal
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Aluminium
-
Brand Name:
-
KONLIDA
-
Place of Origin:
-
Jiangsu, China
-
Features 1:
-
Design for encoder,stepmotor
-
Features 2:
-
Zero backlash,easy installation
-
Body Material:
-
Aluminum
-
Type:
-
Shsft Coupling top wire series
-
OEM & ODM:
-
Acceptable
-
Surface Treatment:
-
Oxidation
-
Application:
-
Industrial Equipment
Products Description
Features:

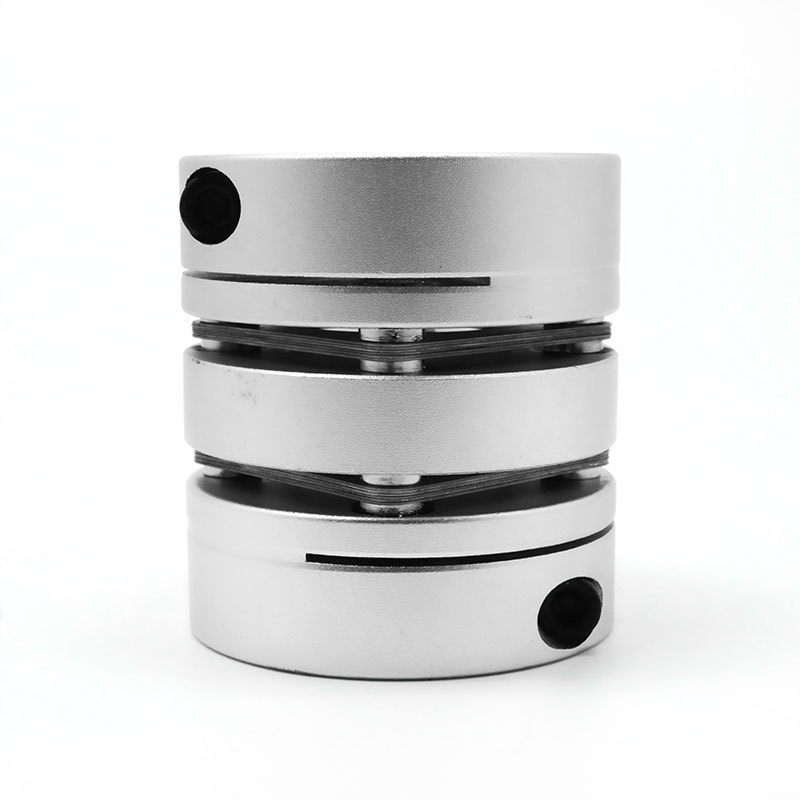

● Integrated structure, the overall use of high-strength alu minum alloy material .● Elasticity compensates radial,angular and axial deviations.
● Shaft and axial connection without gaps suitable for for ward and reverse rotation.
● Commonly used in encodersstepper motors
●Tightening method of positioning screw.
● Integrated structure, the overall use of high-strength alu minum alloy material .● Elasticity compensates radial,angular and axial deviations.
● Shaft and axial connection without gaps suitable for for ward and reverse rotation.
● Commonly used in encodersstepper motors
●Tightening method of positioning screw.
Specification
Dimension:(Unit:mm)
|
Model parameter
|
Common bore diameter d1,d2
|
ΦD
|
L
|
L1
|
L2
|
F
|
M
|
Tightening screw torque
(N.M) |
||||||||
|
KLD-16X17.4
|
3,4.5,6,
|
16
|
17.4
|
0.55
|
1.18
|
3
|
M3
|
0.7
|
||||||||
|
KLD-19X20
|
3,4,5,6,6.35,7,8
|
19
|
20
|
0.55
|
1.18
|
2.3
|
M3
|
0.7
|
||||||||
|
KLD-24X25
|
4,5,6,6.35,7.8.9.10,11.
|
24
|
25
|
0.55
|
1.49
|
4.25
|
M4
|
1.7
|
||||||||
|
KLD-29X30
|
5,6,6.35,7,8,9,9.525,10,11,12,12.7
|
29
|
30
|
0.55
|
1.81
|
5.1
|
M5
|
4
|
||||||||
|
KLD-34X35
|
8,9,9.525,10,11,12,12.7,14,15,16.
|
34
|
35
|
0.8
|
2.09
|
5
|
M5
|
4
|
||||||||
|
Processed with H7 standard tolerance. The inner diameter size marked in the table is for reference only. The inner diameter
required by the customer, please contact the salesman for detailed parameters. |
|
|
|
|
|
|
|
|
||||||||
Specifications(Unit:mm)
|
Model parameter
|
Rated torque(N.m)
|
Allowable eccentricity (mm)
|
Allowable deflection angle (°)
|
allowable axial deviation (mm)
|
Maximum speed (rpm)
|
Static torsional stiffness (N· m/rad)
|
Moment of inertia (N· m)
|
Coupling weight (g)
|
||||||||
|
KLD-16X17.4
|
0.75
|
0.05
|
0.5
|
±0.1
|
24000
|
200
|
2.8x10-7
|
7
|
||||||||
|
KLD-19X20
|
1.5
|
0.05
|
0.5
|
±0.1
|
20000
|
270
|
6.2x10-7
|
10
|
||||||||
|
KLD-24X25
|
2.2
|
0.05
|
0.5
|
±0.1
|
16000
|
790
|
2.0x10-6
|
22
|
||||||||
|
KLD-29X30
|
3
|
0.05
|
0.5
|
±0.1
|
13000
|
1400
|
5.2x10-6
|
40
|
||||||||
|
KLD-34X35
|
4.5
|
0.05
|
0.5
|
±0.1
|
11000
|
2200
|
1.1x10-5
|
64
|
||||||||
|
Remarks: The above inertia moment and various technical parameters are measured from the maximum aperture as the standard. The maximum rated torque is related to the durability of the coupling itself. The larger the outer diameter, the greater the force,and the smaller the outer diameter is. higher speed.
|
|
|
|
|
|
|
|
|
||||||||
Application
Applied to CNC Machine、Laser Cutting Machines 、Ball Screws、Module Slides、Electronic Equipment、Automation equipment.
