Quick Details
-
Model Number:
-
JK7122
-
Product name:
-

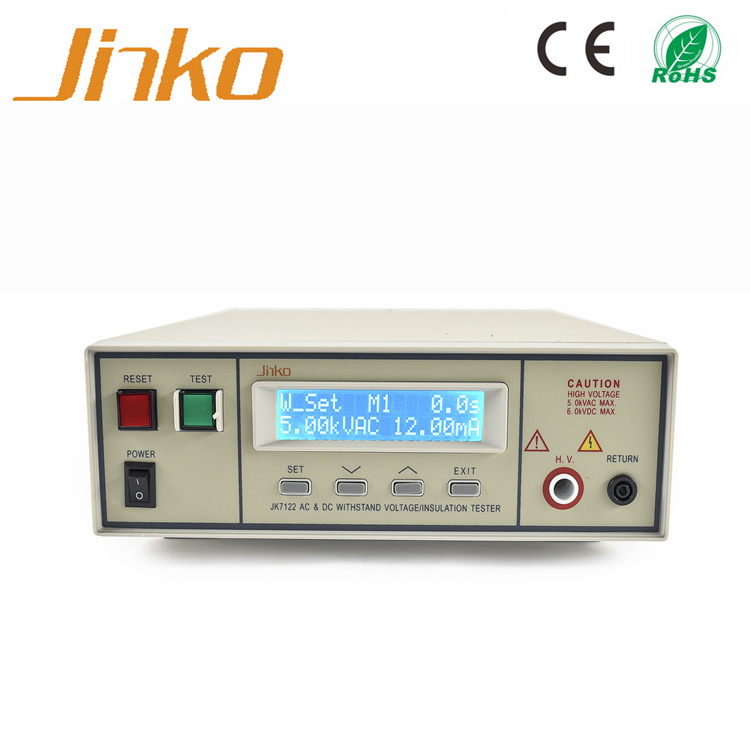

AC and DC withstand voltage insulation tester
-
AC withstand voltage test:
-
Rated output: 5KV AC/20mA
-
The output voltage:
-
0~5kV(AC) 0~6kV(DC)±(2%+5V)
-
Upper limit of AC current:
-
0.10~12.00mA ±(2%+2 dgts)
-
Lower limit of AC current:
-
0.00~12.00mA> ±(2%+2 dgts)
-
Upper limit of DC current:
-
0.10~5.00mA ±(2%+2 dgts)
-
Lower limit of DC current:
-
0.00~5.00mA ±(2%+2 dgts)
-
Insulation resistance test voltage:
-
100~1000kV ±(2%+5V)
-
Size:
-
W*H*D:280mm*88mm*275mm
-
Weight:
-
10kg
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jinko
-
Model Number:
-
JK7122
-
Product name:
-
AC and DC withstand voltage insulation tester
-
AC withstand voltage test:
-
Rated output: 5KV AC/20mA
-
The output voltage:
-
0~5kV(AC) 0~6kV(DC)±(2%+5V)
-
Upper limit of AC current:
-
0.10~12.00mA ±(2%+2 dgts)
-
Lower limit of AC current:
-
0.00~12.00mA> ±(2%+2 dgts)
-
Upper limit of DC current:
-
0.10~5.00mA ±(2%+2 dgts)
-
Lower limit of DC current:
-
0.00~5.00mA ±(2%+2 dgts)
-
Insulation resistance test voltage:
-
100~1000kV ±(2%+5V)
-
Size:
-
W*H*D:280mm*88mm*275mm
-
Weight:
-
10kg
Features
>>>
* The voltage rises according to time gradient, and find the breakdown point
* Set the upper/lower current
* Calibrate the software in front pane
* LCD display and menu guidance operation
* Arc detection function (Grade 1-9)
* Keypad lock function
* Five groups of measurement memory modes
* Simultaneous display of test time, voltage, current and resistance
* Select RS232 and PLC interfaces
* User-friendly design and simple operation
Specifications >>>
|
model
|
7110
|
7112
|
7120
|
7122
|
7200A
|
|
Output Voltage
|
0~5kV(AC) ±(2%+5V)
|
0~5kV(AC)
0~6kV(DC)±(2%+5V) |
---------
|
||
|
Upper limit of AC current
|
0.10~12.00mA
±(2%+2 dgts) |
0.10~12.00mA
±(2%+2 dgts) |
---------
|
||
|
Lower limit of AC current
|
0.00~12.00mA
±(2%+2 dgts) |
0.00~12.00mA>
±(2%+2 dgts) |
---------
|
||
|
Upper limit of DC current
|
-------------------
|
0.10~5.00mA
±(2%+2 dgts) |
---------
|
||
|
Lower limit of DC current
|
-------------------
|
0.00~5.00mA
±(2%+2 dgts) |
----------
|
||
|
Insulation resistance test voltage
|
-------------------
|
100~1000V
±(2%+5V) |
100~1000V ±(2%+5V)
|
||
|
Insulation resistance
|
This function has only 7112,7122 7200A
Measuring range:(1-1000)MΩ
Basic accuracy:±(2%of setting+2 dgts) Voltage≥500V DC
Basic accuracy:±(5%of setting+2 dgts) Voltage≥500V DC
Measuring range:(1000-9999)MΩ
Basic accuracy:±(5%of setting+2 dgts) Voltage≥500V DC
Basic accuracy:±(10%of setting+2 dgts) Voltage≥500<DC
Measuring range:(5000-9999)MΩ Reference value
|
||||
|
LCD
|
1 16*2 LCD
|
||||
|
Test time
|
0.1~999.9s5V ±(2%+0.05sec)
|
||||
|
Remote control
|
Input:Test,Reset Output:Pass,Fail,Test-in-Proess
|
||||
|
Test alarm
|
Buzzer, light
|
||||
|
Correction methods
|
Software Calibration
|
||||
|
Memory device
|
Can remember the voltage, current, resistance, and time settings
|
||||
|
temperature/humidity
|
0C~40C≤75%RH
|
||||
|
Dimensions / Weight
|
W×H×D:280mm×100mm×370mm / 10kg
|
||||
|
standand acctachment
|
26002A
|
||||
