Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Millart
-
Model Number:
-
Z3040
-
Voltage:
-
As customer request
-
Dimension(L*W*H):
-
1535x600x1780mm
-
Power (kW):
-
2.2
-
Weight (KG):
-
1300 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-

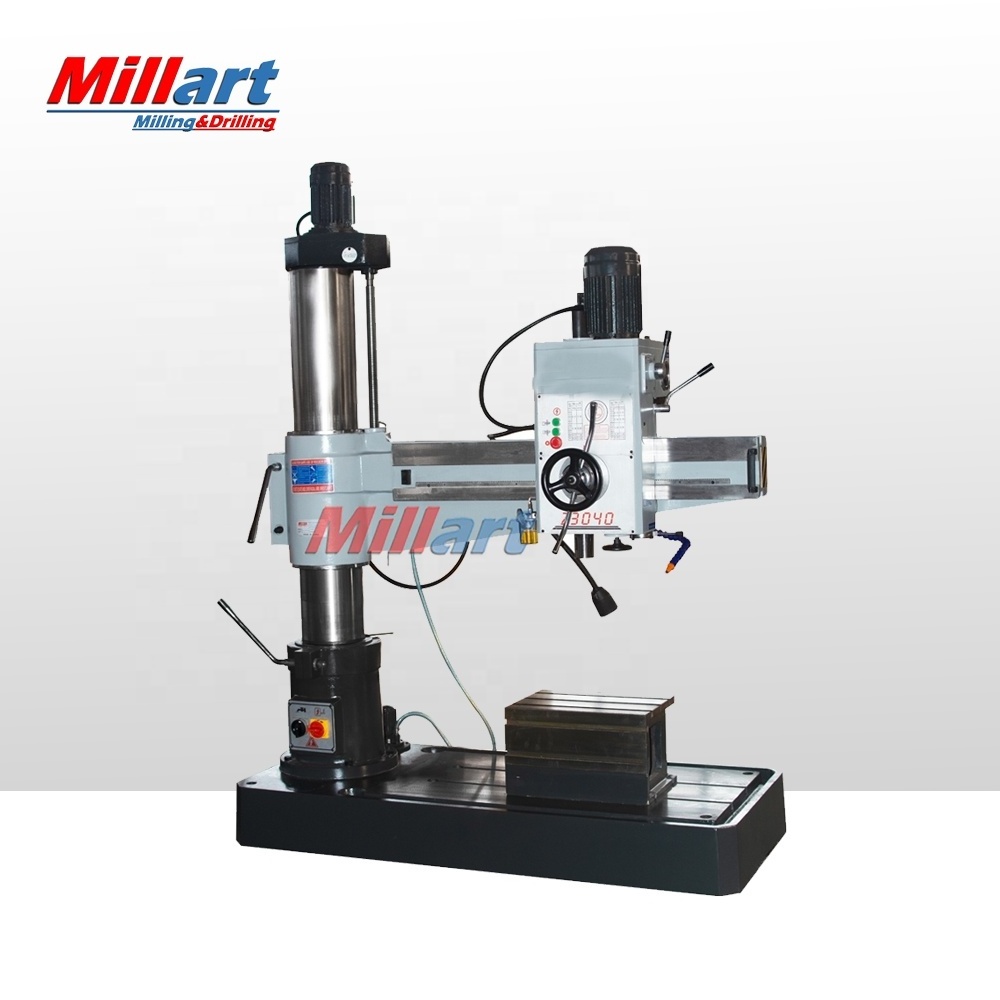

Radial Drilling Machine
-
Model:
-
Z3040
-
Color:
-
Customizable
-
Max. drilling capacity:
-
40 mm
-
Spindle travel:
-
200 mm
-
Spindle taper:
-
MT4
-
Spindle speed steps:
-
6 steps
-
Motor power:
-
2.2kw
-
Lifting motor power:
-
0.75 kw
-
Weight:
-
1300kg
Quick Details
-
type:
-
Radial Drilling Machine
-
Max. Drilling Dia. (mm):
-
40
-
Range of Spindle Speed(r.p.m):
-
75 - 1200 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Millart
-
Model Number:
-
Z3040
-
Voltage:
-
As customer request
-
Dimension(L*W*H):
-
1535x600x1780mm
-
Power (kW):
-
2.2
-
Weight (KG):
-
1300 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Radial Drilling Machine
-
Model:
-
Z3040
-
Color:
-
Customizable
-
Max. drilling capacity:
-
40 mm
-
Spindle travel:
-
200 mm
-
Spindle taper:
-
MT4
-
Spindle speed steps:
-
6 steps
-
Motor power:
-
2.2kw
-
Lifting motor power:
-
0.75 kw
-
Weight:
-
1300kg
The large weight and stiff construction of the drill ensures stability and vibration free operation
The cube table ensures easy adjustment and filling of the workpiece
Height adjustment of the arm by motor
Control panel located on the front of the drill for better performance and ergonomics
The polished surface of the column ensures easy, free and precise travel of the arm
Drill equipped with manual blocking of the head and arm of the column
The large speed range ensures precise and fast processing
|
Model |
Z3040x13 |
|
Max. drilling capacity |
40 mm |
|
Distance from spindle to column |
360 - 1300mm |
|
Distance from spindle to table |
260 - 1300 mm |
|
Spindle travel |
200 mm |
|
Spindle taper |
MT4 |
|
Spindle speed |
75-1200 rpm |
|
Spindle speed steps |
6 steps |
|
Spindle feed |
0.1 0.16 0.25 mm/r |
|
Rocker rotary angle |
360 degree |
|
Motor power |
2.2 kw |
|
Lifting motor power |
0.75 kw |
|
Dimensions |
1535x600x1780 mm |
|
Weight |
1300kg |
Standard accessories:
Box type worktable
Drill chuck
Taper sleeve
Tools
Optional accessories:
Spindle guard
Machine vise
