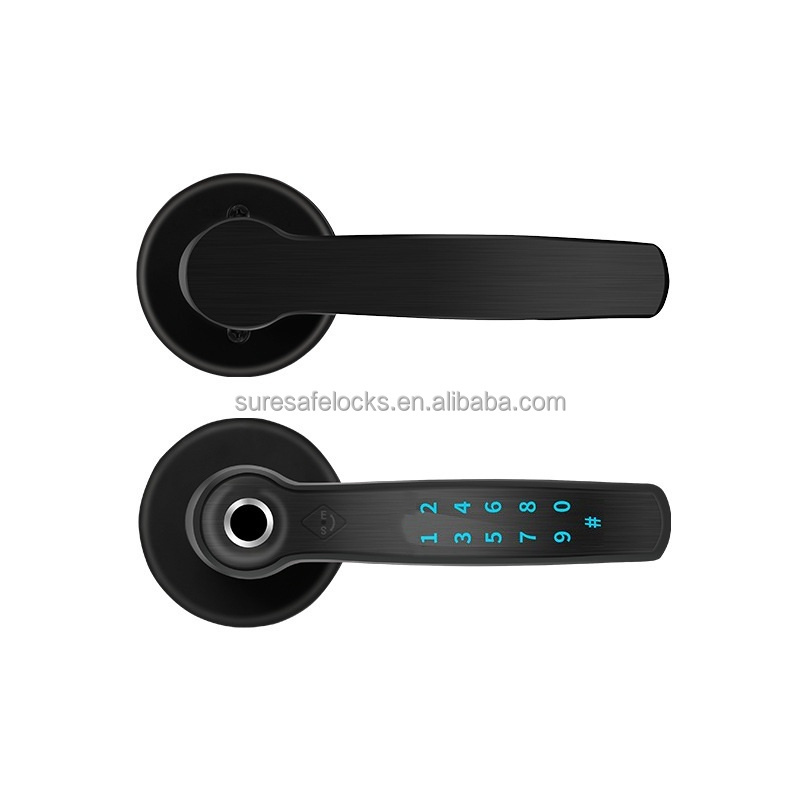

TTLOCK APP Electronic Smart Fingerprint Scanner lever handle Password Door Lock

Product Description

TTLOCK APP Electronic Smart Fingerprint Scanner lever handle Password Door Lock

Main Features:

5 Unlock Ways :

1. Phone APP Unlock (via Blue, or add Gateway to realize remote open )

2. Fingerprint Unlock

3. Password Unlock

4. Metal Key

5. AI Voice (Alexa and Google Home, need add gateway)

Parameter:

Unlock ways: Fingerprint, TT LOCK APP, WIFI, Passcode , Mechnical key, Al Alexa and google home

Material: 304 stainless steel panel, zinc alloy handle

Color: silver, black with Red bronze

Suitable for: wooden doors, aluminum doors

Data Capacity: 110pcs fingerprint

Reader Item SIZE: 150mm*65mm*40mm

Weight: 1.5kgs

Certification: CE/ROHS

Working Voltage: 6V(4*AAA batteries)

Applicable for door thickness:

Standard Edition 30mm-55mm

Custom Edition 30mm-100mm

Applicable for door frame wideness: 50mm or above

Handle Reversible: Yes

Available Mortise: 60 or 70 single latch

Working Temperature: -20~70℃

Battery life span: support 100000 times unlock operations

Specifications :

1. Weight :	1.5 KGS
2. Size :	150 x 25 MM for handle, 70 x 70MM for panel
3. Static Load :	< 11Ua
4. Working Load :	100Ma-150Ma
5. Humidity :	10%-95%
6. Working Tempreture :	-20℃~70℃
7. Material :	Stainless steel and Zinc Alloy
8. Surface Treatment :	Chrome & Black
9. Mortise :	Single Latch
10. Identification Time	<0.1S
11. Unlock Ways :	Fingerprint + Code + Key + TTLOCK APP + AI Voice
12. Override Mechanical Key :	2 PCS For Each Lock, or Master Key For All Locks.
13. User Capacity :	100 Fingerprint users + 100 Password users
14. Power :	4 AAA batteries / 6V.  18 Monthes' Duration
15.Low Battery Warning :	Lower Than 4.8 V , can still use 100 times
16. Application	Apartment ,office, airbnb or House door
17. Certificates :	CE, FCC, ISO9001

Use 4pcs AAA 1.5V battery. (battery not include);

Support low power warning. Battery box in front handle. :

Lock Dimensions :

Easy Installtion:

Suitable for the door thickness 30-50mm, if your door is thicker, please contact us.

Both for wooden door and metal door and so on.

Latch size:

the latch can be adjusted to 60 or 70 mm freely.

With the gateway can work with the Alexa and Google Assistant

If not with gateway, the lock connect with the lock via Blue, it can manage the lock within the Blue arange, and also can make the Temporary password to the guest open lock remotely by phone APP. If with gateway, can connect with wifi, work with Alexa and Google Assistant. Control the lock remotely via internet.

About the mobile APP / TTLOCK

All the lock setting are in the TTLOCK APP, so it is very easy to use the lock.Only the Admind phone that can manage the lock, but you can authorized to your family as the admin that they also can manage the lock by his phone
