Quick Details
-
Model Number:
-
GG-LM501-P100-RGB
-
Usage:
-
Outdoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Screen Dimension:
-
customized
-
Pixels:
-
50mm
Quick Details
-
Application:
-
Indoor, Outdoor
-
Brand Name:
-
GG Brand
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
GG-LM501-P100-RGB
-
Usage:
-
Outdoor
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Screen Dimension:
-
customized
-
Pixels:
-
50mm
Soft and flexible LED mesh screen for building/facade/stage/shows, led mesh screen, led mesh creen light RGB,
Soft and flexible LED mesh screen
IP 66, suitable for permanent outdoor or indoor use.
Customized pixel pitch
Specification:
| Product name | Flexible Grid mesh led screen | |||
| Item NO. | GG-LM501-P40-RGB | GG-LM501-P50-RGB | GG-LM501-P80-RGB | GG-LM501-P100-RGB |
| Pixel density | 1024pix/m² | 625pix/m² | 400pix/m² | 100pix/m² |
| Power | 300Watt/m2 | 200Watt/m2 | 120Watt/m2 | 30Watt/m2 |
| Pitch | 30mm | 40mm | 80mm | 100mm |
| WB brightness | 2400cd | 2000cd | 1500cd | 800cd |
| Refresh rate: | >1100Hz | |||
| Frame rate: | 15Hz~75Hz | |||
| Drive mode: | Static,constant current | |||
| Pixel LED Type | SMD5050 IC built-in RGB full color | |||
| Color | RGB full color | |||
| Input voltage | DC5V | |||
| working temperature | -35-50 | |||
| humidity | RH10-90% | |||
| Lifespan | ≥50000Hrs | |||
| led type | SMD5050 | |||
| IP degree | IP66 | |||
| Certificate | CE & RoHS | |||
| Brand name | GG&OEM | |||
| Control system | SD card off-line or computer on-line system specialized for the grid screen | |||
YM Soft and flexible LED mesh screen for building/facade/stage/shows
Overview:

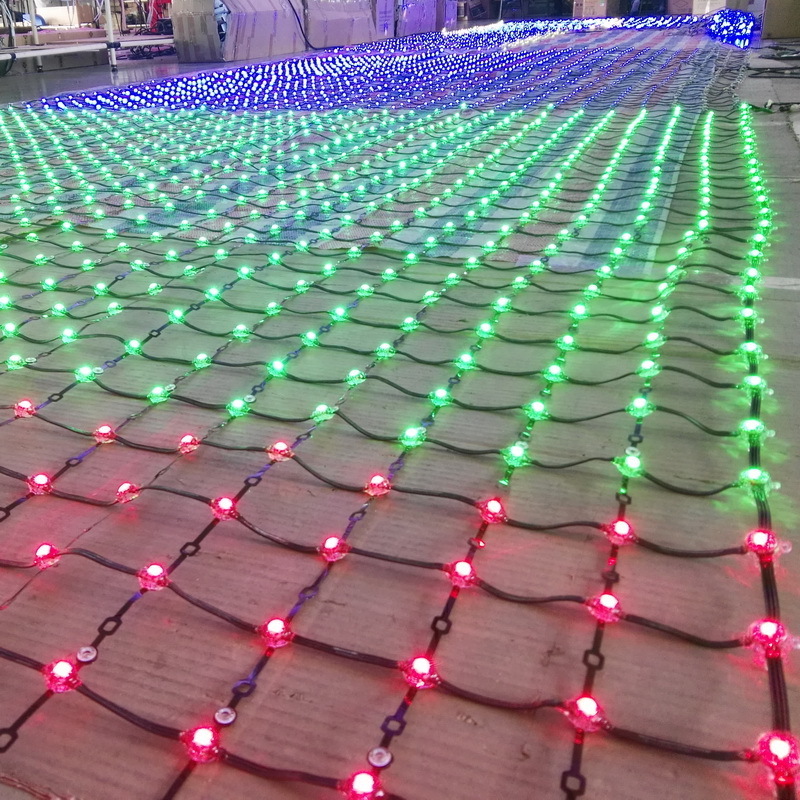

LED mesh screen is composed of a kind of lightweight soft and flexible LED pixel light, which could also gather together to be the transparent full color display system by convenient accessories. Its features are flexible installation, light weight, highly transparent, which are adapted to various kinds of installation, such as bend, fold, winding, swing, etc.. It is high artistry and creativity that can be free to assemble into various shapes.
Main Features:
- IP 66, suitable for permanent outdoor or indoor use.
- The pixel pitch could be customer-made.
- Rich installation accessories, flexible installation, adapting to different scenarios.
- High permeability, go through light, air and smoke easily.
- We could achieve the flexible application of dot, line and face.
- No need to worry about the limitation of the application, we could achieve kinds of dysmorphism and test count.
- It is best choice for the creative design company to achieve easier design and various applications by one product.
Wiring:
Applications:
- LED video technology integrate with stage design;
- Ceiling for clubs, bars, hotels, and super malls;
- Concert's background stage lighting;
- Architectures decoration;
- both for indoor and outdoor.
