Quick Details
-
Brand Name:
-
TJBC
-
Model Number:
-
MS01E
-
Model:
-
MS01E
-
Brand:
-
TJBC
-
TYPE:
-

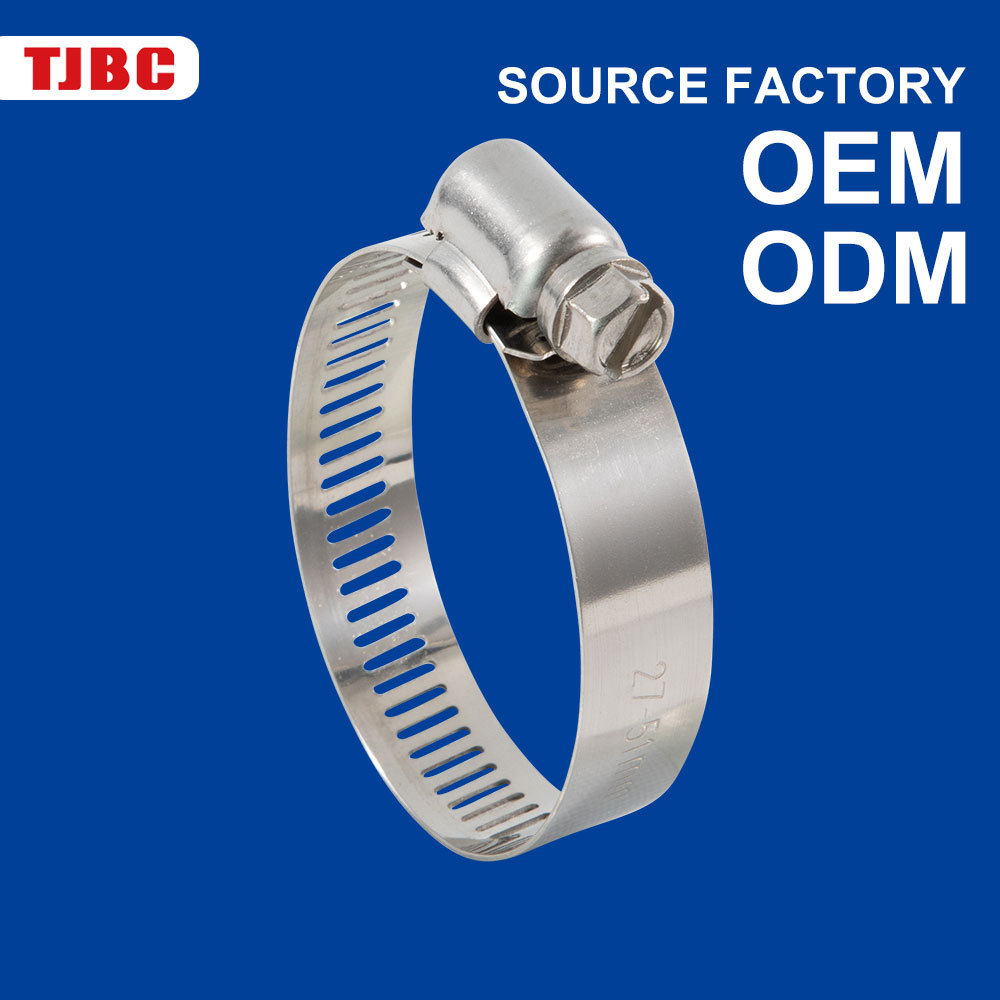

American type hose clamp
-
Nominal diameter:
-
11-20/157-178
-
Fastening diameter:
-
11-20/157-178
-
Texture of material:
-
zinc plated steel/stainless steel
-
Scope of application:
-
auto parts
-
surface treatment:
-
Galvanized
-
Certification:
-
ISO/TUV/BSCI/IATF
Quick Details
-
Measurement system:
-
INCH, Metric
-
Material:
-
Stainless steel
-
Place of Origin:
-
Tianjin, China, Tianjin
-
Brand Name:
-
TJBC
-
Model Number:
-
MS01E
-
Model:
-
MS01E
-
Brand:
-
TJBC
-
TYPE:
-
American type hose clamp
-
Nominal diameter:
-
11-20/157-178
-
Fastening diameter:
-
11-20/157-178
-
Texture of material:
-
zinc plated steel/stainless steel
-
Scope of application:
-
auto parts
-
surface treatment:
-
Galvanized
-
Certification:
-
ISO/TUV/BSCI/IATF
| 12.7mm perforated and interlock design hose clamp | ||||||||
| SAE no | Size | ItemNO | pcs/bag | pcs/carton | ||||
| mm | inch | W1 | W2 | W4 | W5 | |||
| 6 | 11-20 | 0.44"-0.78" | MS01A6 | MS01B6 | MS01D6 | MS01E6 | 100 | 1000 |
| 8 | 13-23 | 0.5"-0.91" | MS01A8 | MS01B8 | MS01D8 | MS01E8 | 100 | 1000 |
| 10 | 14-27 | 0.56"-1.06" | MS01A10 | MS01B10 | MS01D10 | MS01E10 | 100 | 1000 |
| 12 | 18-32 | 0.69"-1.25" | MS01A12 | MS01B12 | MS01D12 | MS01E12 | 50 | 1000 |
| 16 | 21-38 | 0.81"-1.5" | MS01A16 | MS01B16 | MS01D16 | MS01E16 | 50 | 1000 |
| 20 | 21-44 | 0.81"-1.75" | MS01A20 | MS01B20 | MS01D20 | MS01E20 | 50 | 500 |
| 24 | 27-51 | 1.06"-2" | MS01A24 | MS01B24 | MS01D24 | MS01E24 | 50 | 500 |
| 28 | 33-57 | 1.31"-2.25" | MS01A28 | MS01B28 | MS01D28 | MS01E28 | 50 | 500 |
| 32 | 40-64 | 1.56"-2.5" | MS01A32 | MS01B32 | MS01D32 | MS01E32 | 50 | 500 |
| 36 | 46-70 | 1.81"-2.75" | MS01A36 | MS01B36 | MS01D36 | MS01E36 | 50 | 500 |
| 40 | 50-76 | 2"-3" | MS01A40 | MS01B40 | MS01D40 | MS01E40 | 20 | 500 |
| 44 | 59-83 | 2.31"-3.25" | MS01A44 | MS01B44 | MS01D44 | MS01E44 | 20 | 500 |
| 48 | 65-89 | 2.56"-3.5" | MS01A48 | MS01B48 | MS01D48 | MS01E48 | 20 | 500 |
| 52 | 72-95 | 2.81"-3.75 | MS01A52 | MS01B52 | MS01D52 | MS01E52 | 20 | 500 |
| 56 | 78-102 | 3.06"-4" | MS01A56 | MS01B56 | MS01D56 | MS01E56 | 10 | 250 |
| 60 | 84-108 | 3.31"-4.25" | MS01A60 | MS01B60 | MS01D60 | MS01E60 | 10 | 250 |
| 64 | 91-114 | 3.56"-4.5" | MS01A64 | MS01B64 | MS01D64 | MS01E64 | 10 | 250 |
| 72 | 103-127 | 4.06"-5" | MS01A72 | MS01B72 | MS01D72 | MS01E72 | 10 | 250 |
| 80 | 117-140 | 4.62"-5.5" | MS01A80 | MS01B80 | MS01D80 | MS01E80 | 10 | 250 |
| 88 | 130-152 | 5.12"-6" | MS01A88 | MS01B88 | MS01D88 | MS01E88 | 10 | 250 |
| 96 | 141-165 | 5.56"-6.5" | MS01A96 | MS01B96 | MS01D96 | MS01E96 | 10 | 250 |
| 104 | 157-178 | 6.18"-7" | MS01A104 | MS01B104 | MS01D104 | MS01E104 | 10 | 250 |
|
Material |
Band |
Housing |
Screw |
suggested install torque |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | 3.8Nm |
| W2 | AISI 201SS/301SS | AISI 201SS/302SS | Zinc plated steel | 6Nm |
|
W2B |
AISI 201SS | Zinc plated steel | Zinc plated steel | |
| W4 | AISI 201SS/301SS/304SS | AISI 201SS/301SS/304SS | AISI 201SS/301SS/304SS | |
| W5 | AISI 316SS | AISI 316SS | AISI 316SS |
