2Inch 3.5Inch 4.3
Inch 5Inch 7
Inch 8Inch 10.1
Inch
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Smart wear
-
Interface:
-
RGB 40PIN
-
Product Name:
-

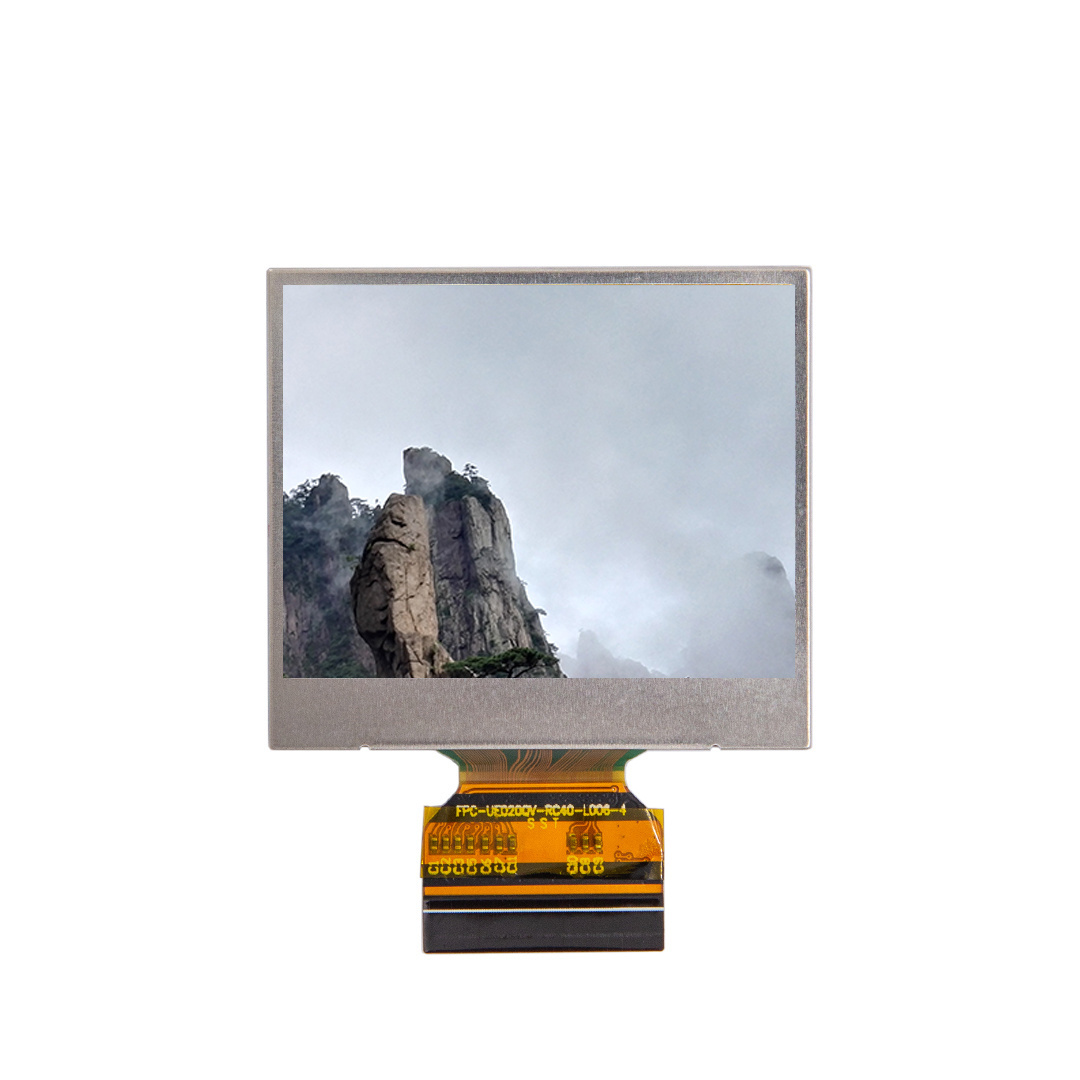

2 Inch LCD 320x240 SPI RGB TFT LCD Display
-
Brand:
-
VIEWE
-
Size:
-
2 Inch
-
Resolution:
-
320(W)*3(RGB)*240(H)
-
Pixel Arrangement:
-
RGB Vertical Stripe
-
Interface Mode:
-
RGB 40PIN
-
Operating Temperature:
-
-20~60°C
-
Storage Temperature:
-
-30~70°C
-
Module Size:
-
46.22(W)*41.03(H)*2.6(D)
-
Active Area:
-
40.82(W)*30.62(H)
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
VIEWE
-
Model Number:
-
UE020QV-RC40-L003
-
Application:
-
Smart wear
-
Interface:
-
RGB 40PIN
-
Product Name:
-
2 Inch LCD 320x240 SPI RGB TFT LCD Display
-
Brand:
-
VIEWE
-
Size:
-
2 Inch
-
Resolution:
-
320(W)*3(RGB)*240(H)
-
Pixel Arrangement:
-
RGB Vertical Stripe
-
Interface Mode:
-
RGB 40PIN
-
Operating Temperature:
-
-20~60°C
-
Storage Temperature:
-
-30~70°C
-
Module Size:
-
46.22(W)*41.03(H)*2.6(D)
-
Active Area:
-
40.82(W)*30.62(H)
Products Description
Landscape
LCD Display
|
Size
|
LCM Model
|
Resolution
|
Active Area
|
Outline
|
Brightness (cd/㎡)
|
Interface
|
Operating Temprature
|
|
2.0
|
UE020WV-UB40-L011B
|
480*360
|
40.8*30.6
|
46.16*41.02
|
1100
|
RGB 40PIN
|
-20°~70°
|
|
3.5
|
UEW035WVG-RF54-L038A
|
640*480
|
70.08*52.56
|
76.30*63.3
|
800
|
RGB 54PIN
|
-20°~70°
|
|
4.3
|
UE043WV-RB40-L039
|
800*480
|
95.04*53.86
|
105.50*67.2
|
300
|
RGB 40PIN
|
-30°~85°
|
|
5.0
|
UE050WV-RB40-L091A
|
800*480
|
108*64.80
|
120.70*75.80
|
300
|
RGB 40PIN
|
-30°~85°
|
|
7.0
|
UE070WS-RN40-L090A
|
1024*600
|
154.21*85.92
|
164*97
|
300
|
RGB 40PIN
|
-20°~70°
|
|
8.0
|
UE080SX-AN40-L017
|
1024*768
|
162.05*121.54
|
174.3*135.5
|
700
|
LVDS 40PIN
|
-20°~70°
|
|
10.1
|
UE101WX-AB40-L036A
|
1280*800
|
216.96*135.6
|
229.46*149.1
|
600
|
LVDS 40PIN
|
-20°~60°
|
Product Paramenters
Front
Back
size
Size can be customized according to users' needs.
Design drawings
High Contrast/ High Brightness
Sophisticated science and technology, researchand development, production of uniformbrightness and color, to ensure the restorationof high-definition quality
Circuit Protection Design
Unique anti-static design to protect yourproducts working well even in bad environ-ment.
Reliability
Light And Thin
Thickness is 3.3 mmThin and strong, extremely space -saving
Light And Thin
Thickness is 3.3 mmThin and strong, extremely space -saving
Focus On Production AndQuality Assuranc
Low power consumption ,anti scratchesto 9H, long life to 50000h
IPS 180°
angle of view
Application scenarios
Our Advantages
ECO Display Operates Well under Extreme Temperatures -20°C~70°C Morc application environment than E-papcr
