Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
IEC EC ROHS SONCAP PVOC COC SASO FCC
-
Warranty:
-
2YEARS
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BR SOLAR
-
Model Number:
-
BR--3KW
-
Output Voltage (V):
-
110V/220V/230V
-
Output Frequency:
-
Pure Sine Wave
-
Work Time (h):
-
24h
-
Product name:
-

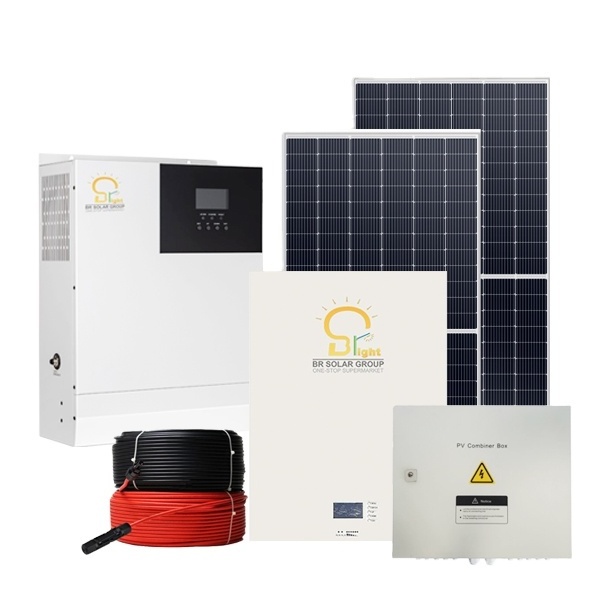

3KW Inverter Solar Power Systems with Solar Panel Kit
-
Type:
-
Off-grid System
-
Controller:
-
MPPT Solar Charge Controller
-
Inverter:
-
Pure Sine Wave
-
Solar Panel:
-
Poly/Mono
-
Protection:
-
Overloads
-
Battery:
-
lithium Battery
-
Name:
-
Solar Power Home System
-
Color:
-
Request
-
Keyword:
-
3KW/48VDC Inverter
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
IEC EC ROHS SONCAP PVOC COC SASO FCC
-
Warranty:
-
2YEARS
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BR SOLAR
-
Model Number:
-
BR--3KW
-
Output Voltage (V):
-
110V/220V/230V
-
Output Frequency:
-
Pure Sine Wave
-
Work Time (h):
-
24h
-
Product name:
-
3KW Inverter Solar Power Systems with Solar Panel Kit
-
Type:
-
Off-grid System
-
Controller:
-
MPPT Solar Charge Controller
-
Inverter:
-
Pure Sine Wave
-
Solar Panel:
-
Poly/Mono
-
Protection:
-
Overloads
-
Battery:
-
lithium Battery
-
Name:
-
Solar Power Home System
-
Color:
-
Request
-
Keyword:
-
3KW/48VDC Inverter
|
Item
|
Part
|
Specification
|
Quantity
|
Remarks
|
|
1
|
Solar panel
|
Mono Half Cell
BR-M550W Class A+,21.6% Efficiency |
4pcs
|
Class A+ Grade, 550W,TUV Certificate authorized by Germany
connection method:2strings x2 parallels daily power generation:9.3KWH 25 Years Design Lifespan |
|
2
|
Mounting Bracket
|
Hot-dip Galvanized Rooftop Mounting Brackets
|
1set
|
Rooftop Mouting Brackets Anti-Rust,Anti-Corrosion
,Anti-Salt Spray, wind resistance≥160KW/H 35 Years Design Lifespan |
|
3
|
Power Frequency Inverter
|
BR Bright Series All in one Inverter
BR-48V/3kw |
1set
|
1,AC input: 220VAC.
2,Support grid/Diesel Input. 3,Pure sine wave, power frequency output. 4,AC output: 220VAC, 50/60HZ (optional). 15 Years Design Lifespan |
|
4
|
lifepo4 battery 100ah 48v
|
6000TIMES DEEP CYCCLING
|
1pc
|
European Projects Standard 82.5KGS Design
Total release power:4.8KWH 12 Years Design Lifespan |
|
5
|
PV cables (solar panel to PV combiner box)
|
4mm2
|
60m
|
20 Years Design Lifespan
|
|
6
|
BVR Cables(PV combiner box to Controller)
|
6mm2
|
10m
|
|
|
7
|
BVR Cables(Controller to Battery)
|
16mm2
|
2sets
|
|
|
8
|
BVR Cables(Inverter to Battery)
|
25mm2
|
2sets
|
|
|
9
|
Connecting Cables
|
25mm2
|
4sets
|
|
|
10
|
Breaker
|
2P63A
|
1pc
|
|
|
11
|
Installation Tools
|
PV Installation Package
|
1 Package
|
FREE GIFTS
|
|
12
|
Extra Accessories
|
FREE CHANGING
|
1 SET
|
FREE GIFTS
|
